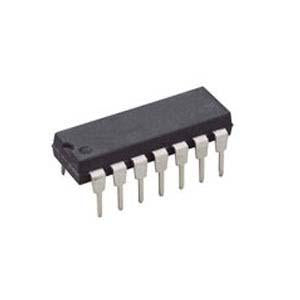

LOGIC - CMOS Phase Lock Loop

SKU: 1074HC4046

  • Sale
  • $1.28

Features:

  • Operating Frequency Range
    • Up to 18MHz (Typ) at VCC = 5V
    • Min. Center Frequency of 12MHz at VCC = 4.5V
  • Operating Power Supply Voltage Range
    • VCO Section . . . . 3V to 6V
    • Digital Section . . . 2V to 6V
  • Wide Operating Temperature Range . . . -55oC to 125oC
  • Excellent VCO Frequency Linearity
  • Minimal Frequency Drift
  • Balanced Propagation Delay and Transition Times
