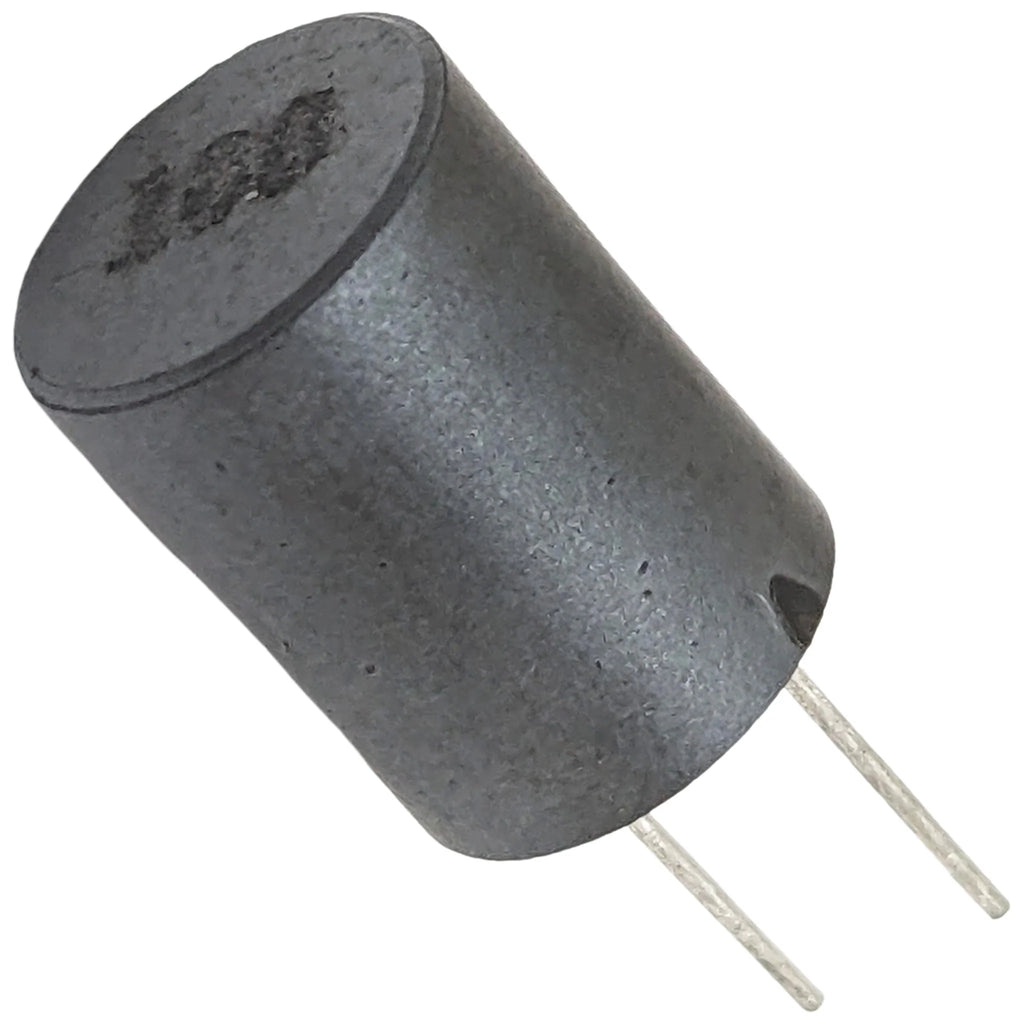

Encapsulated Radio Frequency Choke, 100 mH, 30 mA, 150 Ohms

SKU: 150100M

  • Sale
  • $1.05
  • Type: Radio Frequency Choke
  • Inductance: 100 mH
  • Maximum DC Current: 30 mA
  • Maximum DC Resistance: 150 Ohms
  • Termination: Through Hole
  • Electrical Specifications:
  • Inductance L: 100mH (±10%)
  • Test Frequency: 25.2 KHz
  • Q Min: 30
  • DCR Max: 150Ω
  • Wire Diameter: 0.08
  • Turns REF: 1590 TS

General Specifications:

  • Resistance to solder heat: 260°C 10 Sec.
  • Hand Soldering Temperature: 350°C ~ 400°C 3~5 Sec.

Size:

  • Diameter: 10.7mm
  • Height: 14.4mm (not including leads)
  • Lead length: 10mm
  • Distance between leads: 4.5mm

Datasheet
