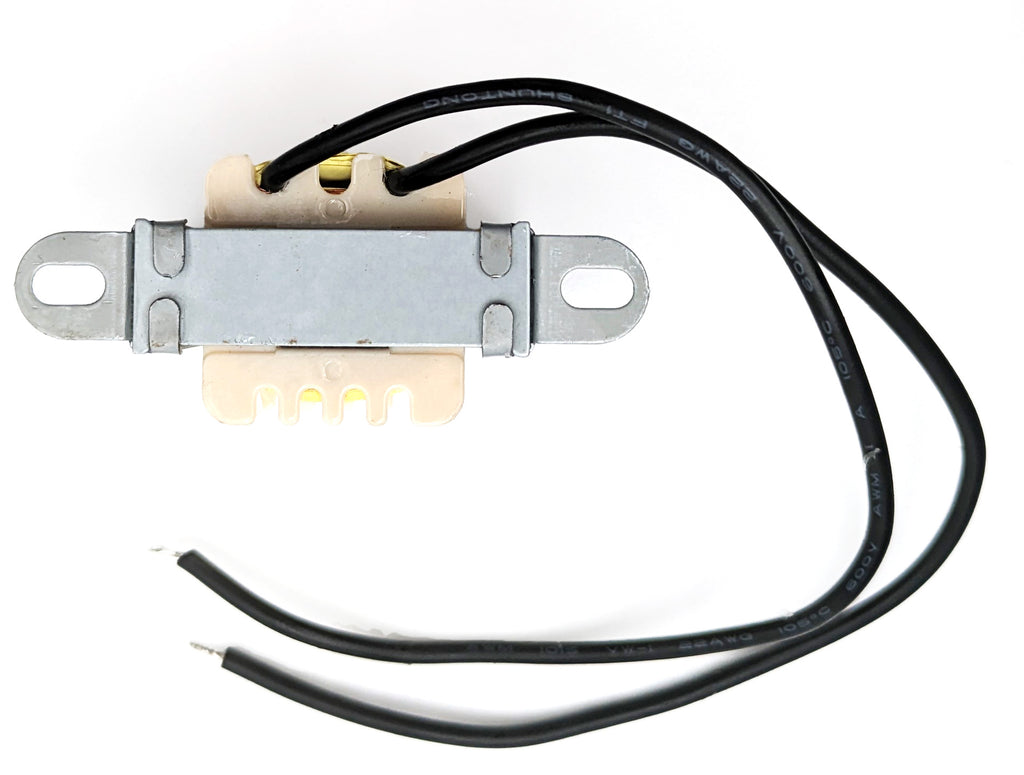

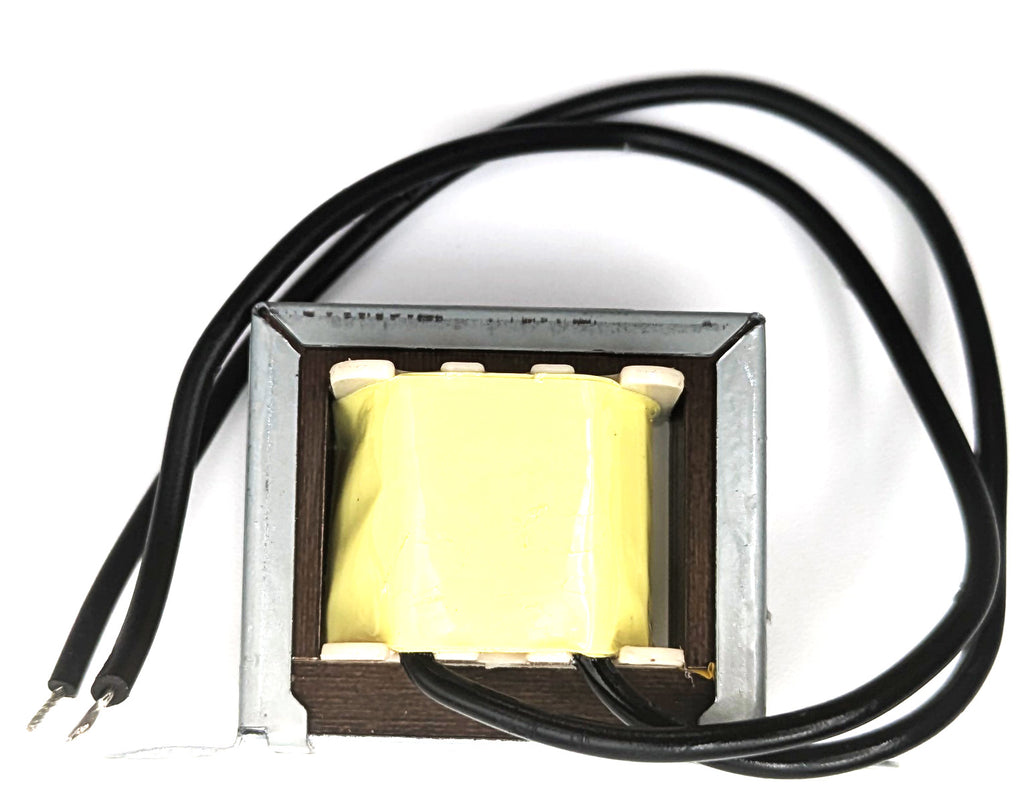

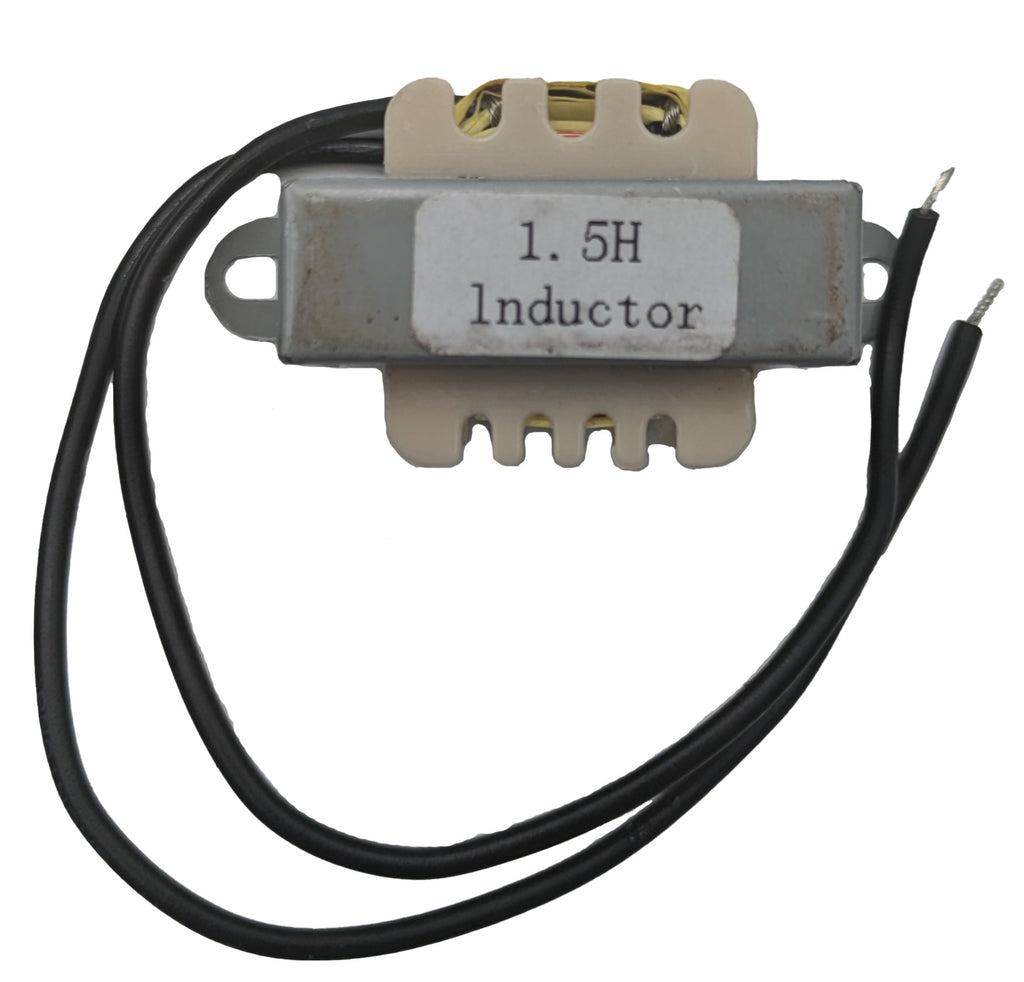

Economical "open bracket" - channel mount. Tolerance of 15% on both inductance & resistance. Inductances measured at rated D.C. current. Minimum 5" long leads. Units will exhibit less inductance at slightly higher currents or more inductance at lower currents. Perfect for high voltage power supply filtering. Every unit is Hipot tested (100%) at 1,500 VAC. Units are vacuum impregnated with polyurethane varnish for quiet and long life operation.
Specifications:
- Inductance: 1.5 H
- Maximum DC Current: 10 mA
- Maximum DC Resistance: 70 Ohms
- Common Mode Filter / Choke
- Tolerance: 15% on both inductance & resistance
- Perfect for high voltage power supply filtering
- Every unit is Hipot tested (100%) at 1,500 VAC
