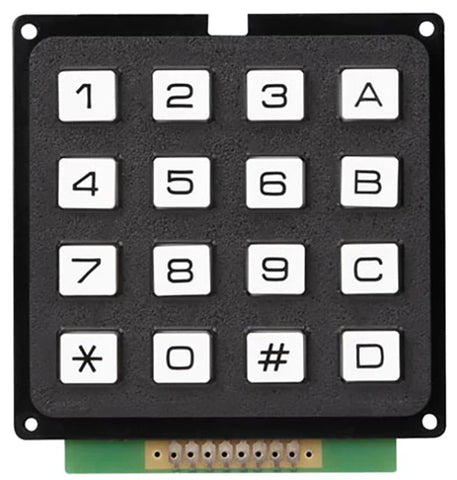

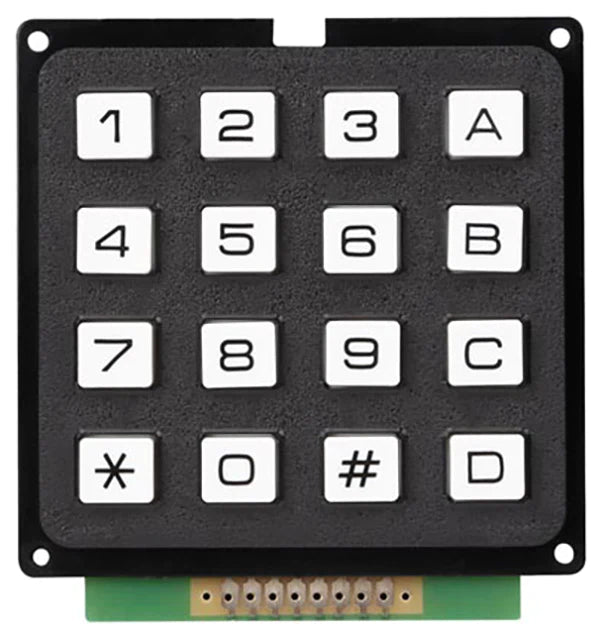

Keypad - 16 Button

SKU: 17KP1604

  • Sale
  • Regular price $6.25


  • Comes complete with .1" spacing header output for easy fit into breadboards.

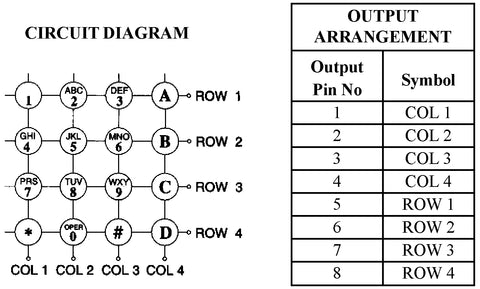

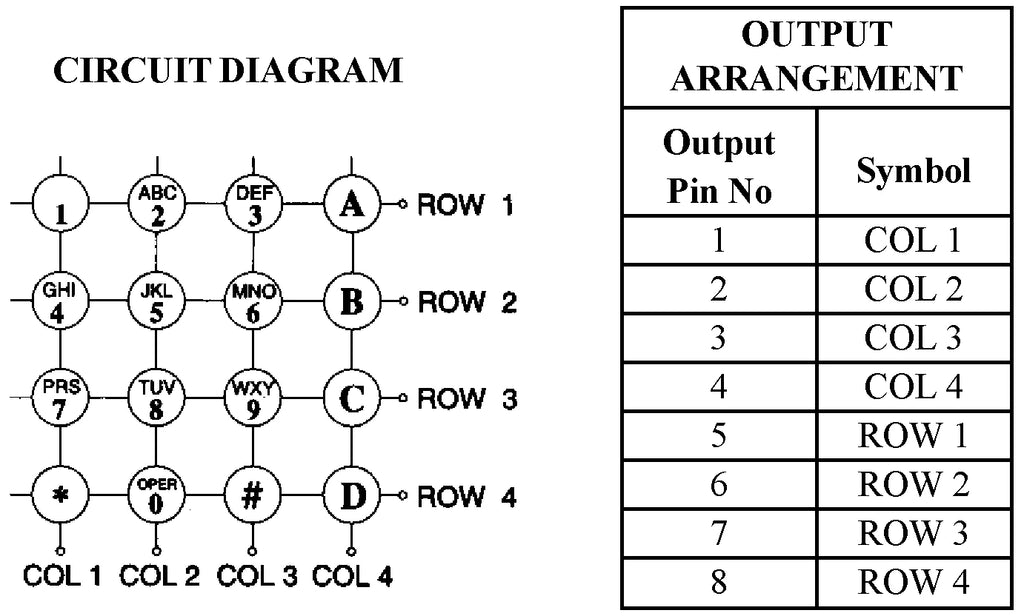

  • Matrix code pin-out comes with unit.

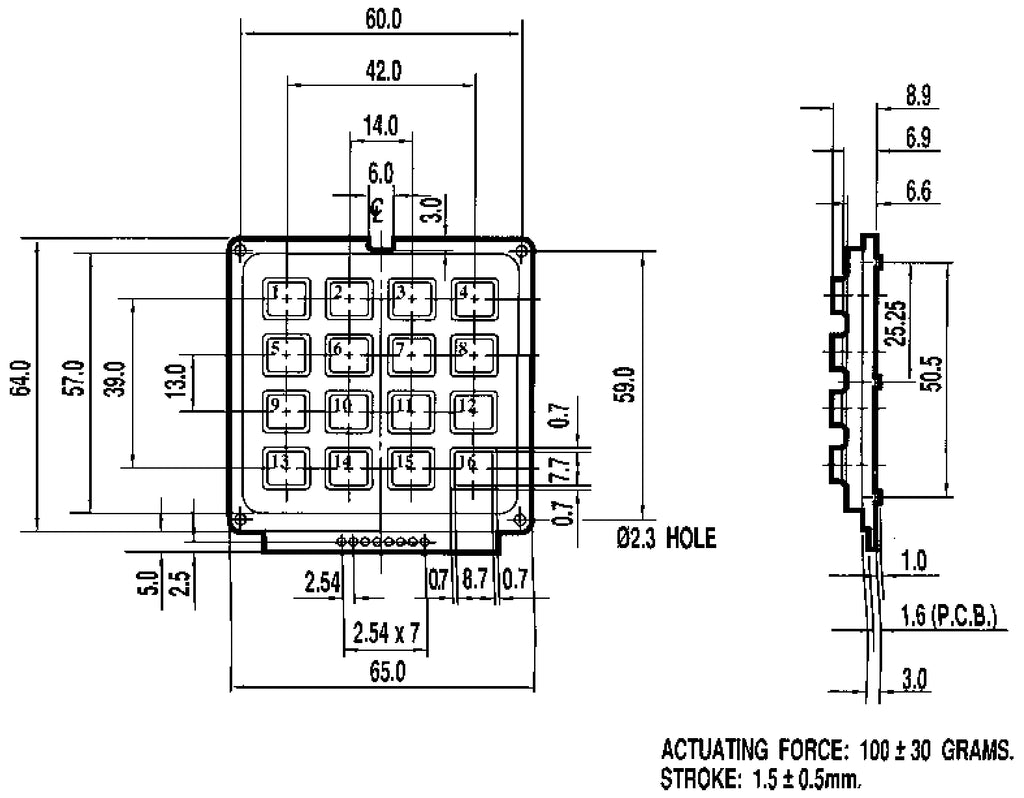

  • 3" x 2.8" x 0.6"
  • 1,000,000 life cycles per key.
  • 20 mA, 24V DC contact rating.
  • 200Ω (200 Ohms) max contact resistance.
  • Black with white keys.
