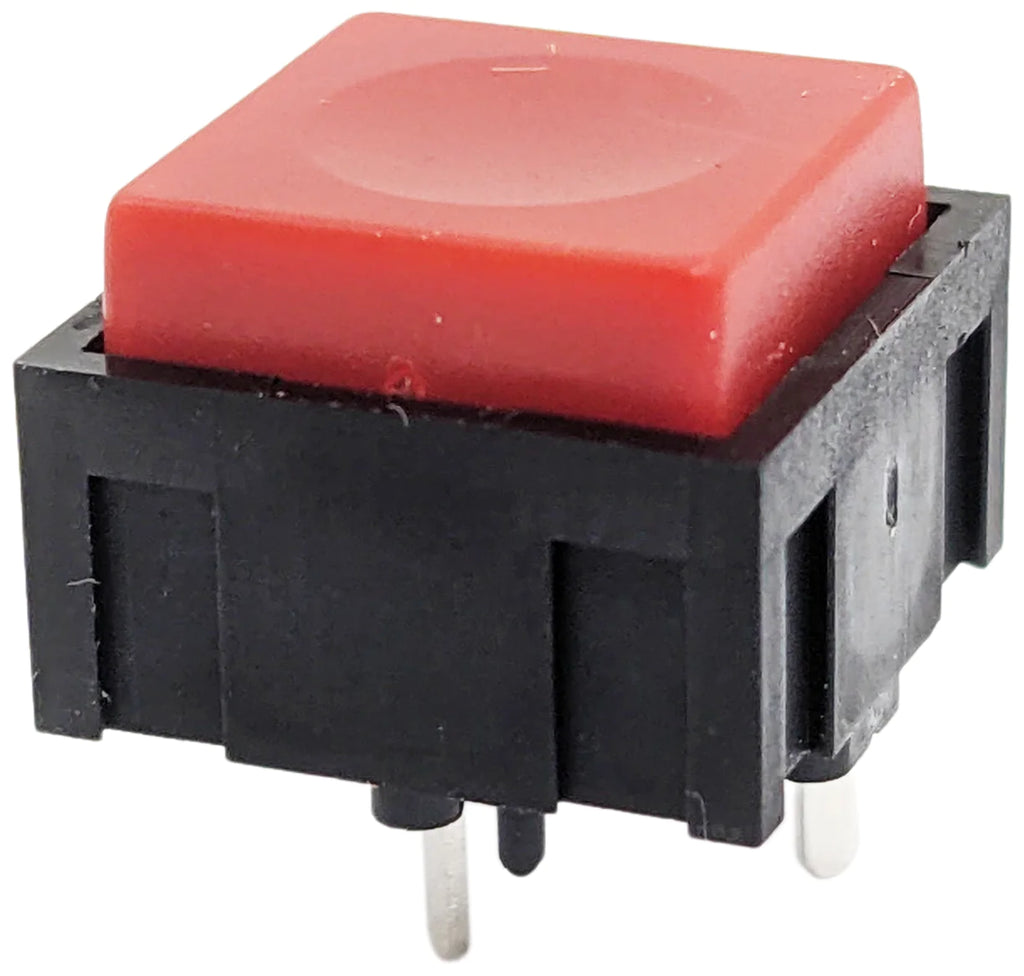

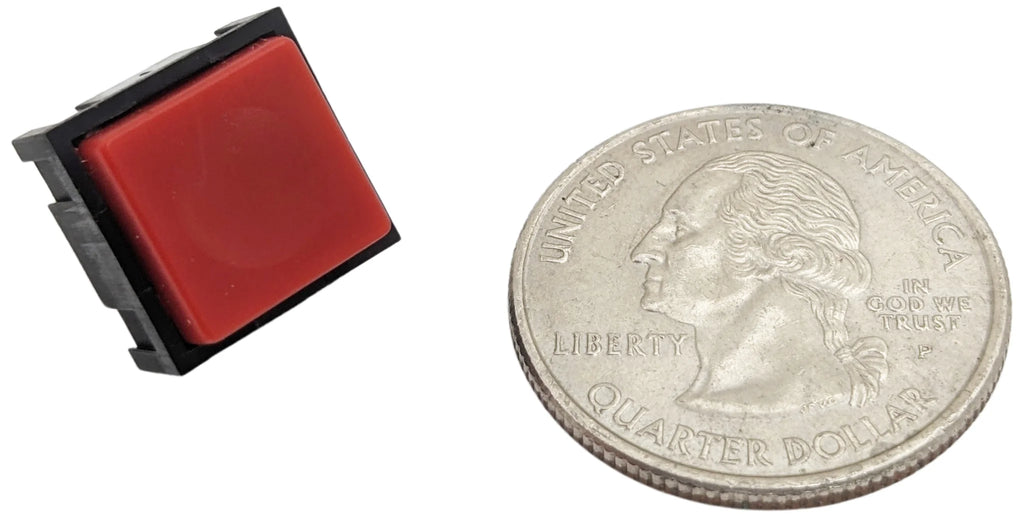

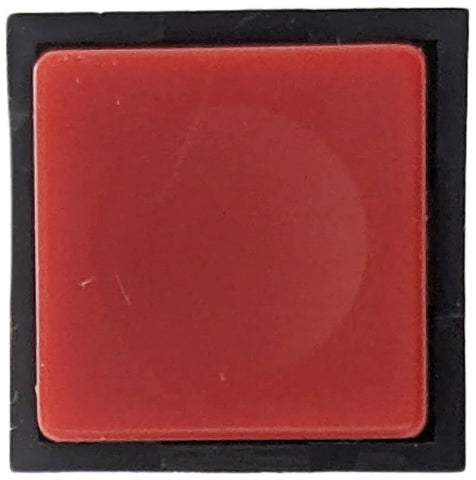

Momentary Switch SPST - Red Square Button (12.4mm x 12.4mm x 10.4mm)

• Square SPST switch

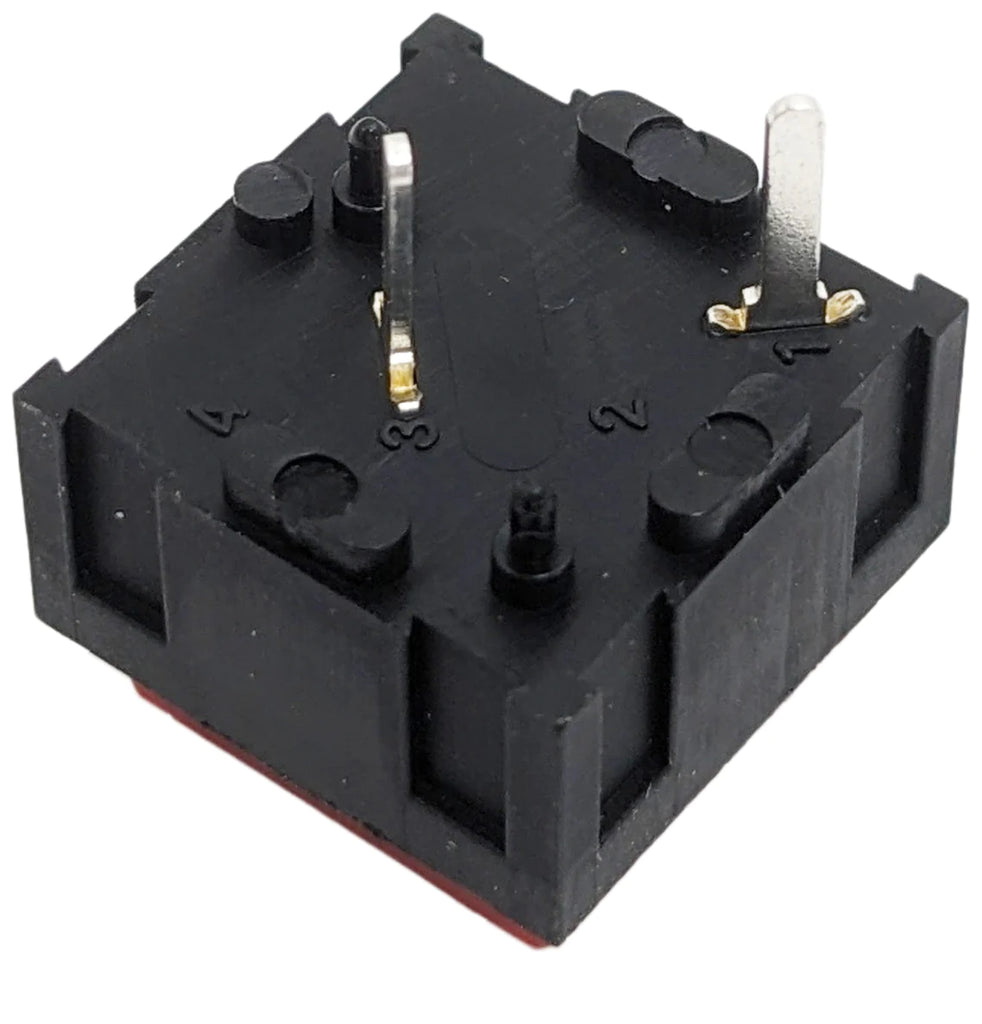

• Number of pins: 2
• Body color: Black
• Button color: Red
• Termination: PC Pins
• Measures 12.4mm x 12.4mm x 10.4mm (height not including leads)

Specifications:

• Rating: 1A 125VAC
• Insulation Resistance: 100MΩ min.
• Contact Resistance: 30mΩ max.
• Dielectric Strength: 500 VAC
• Electrical Life: 40,000 cycles
• Operating Force: 250±50g
