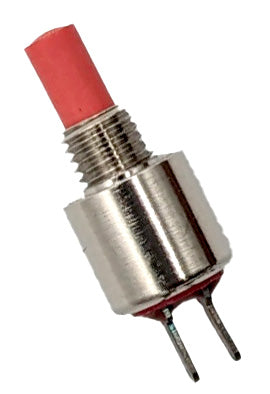

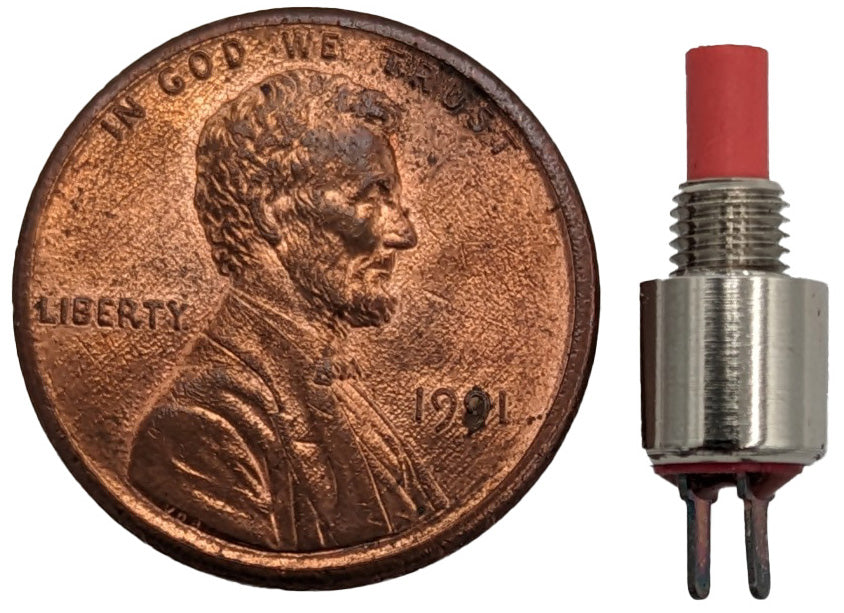

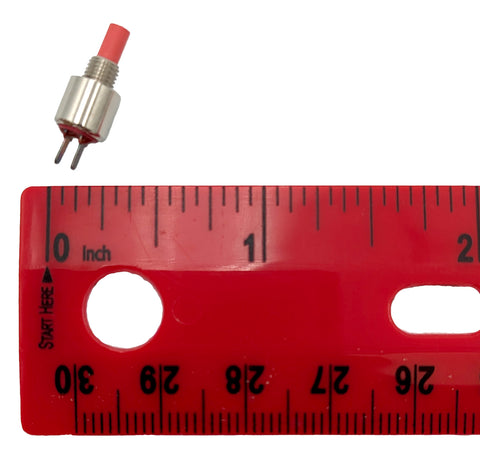

This pushbutton switch comes with microminiature size ideal for application where space is limited. This switch is perfect for Detection, Telecommunications and networking equipment, Computers and peripherals.
Features:
- Circuit: SPST
- Function: Off-Mom
Specifications:
- Contact Rating: Q: 500mA @120 VAC or 28 VDC
- Electrical Life: 6,000 make and break cycles at full load
- Contact Resistance: 20 mΩ max. initial @2-4 VDC,100 mA
- Insulation Resistance: 1,000 MΩ min.
- Dielectric Strength: 500 V RMS @ sea level.
- Operating Temperature: -30°C to 85°C
- RoHS Lead Free
Materials:
- Case: diallyl phthalate (DAP) (UL94V-0)
- Plunger: Glass filled Nylon (UL94V-0)
- Bushing: Copper alloy, nickel plated
- Contact & Terminal: Copper alloy, silver plated
Applications:
- IPC
- LED lighting
- Dual-in-line package circuits
- Test equipment
- Professional Audio gear
