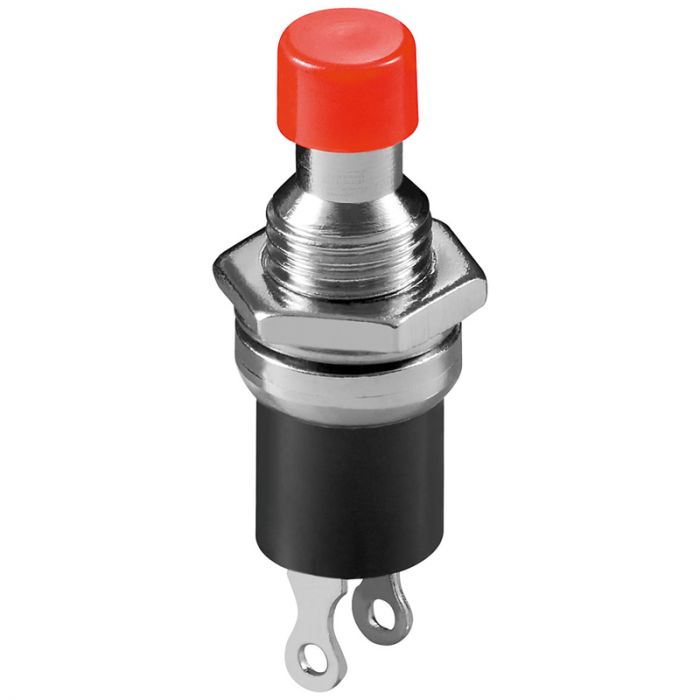

Momentary Switch - Normally Open Solder Lug - Red

• Normally Open
• Number of pins: 2
• Button color: Red
• Mounting: Panel Mount
• Termination: Solderable Lug

Specifications:

• Rating: 1A 125VAC
• Contact Resistance: 30mΩ max.
• Insulation Resistance: DC 500V 100 MΩ min.
• Dielectric Strengt: AC 1000V 1 minute
• Electrical Life: 30,000 cycles min
• Mechanical Life: 50,000 cycles min
• Terminal Material: Copper alloy, silver or gold plated

Datasheet
