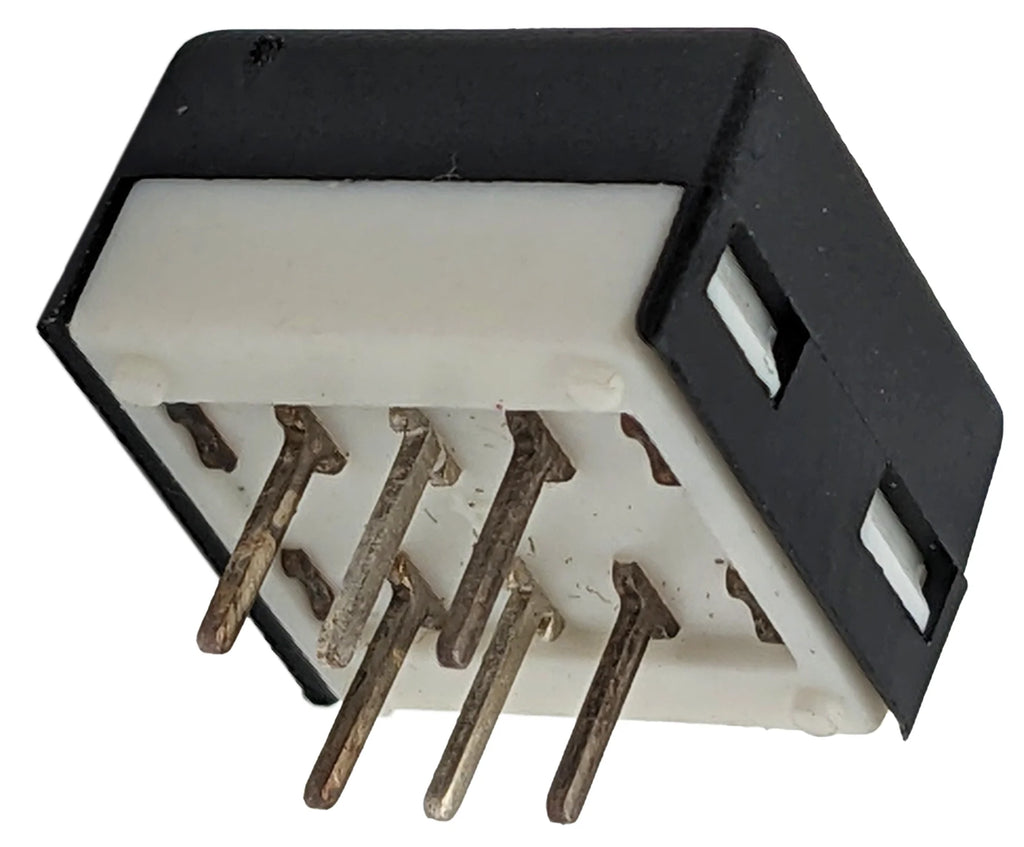

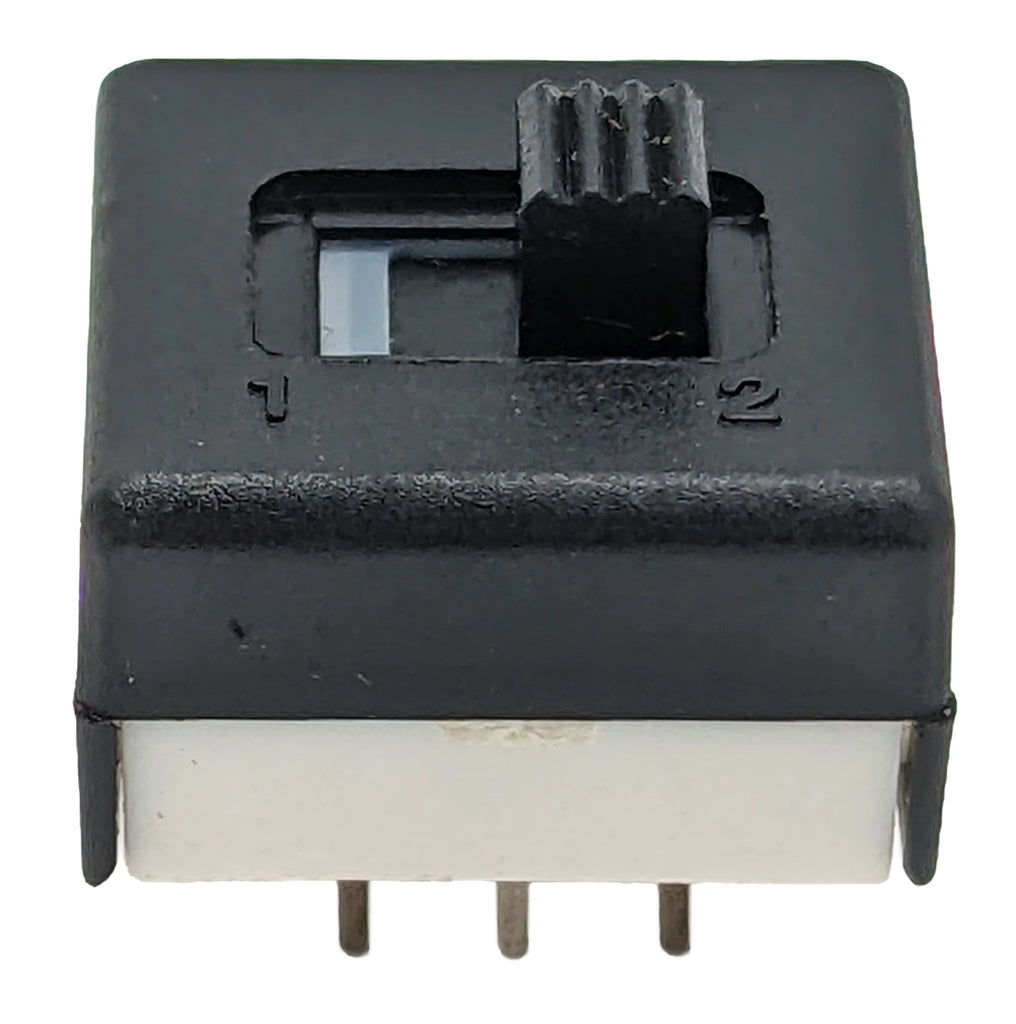

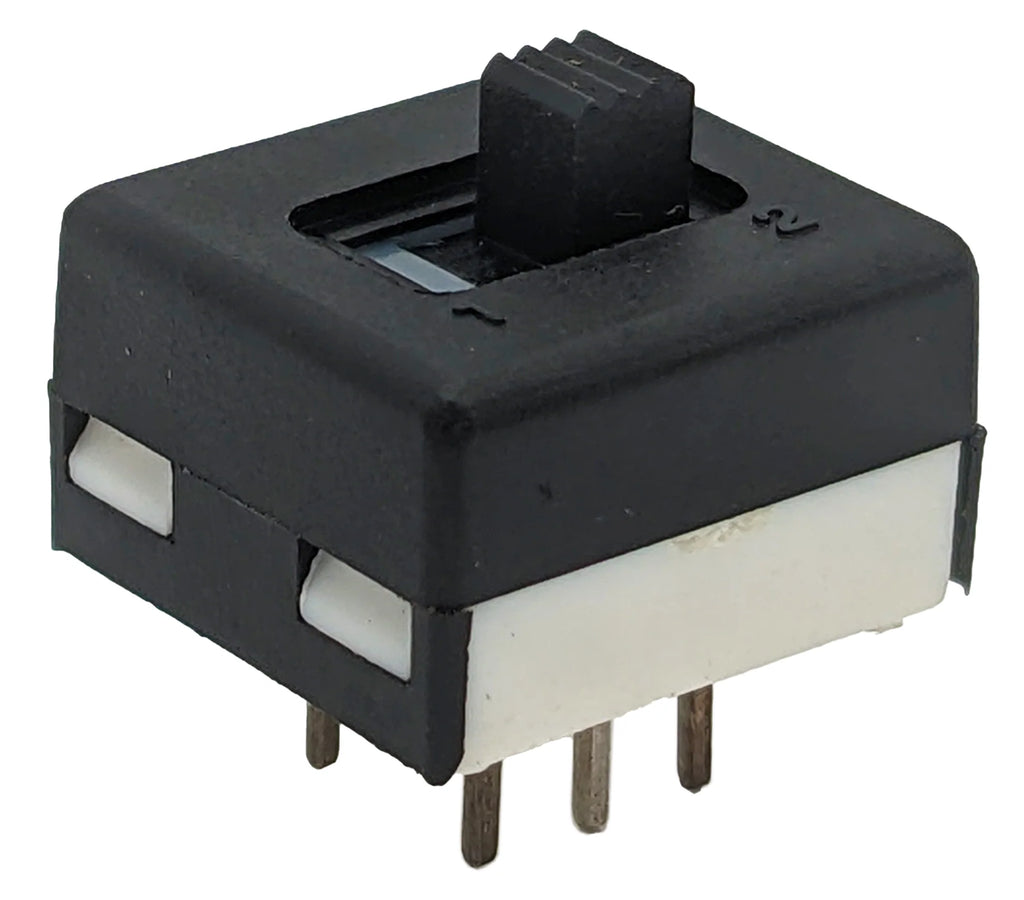

Mini Slide Switch, DPDT, Pins on 0.1" Center and 0.2" Row
Mini Slide Switch, DPDT, Pins on 0.1" Center and 0.2" Row
Mini Slide Switch, DPDT, Pins on 0.1" Center and 0.2" Row
Mini Slide Switch, DPDT, Pins on 0.1" Center and 0.2" Row
Mini Slide Switch, DPDT, Pins on 0.1" Center and 0.2" Row
Mini Slide Switch, DPDT, Pins on 0.1" Center and 0.2" Row

Electronix Express

Mini Slide Switch, DPDT, Pins on 0.1" Center and 0.2" Row

SKU: 17SLDH502A

  • Sale
  • $1.40
  • DPDT (Double Pole Double Throw)
  • Mini size, measures 0.55" x 0.5" x 0.43" (14mm x 12.7mm x 11mm)
  • Pins fit most breadboards and prototyping boards (2.54mm pitch, 5.08mm row spacing)
  • Contact Resistance: 20 mΩ max. initial
  • Insulation Resistance: 1000 MΩ min.
  • Dielectric Strength: 1000 VAC/1 min.
  • Operating temperature range: -25 to 85℃
