Electronix Express

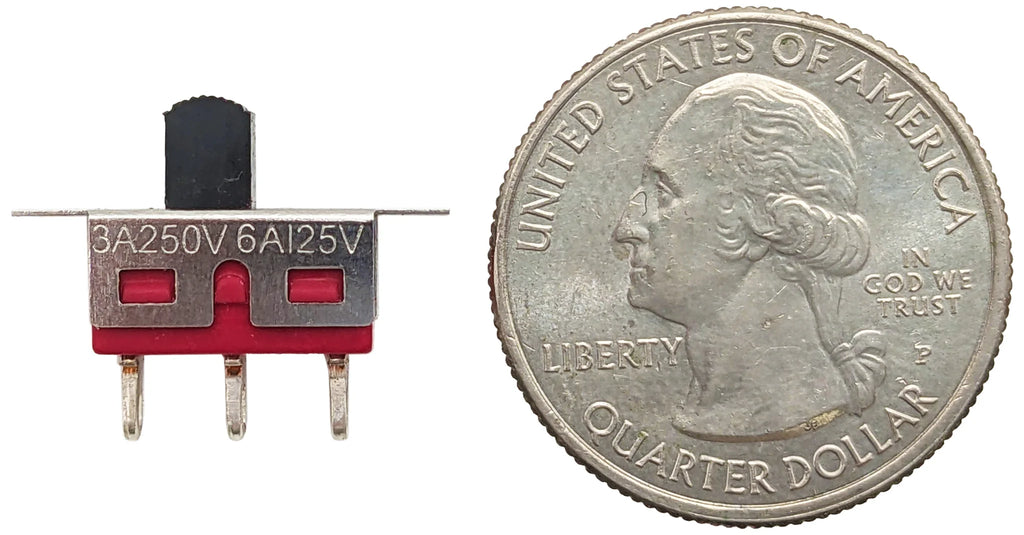

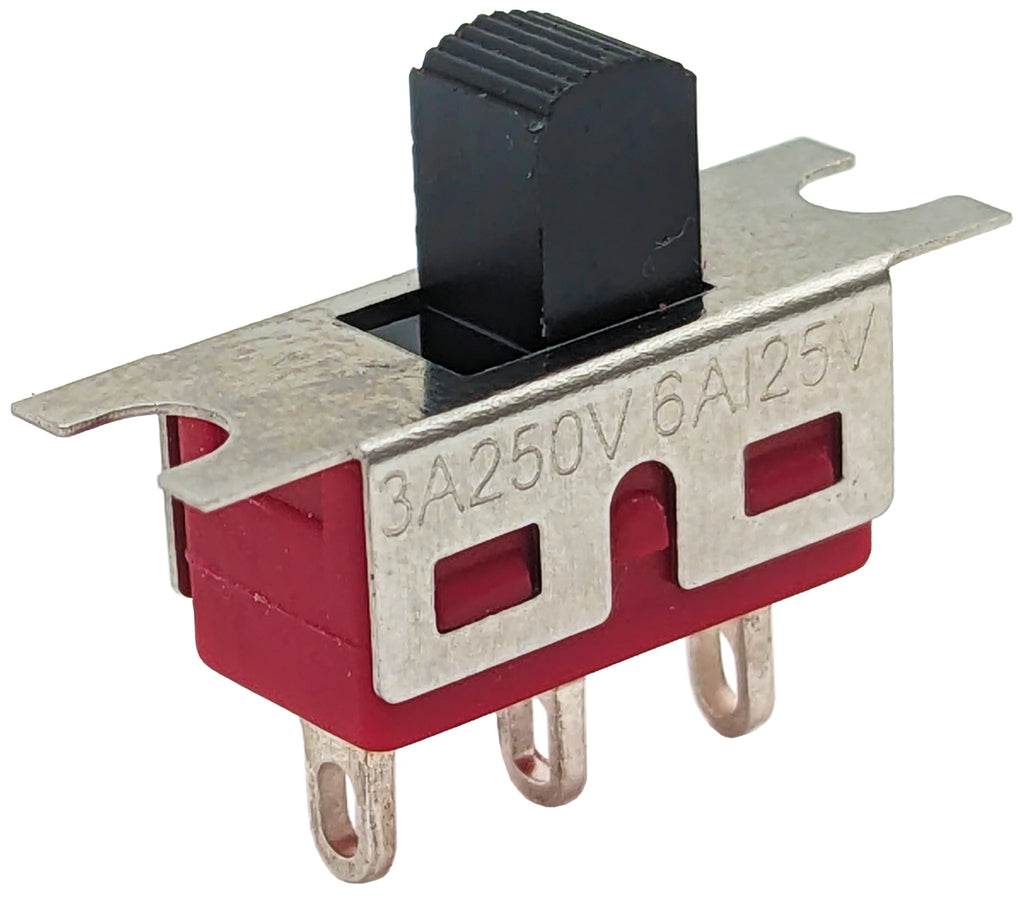

SPDT On-On Mini Slide Switch with 3 Solder Lug Terminals (0.24" x 0.50")

SKU: 17TS13B

  • Sale
  • $1.30
  • SPDT (Single Pole Double Throw) Mini Slide Switch
  • On-On (2 Positions)
  • Termination: Solder Lugs
  • Number of Terminals: 3
  • Contact Rating: 6A @125 VAC or 28 VDC

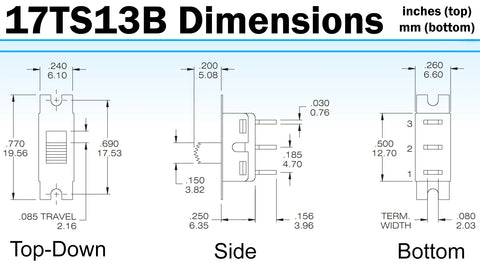

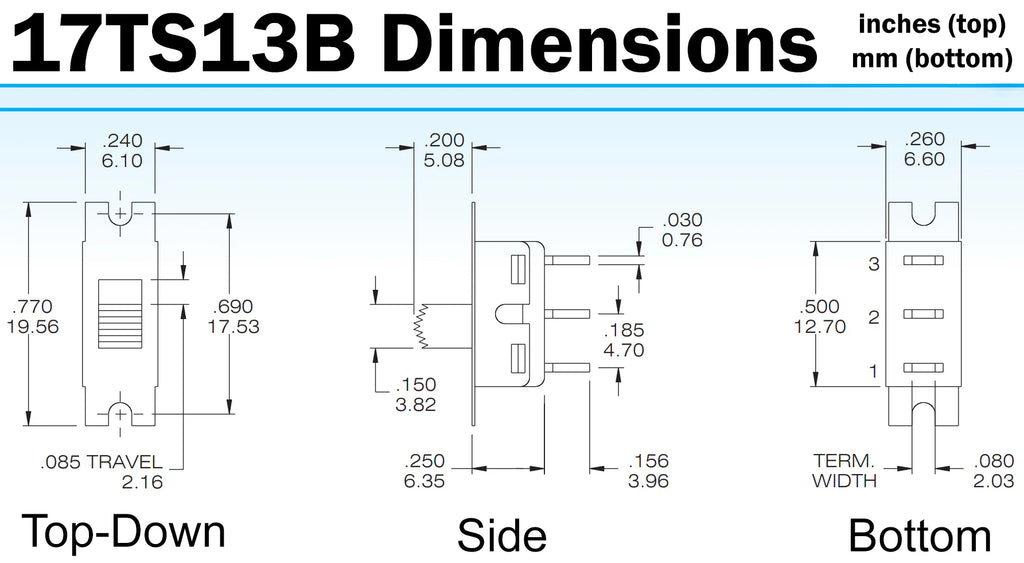

  • Measures 0.24" x 0.50" (not including mounting ears)
