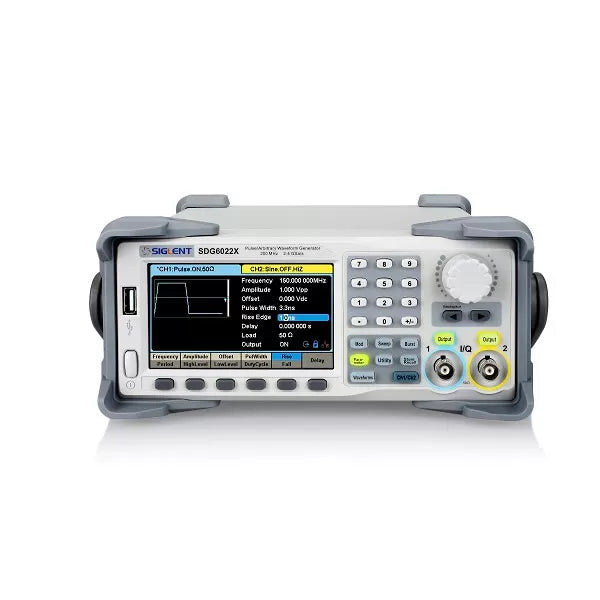

SIGLENT’s SDG6000X is a series of dual-channel Pulse/ Arbitrary Waveform Generators that feature up to 500 MHz bandwidth, a maximum sample rate of 2.4 GSa/s and 16-bit vertical resolution. They also include proprietary TrueArb & EasyPulse technology that help to solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. In addition, the SDG6000X is a multi-function device which can generate Noise, IQ signals and PRBS patterns. These features enable the SDG6000X to provide a variety of high fidelity and low jitter signals, meeting the growing requirements of complex and intensive applications.
Features:
- Dual-Channel, 200 MHz maximum bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range
- Minimum Rise / Fall times: 2 nsec
- High-performance sampling system with 2.4 GSa/s sampling rate and 16-bit vertical resolution
- Multi-function signal generator, meeting requirements in wide range
- Sweep and Burst function
- Harmonics function
- Waveform Combining function
- Channel Coupling, Copy and Tracking functionr
- 196 built-in arbitrary waveforms
- High precision Frequency Counter

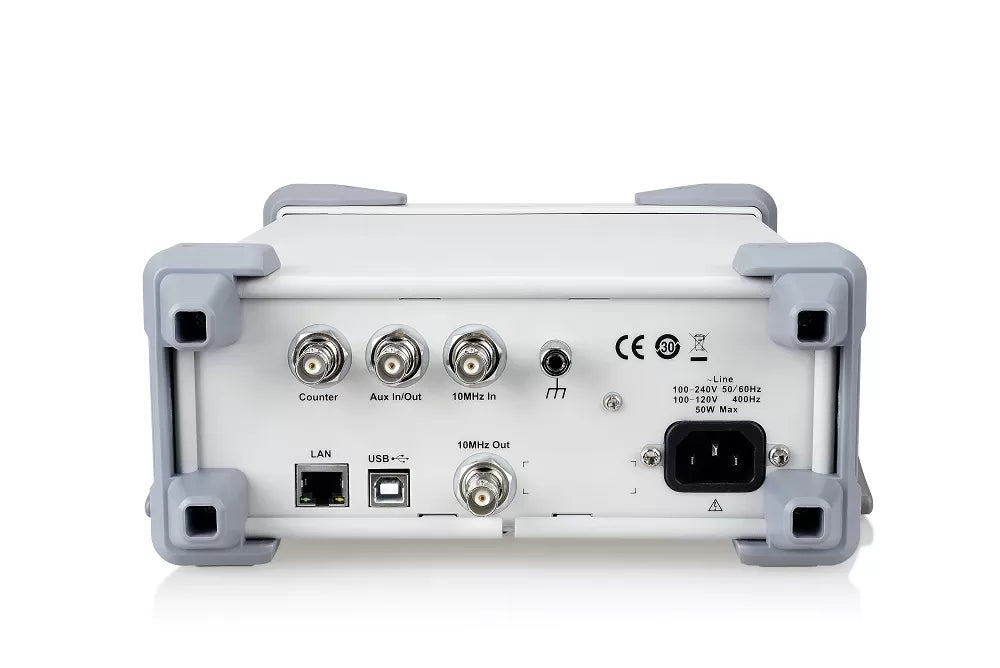

- Standard interfaces include: USB Host, USB Device （USBTMC）, LAN（VXI-11, Socket, Telnet）. Optional Interface: GPIB
- 4.3” touch screen display for easier operation
Box Contents:
- Quick start guide
- Power cord
- USB cable
- BNC coaxial cable x2
- NMI traceable calibration certificate (NIST equivalent)
