Electronix Express

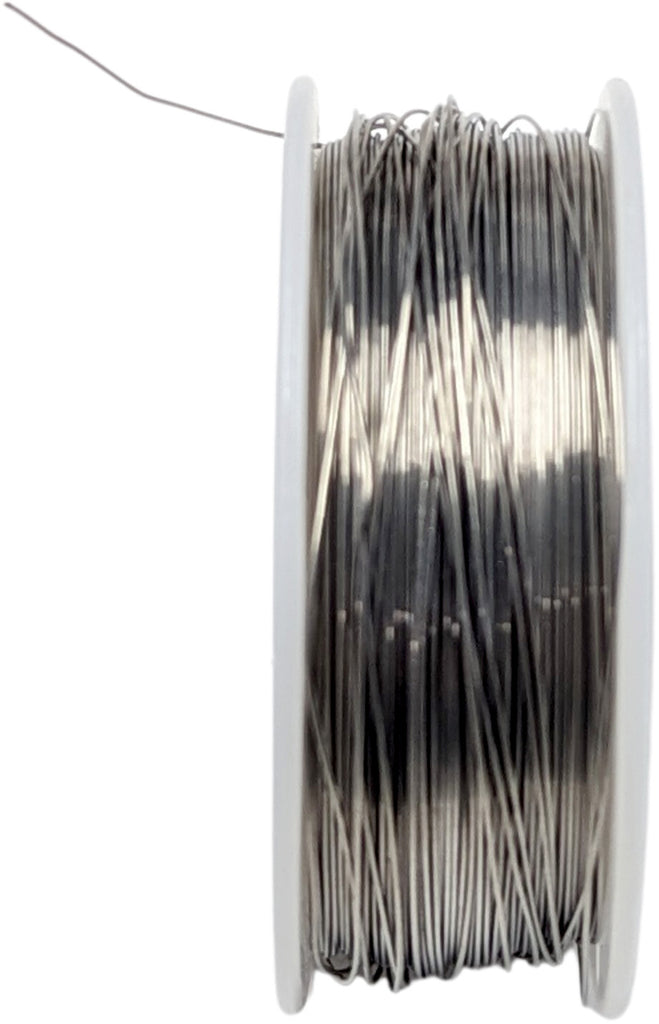

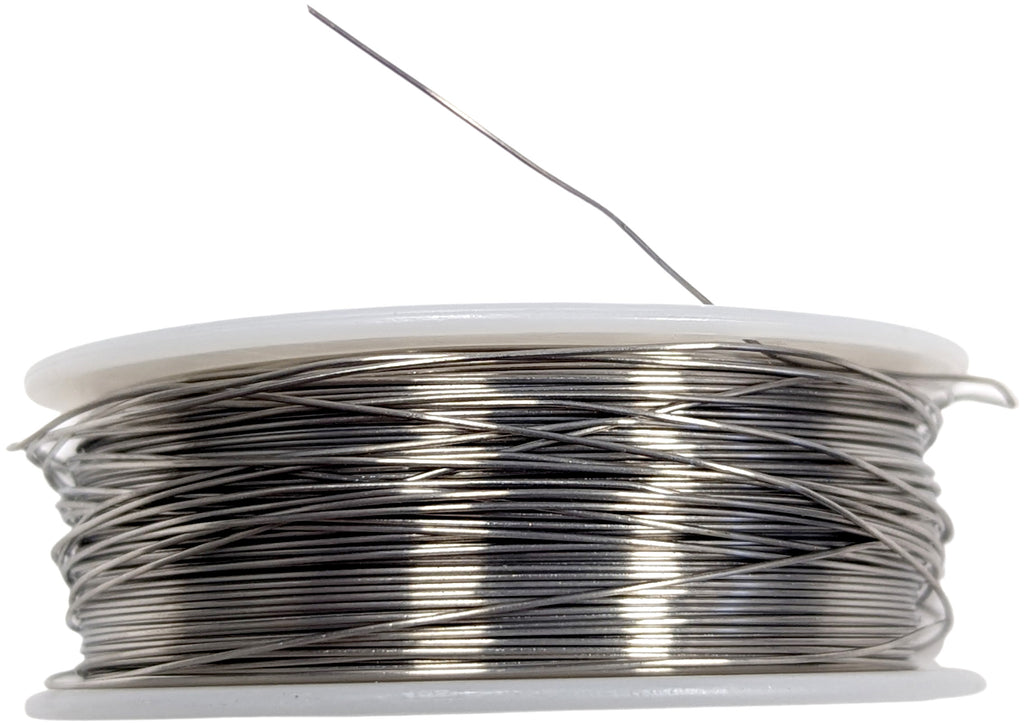

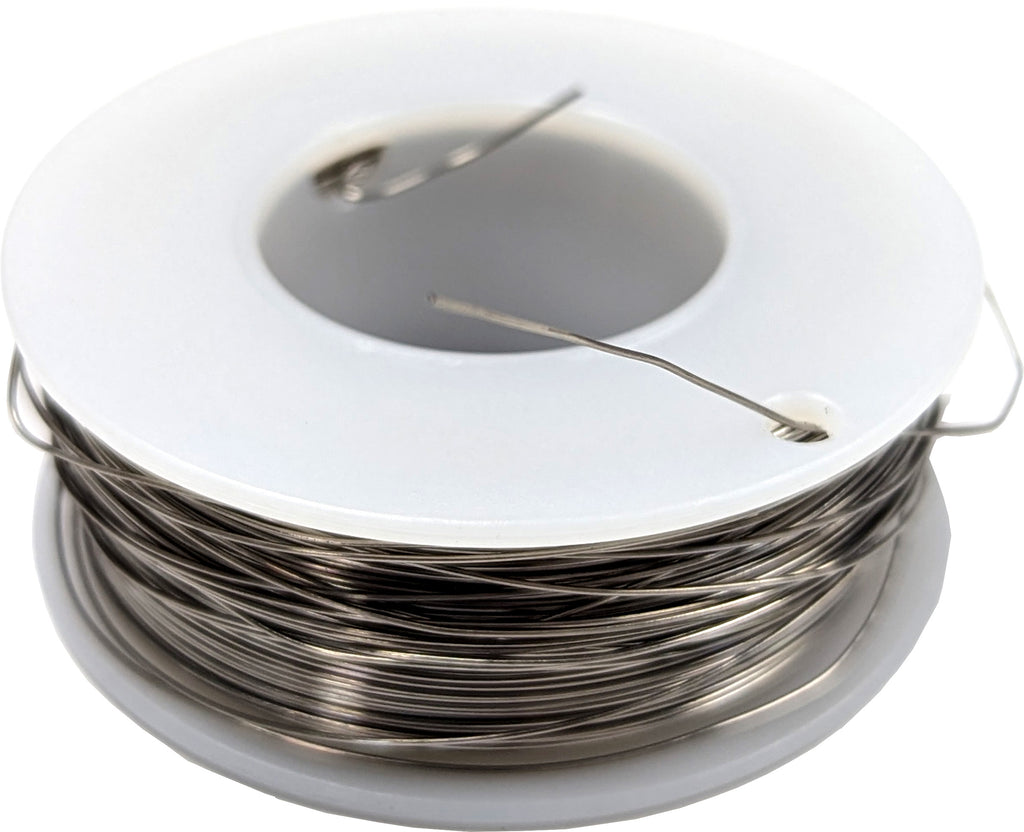

Nichrome Resistance Wire, 1/2 Lb Spool, 20 AWG, Composition: 60% Nickel, 16% Chromium and 24% Iron ASTM B267

SKU: 27BNC20-2

  • Sale
  • $26.00
  • Solid soft drawn and annealed, Composition: 60% Nickel, 16% Chromium and 24% Iron ASTM B267
  • Nichrome 60 (Chromel C)
  • 20 AWG Wire
  • 1/2 Lb Spool
  • Diameter: .032 (inches)/.81 (mm)
  • Nominal impedance: .663 Ohms/Feet
  • Max. Operating Temperature: 1148°C (2100°F)
  • Melting Point: 1350°C (2462°F)
  • Tensile Strength: 100-120 KSI
  • Yield: 45-55 KSI
  • Elongation: 20%
  • Element resistance at 68F (Ohms)
  • Density .298 lbs/cubic in.

Applications:

  • Suitable for electric heating elements or applications that need corrosion resistance
