Electronix Express

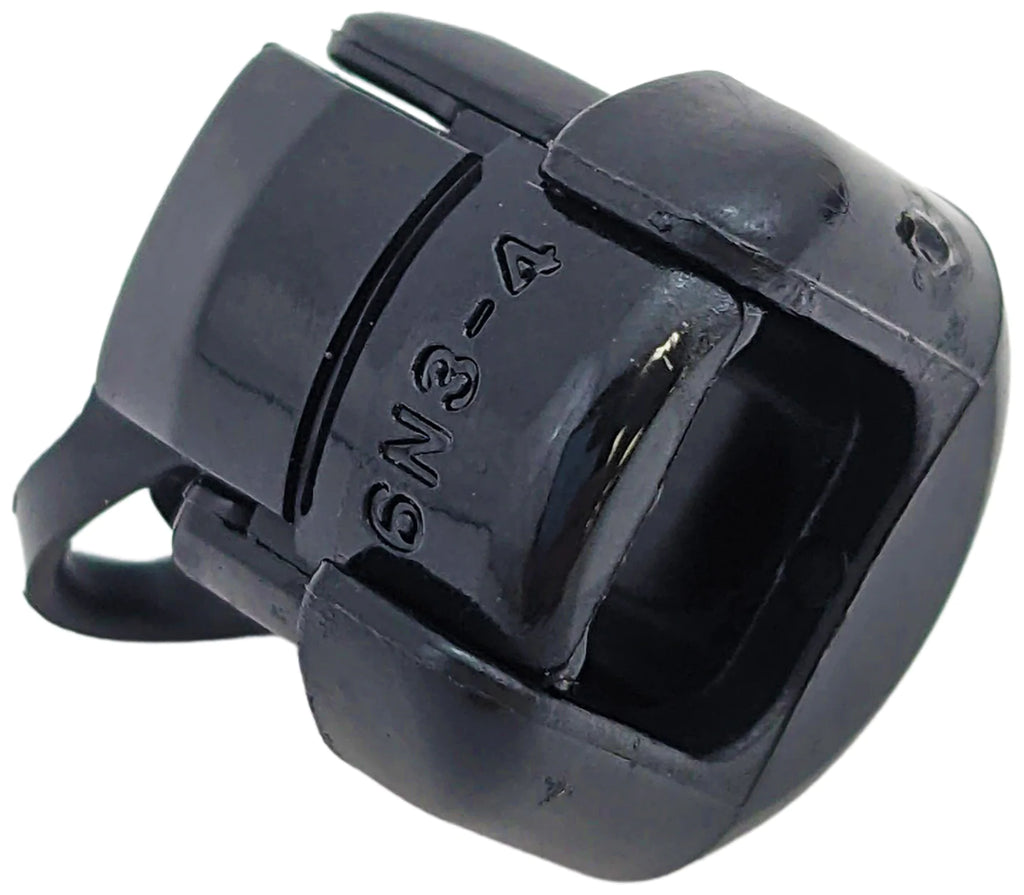

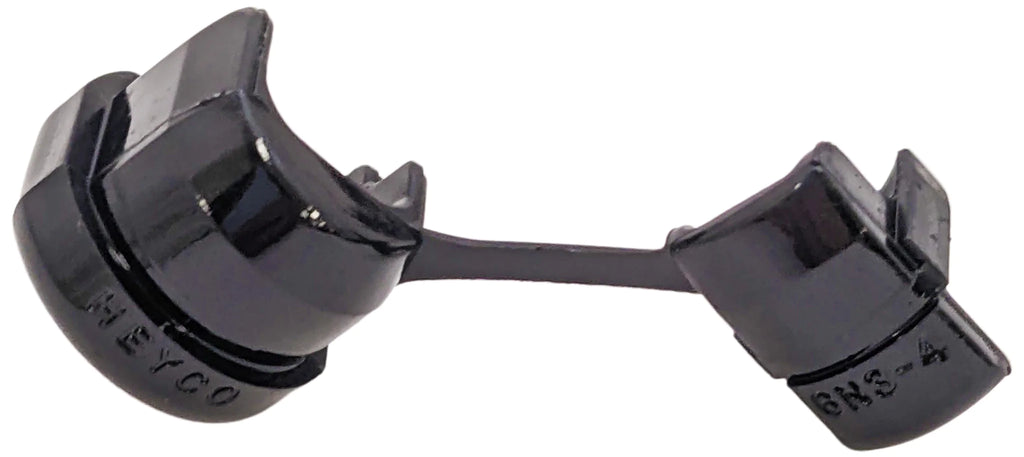

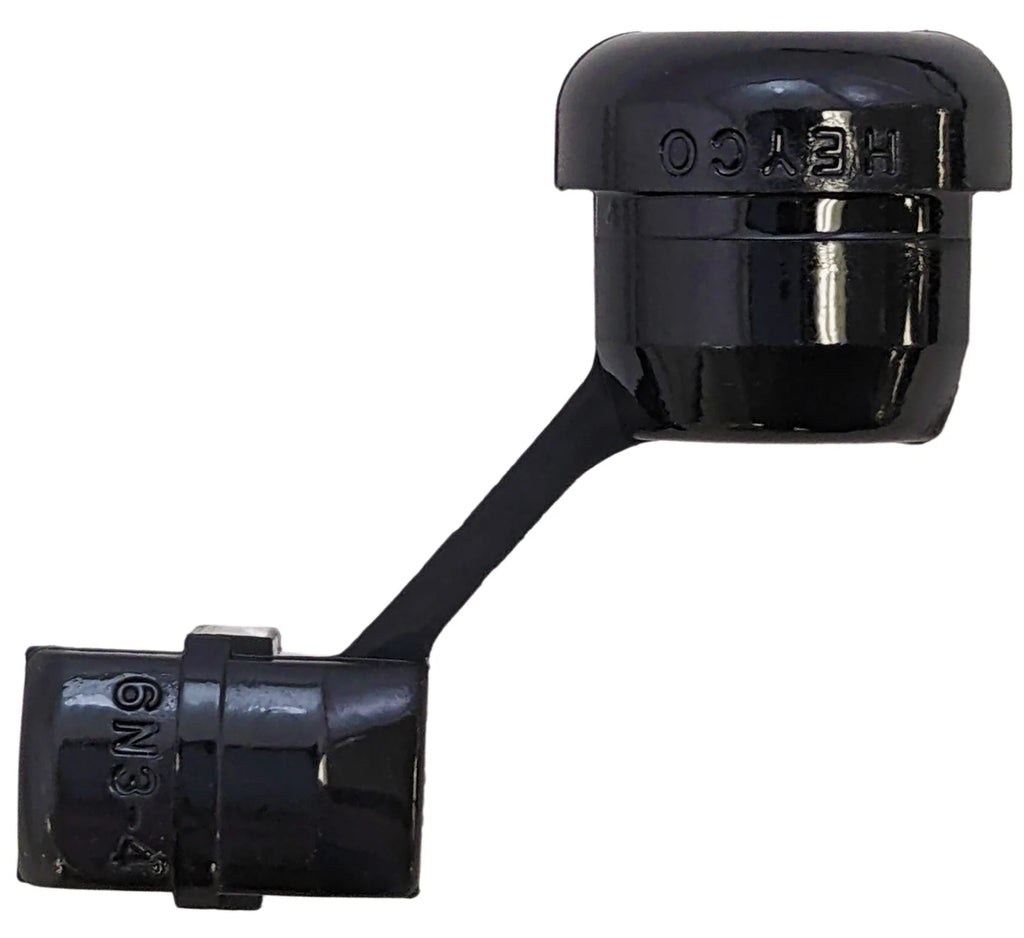

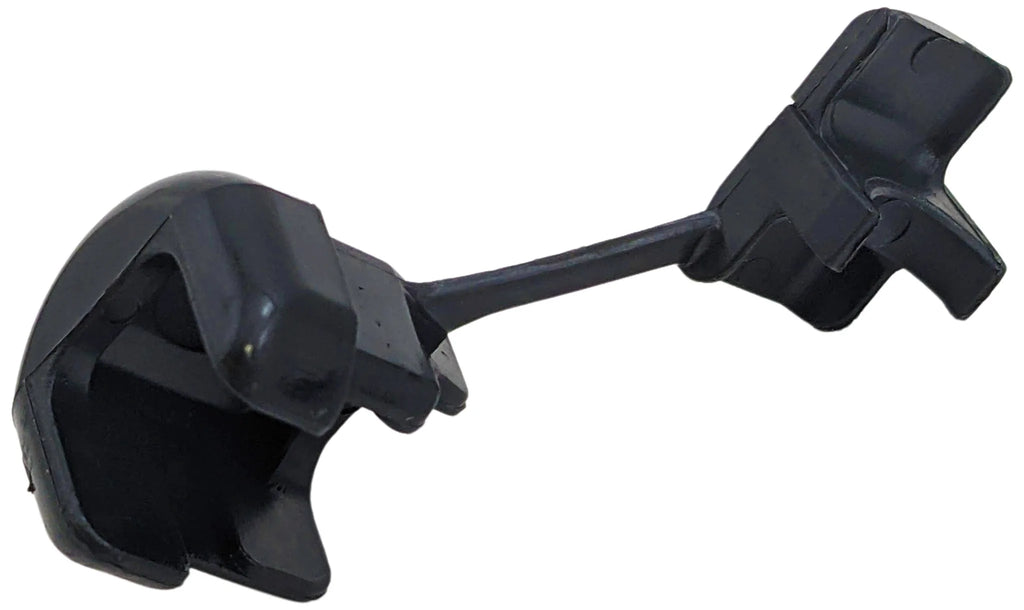

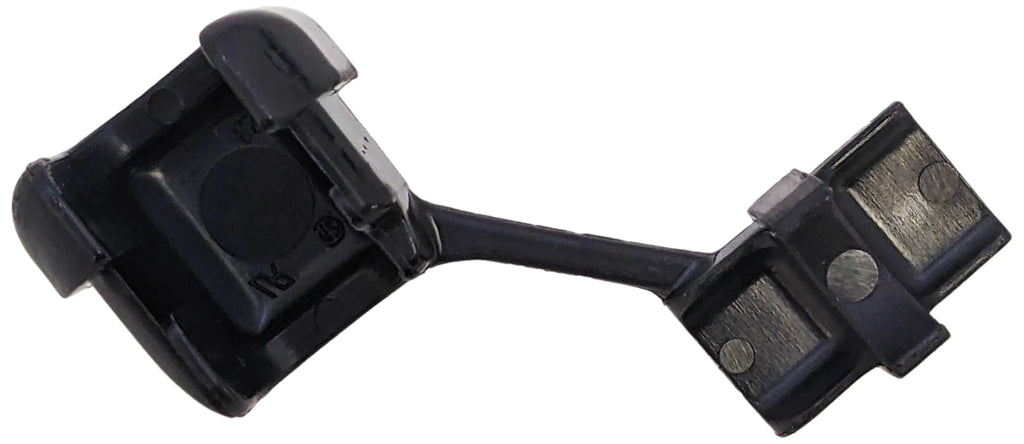

Strain Relief Bushing for SVT-3 Line Cord, Straight-Thru for Round Cables (6N3-4)

SKU: 2900SRP

Description

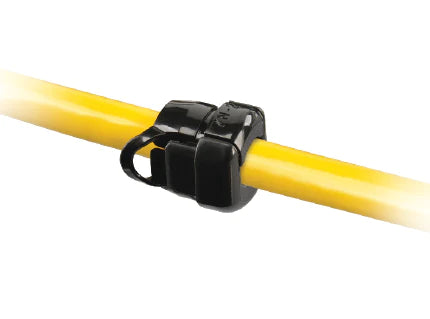

Protects the lifeline of your electric/electronic products by absorbing the forces of pull, push, and twist that may be exerted on the flexible power cord
Securely anchors, insulates, and protects cables at panel entry points
UL Type: SJ, SJT, & SJO
Fits these AWG / Conductors: 16/2 (.325"), 18/3 (.330"), 14/2 (.350"), 16/3 (.355"), 18/4 (.360")

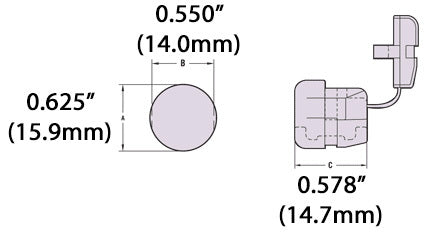

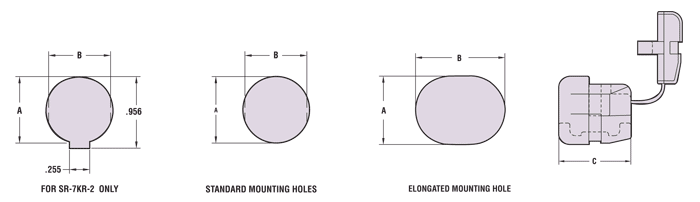

Mounting Hole Dia.: .625 in./15,9 mm.
To Prevent Rotation: 550 in./14,0 mm.
Finished Fit Panel Thickness: .062 in./1,6 mm.

Datasheet
