The FS90R is a special servo made for continuous rotation. It can make full revolutions forward or backward, which makes it great for projects such as driving wheels on a small robot.
The FS90R servo includes an adjustment potentiometer to calibrate the middle-point (stopped) setting. Calibrate this setting by sending a 1.5ms (1500µs) pulse signal (position "90" when used with the Arduino Servo library), then slowly turn the middle-point adjustment potentiometer until the servo stops rotating. Access the middle-point adjustment potentiometer by inserting a small screwdriver into the hole in the bottom of the servo, see diagram below.

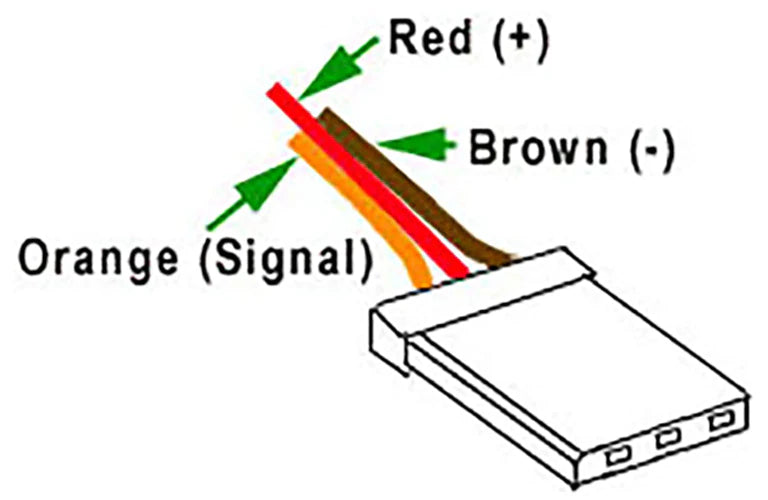

The servo's cable has a standard JR-style connector on the end.
PRODUCT CONTENTS:
- 1 — FEETECH (formerly Fitec) FS90R Continuous Rotation Servo
- 1 — straight single-ended servo horn
- 1 — straight double-ended servo horn
- 1 — winged straight double-ended servo horn
- 1 — four-pointed star servo horn
- 1 — round servo horn
- 1 — servo horn screw
- 2 — FS90R servo mounting screws
|
|
Operating Voltage
|
|
4.8V
|
6.0V
|
|
Stall Torque
|
1.3 kg/cm
(18.09 oz/in)
|
1.5 kg/cm
(20.86 oz/in)
|
|
Max Speed
|
110 RPM
|
130 RPM
|
|
Idle Current
|
5 mA
|
6 mA
|
|
No Load Running Current
|
100 mA
|
120 mA
|
|
Stall Current
|
550 mA
|
650 mA
|
|
Operating Voltage Range
|
4.8V to 6V
|
|
Pulse Width Range
|
700 to 2300 µs
|
|
Dead Band Width
|
90 µs
|
|
Stop Signal
|
1500 (±45) µs
|
|
CW Rotation Signal Range
|
700 to 1500 µs
|
|
CCW Rotation Signal Range
|
1500 to 2300 µs
|
|
Internal Gears
|
Plastic
|
|
Cable Length
|
23 cm (9.06")
|
|

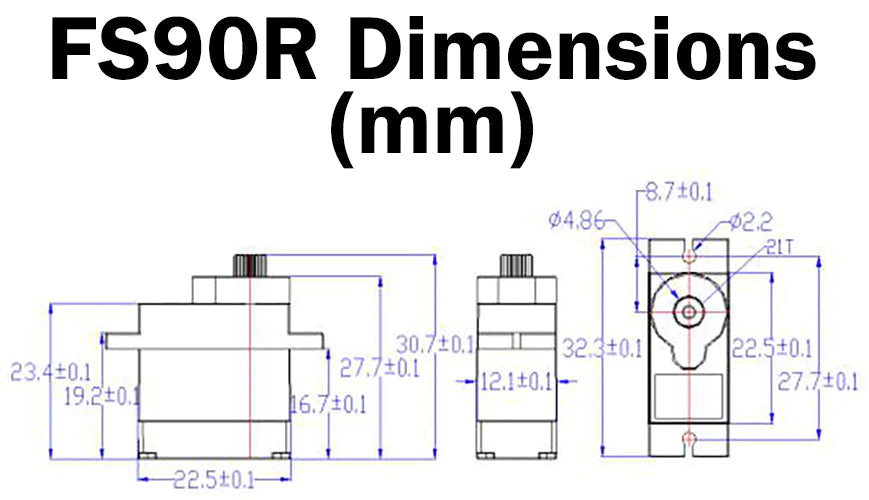

Dimensions
|
|
Length
|
32.6 mm (1.28")
|
|
Width
|
12.5 mm (0.49")
|
|
Height
|
27.3 mm (1.08")
|
|
Weight (of servo itself)
|
9 g (0.32 oz)
|
|
Weight (including horns and screws)
|
15.1 g (0.53 oz)
|
