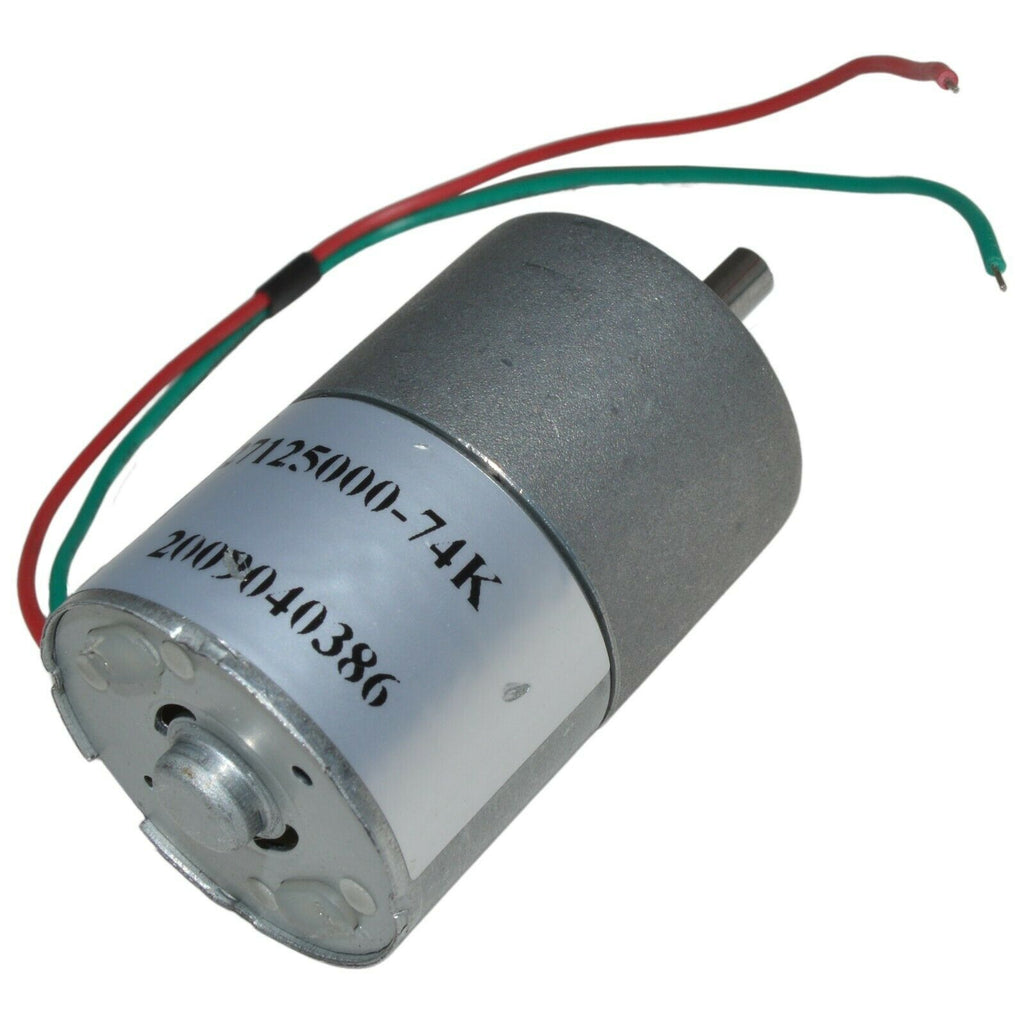

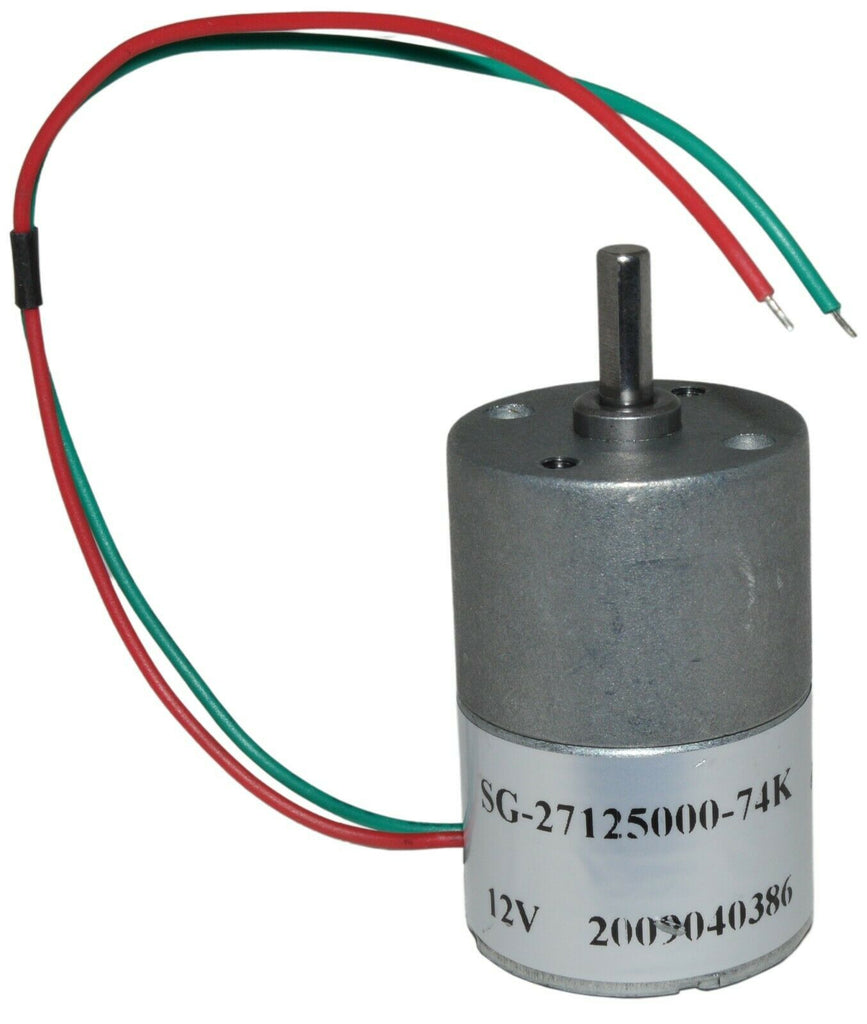

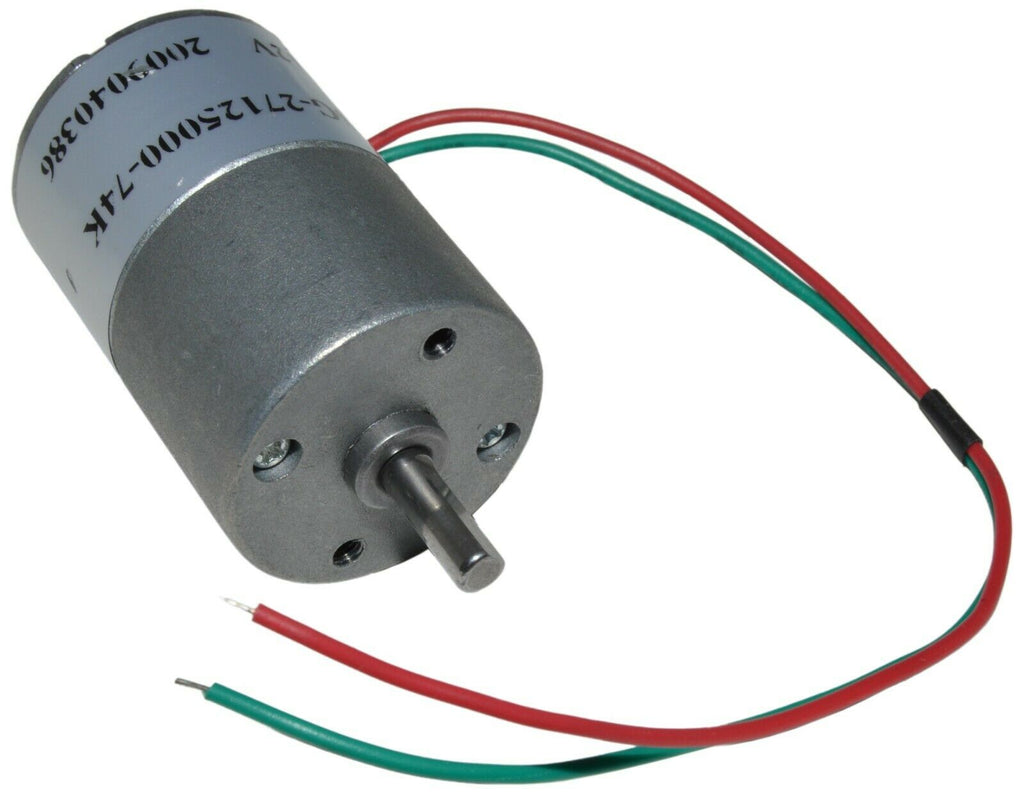

Gear Head Motor - 12V DC, 4500 RPM with 6" Wire Leads, 22AWG Solid Wire Leads

SKU: 29GHM

  • Sale
  • $11.75
  • Reduction Ratio: 76.8 to 1
  • Motor Speed: 4500 RPM @ 12 VDC
  • Shaft Speed: 58 RPM @ 12 VDC
  • Motor Current: Less than or equal to 60mA @ No-Load
  • Torque: 0.43 kg - cm = 6 oz - in.
  • 6" Wire Leads
  • 22AWG Solid Wire Leads

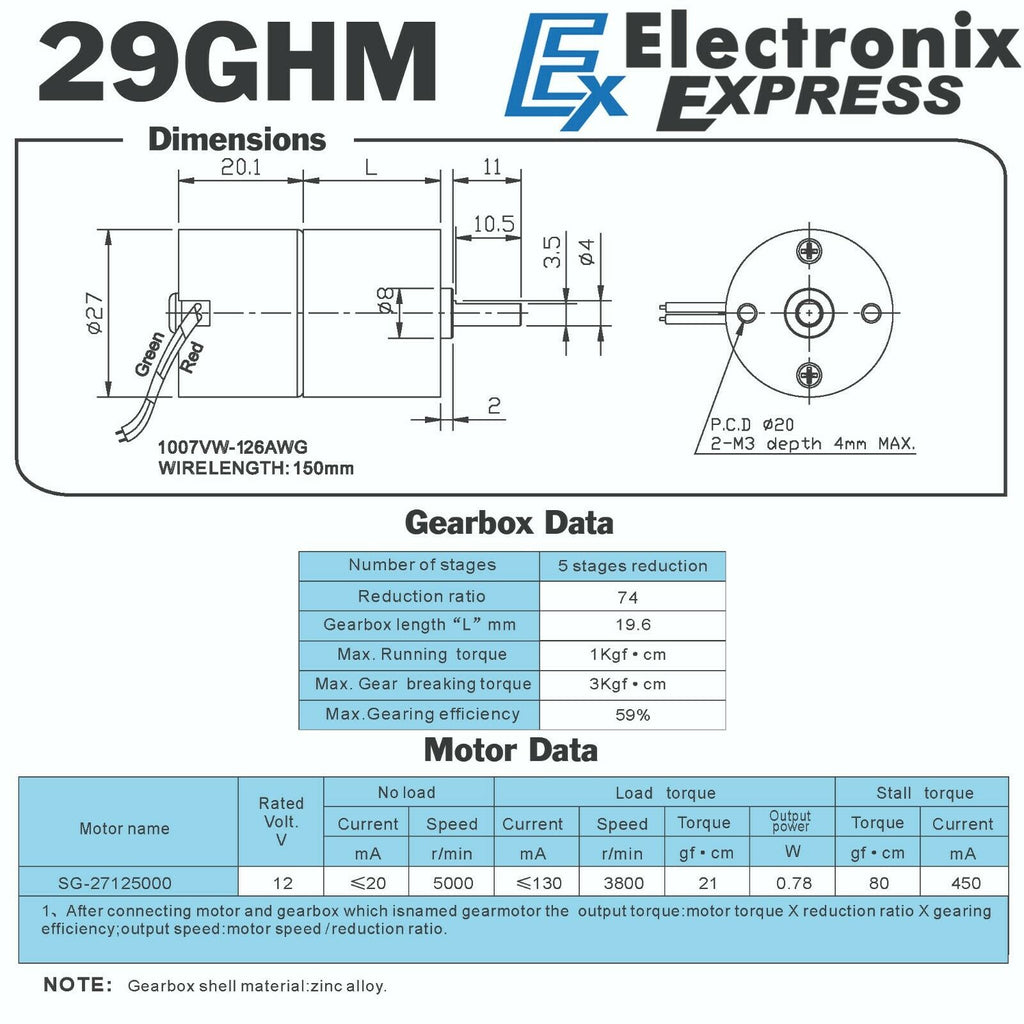

  • Overall dimensions: 2.6" x 1.07" x 1.07"
  • Shaft dimensions: .35" x .24" x .22"
