Features:
Easy to install
Adjustable timer & volume
Applications:
- Entry detection
- Automatic alarm warning
- Presence detection

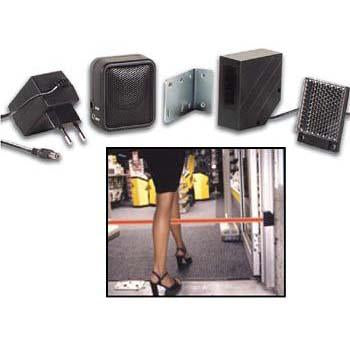

Includes:
- 1 x retro-reflection IR photoelectric beam sensor
- 1 x power supply 110 V / 9 VDC / 250 mA
- 1 x alarm speaker (timer & volume adjustable)
- Optional counter for PEM7D: PEM7D/C
Specifications:
- Nominal detection range: 23 ft
- Light source: IR LED
- Speaker:
- Power supply: DC 9-15V
- Speaker output: chime / off / alarm (selection through by switch)
- Duration audio signal: about 1 sec. for chime, 30 sec. for alarm
- Timer adjustable: 3 - 30 sec. before alarm activation
- Volume adjustable: yes (from 0 to max.)
- Cable length: 9.5 m
- Working temperature: -4 ℉ to +122 ℉
- Power supply: DC 9-15V regulated (adapter included)
- Total current consumption: < 130 mA
- Standby current: 25 mA
- IP rating: IP44 / indoor use
