Signal Generator Engineering Kit with Circuit Diagram (No Soldering Required)

SKU: 3200SGEN

  • Sale
  • $5.50
  • The Signal Generator kit output sine wave, triangle, and square waveforms. The signal frequency is about 1 kHz.

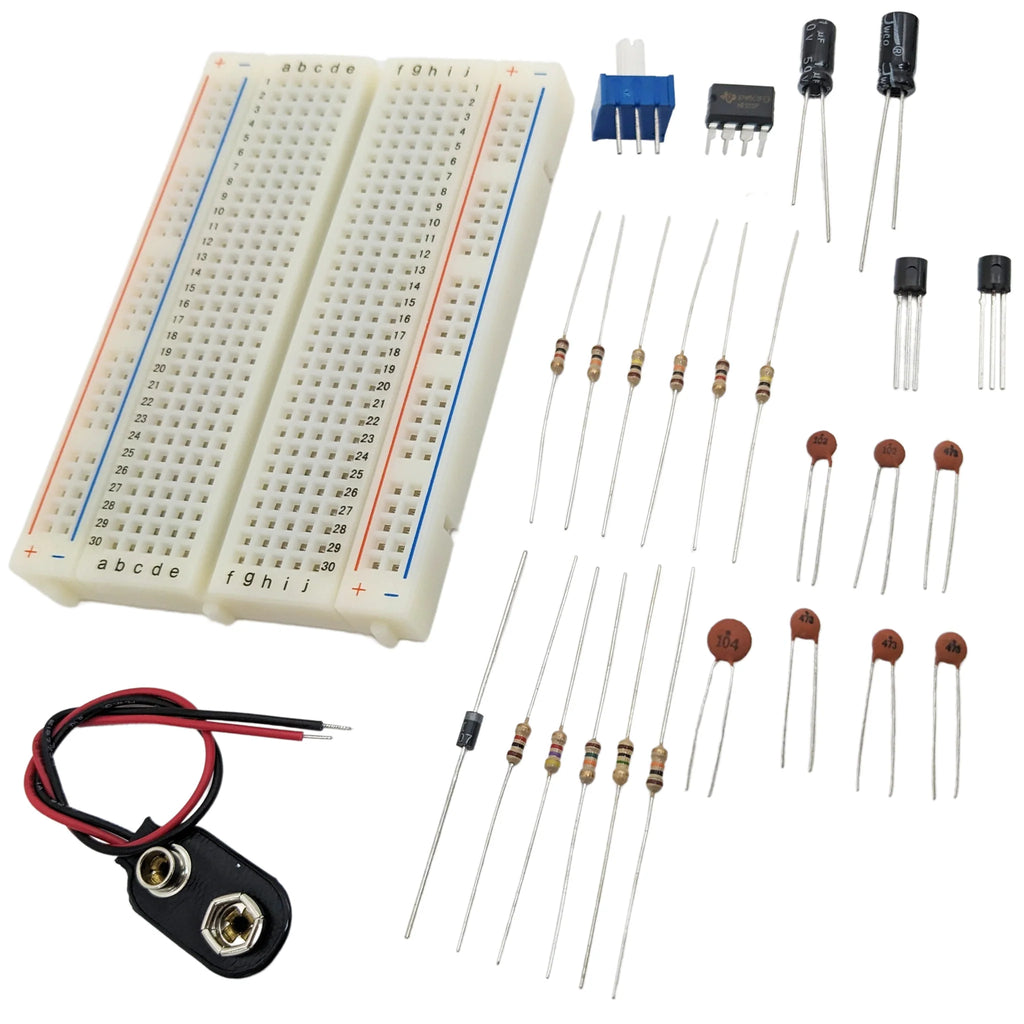

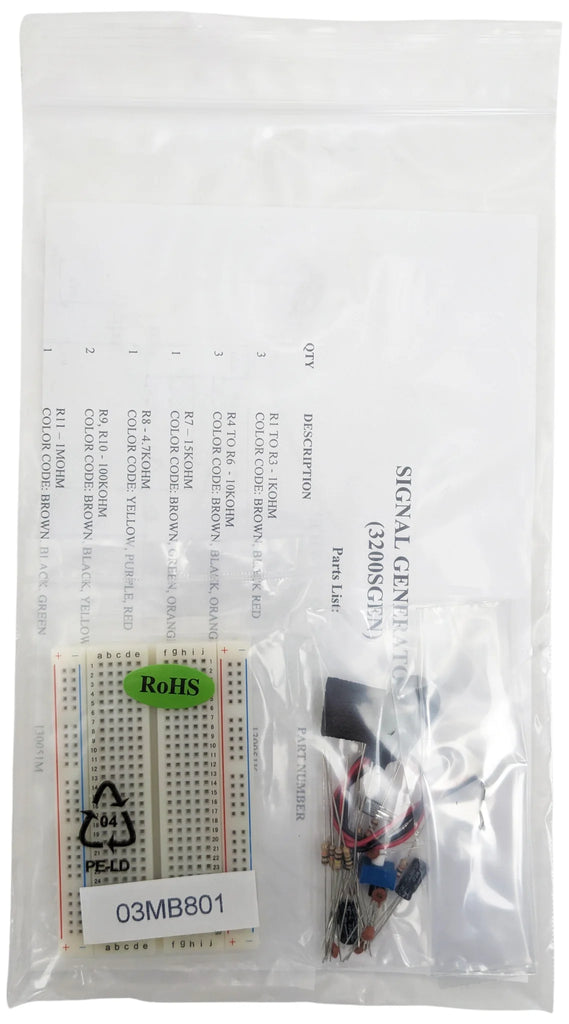

  • Safe! Fun! Educational! Complete with solderless breadboard, components, schematic, and breadboard layout.
  • Note: Step by step instructions are not included - use the included parts list to identify the components and assemble according to the included circuit diagram.
  • Jumper wire not included (breadboard accepts 21 to 26 AWG wire)
  • Requires a 9V battery for operation (not included)
