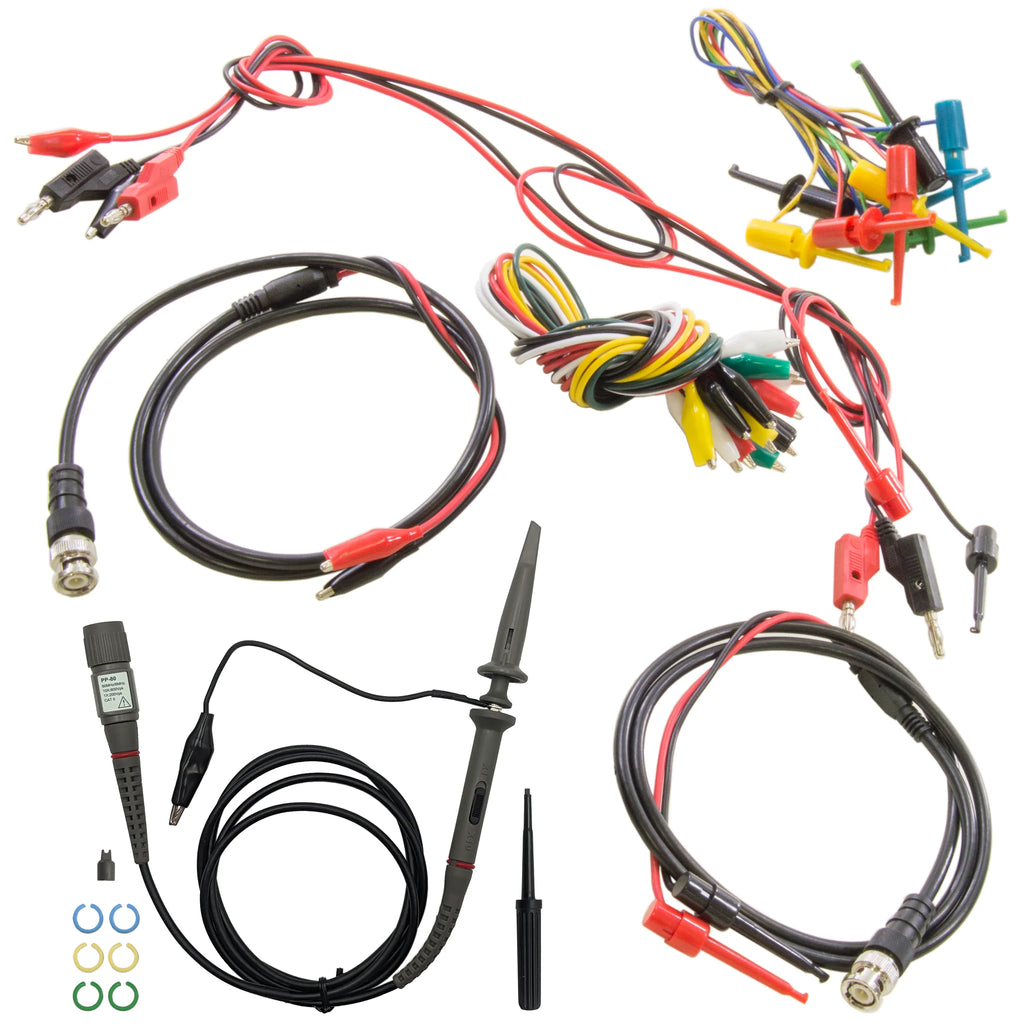

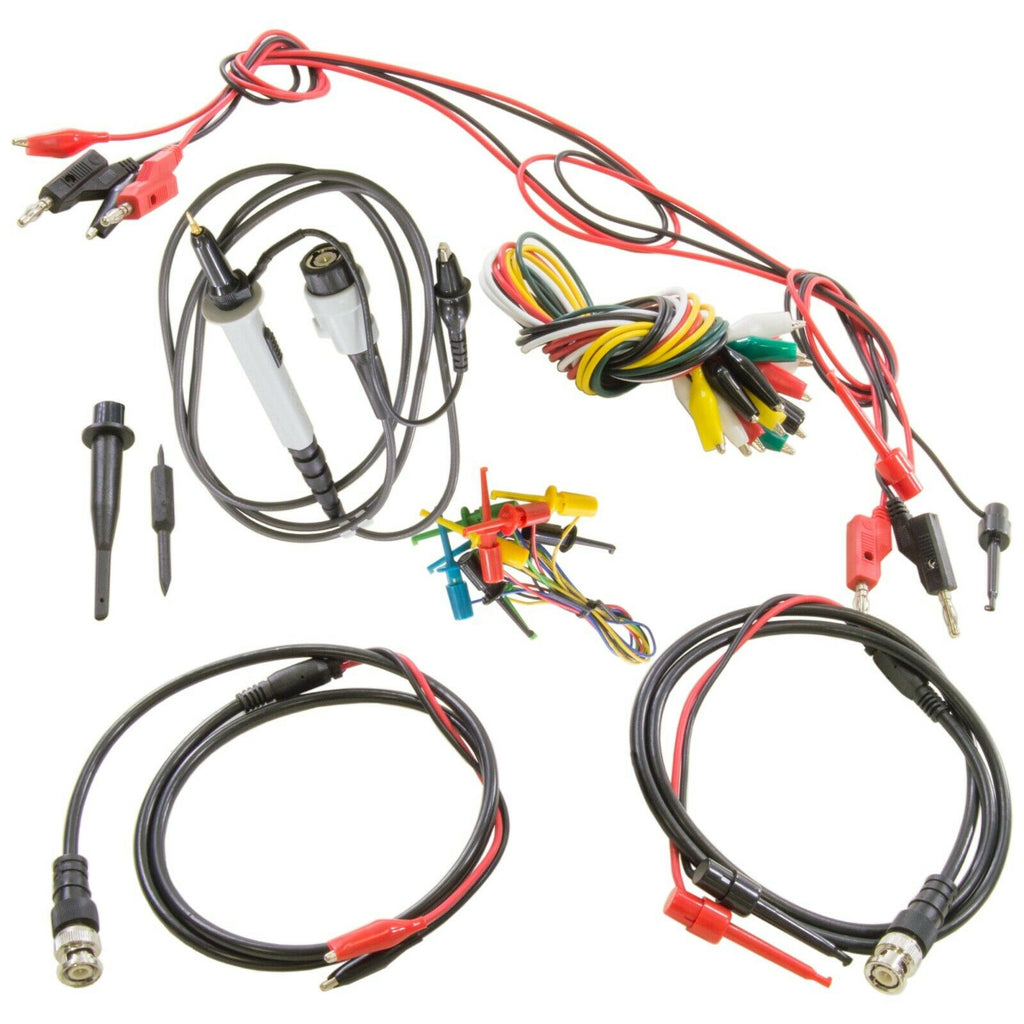

Kit Includes:

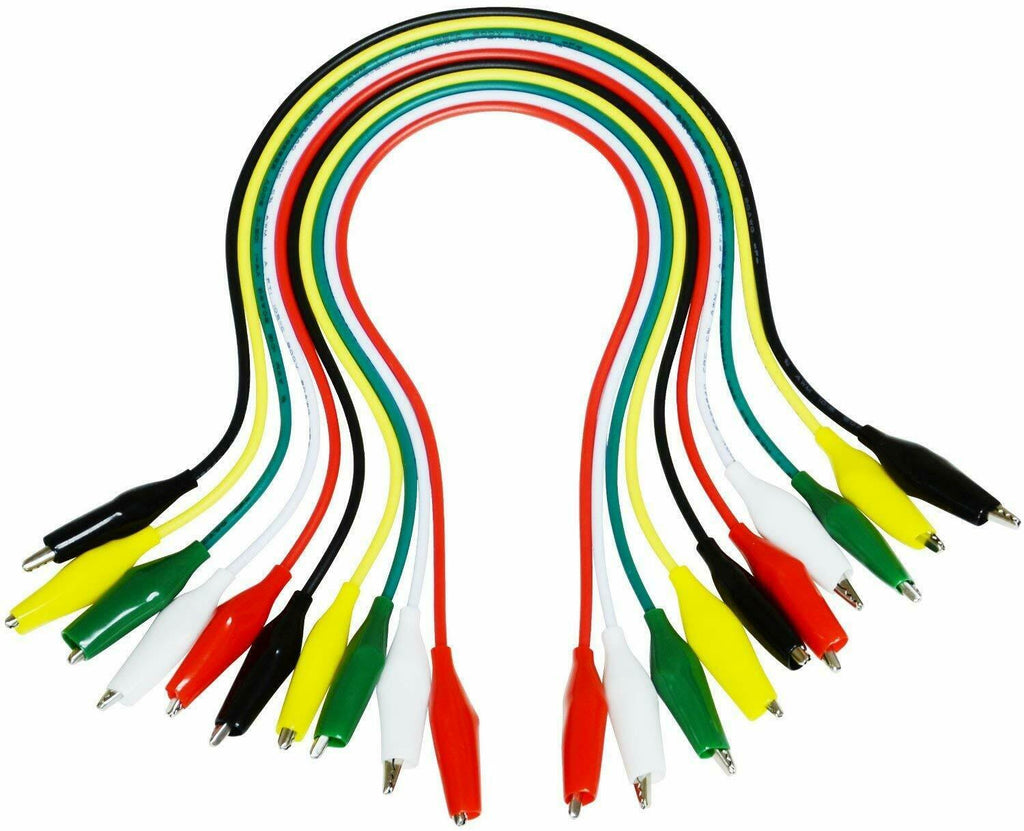

- 05ALS1 - Alligator Lead Set (Set of 10)

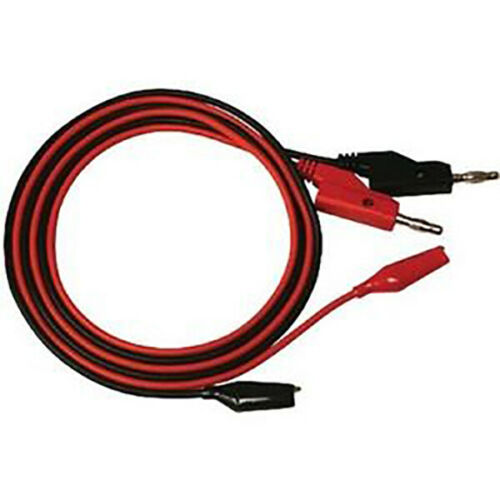

- 05ALS3 - Banana to Alligator Lead Set

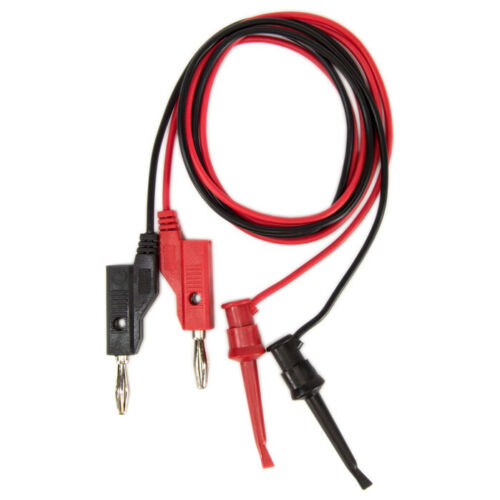

- 05ALS5 - Banana to Hook Lead Set (one each of red and black)

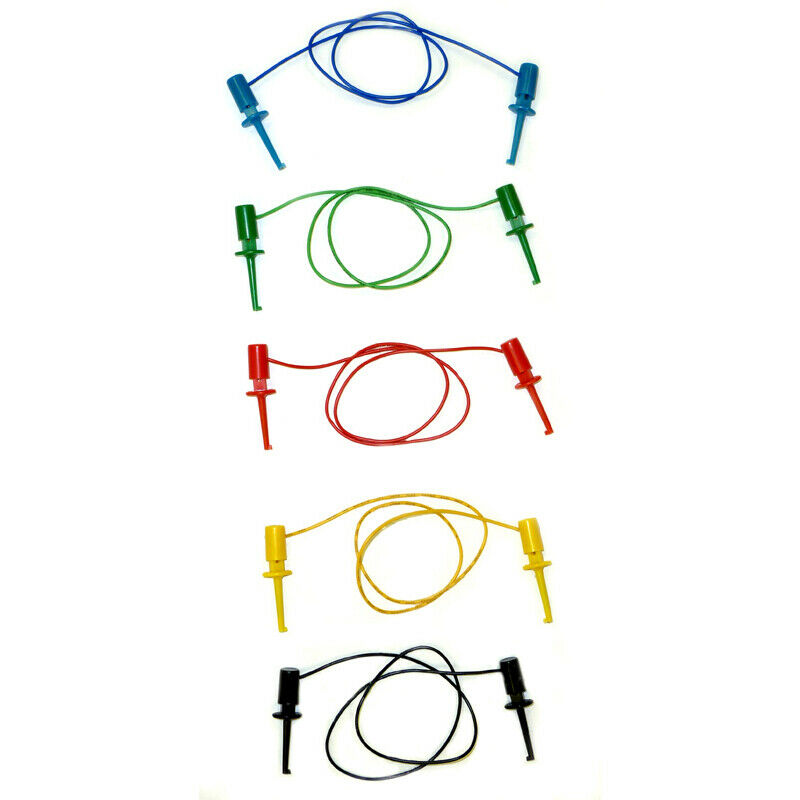

- 05ALS7 - IC Test Lead Mini Hook

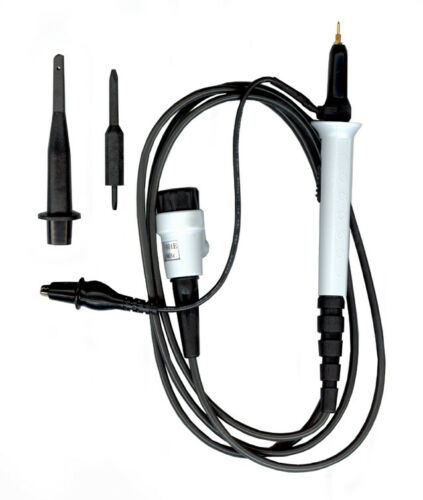

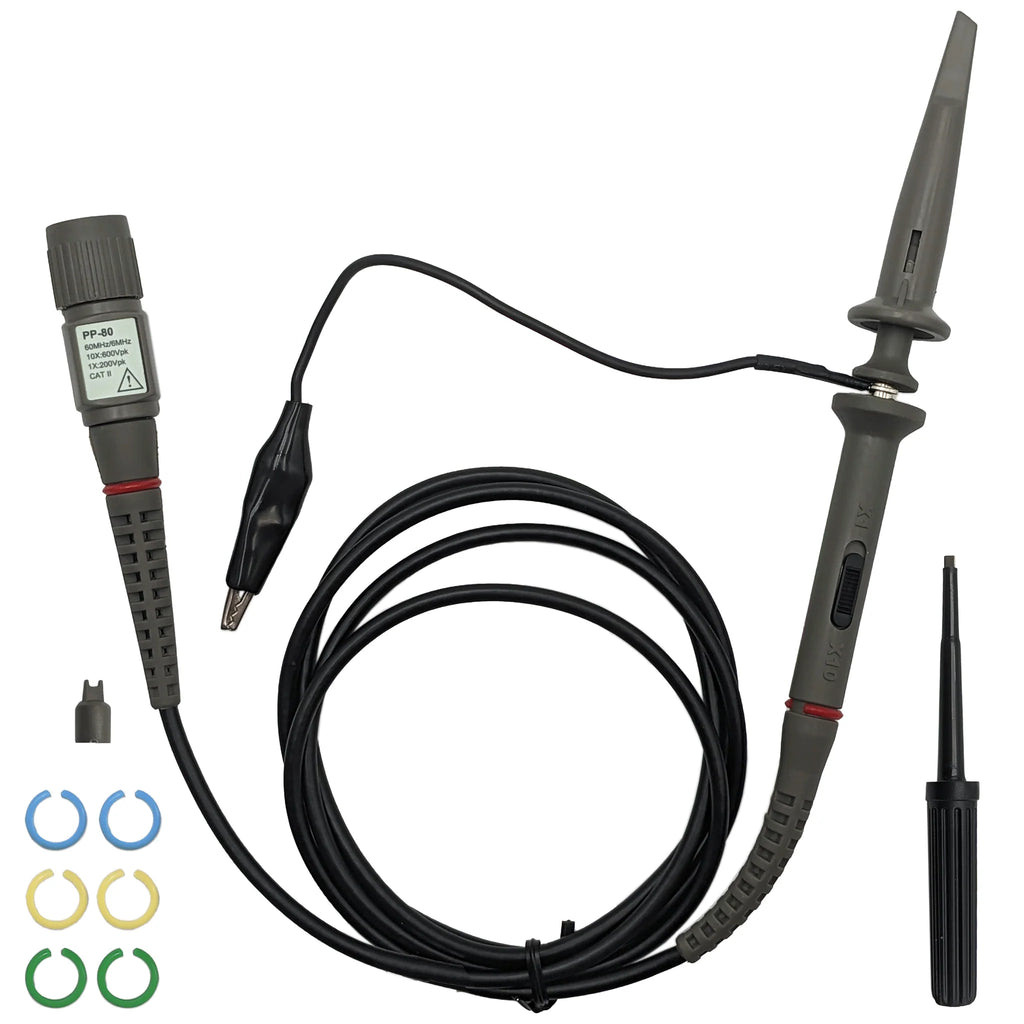

- 05SPAK110 - Scope Probe 60MHz Switchable

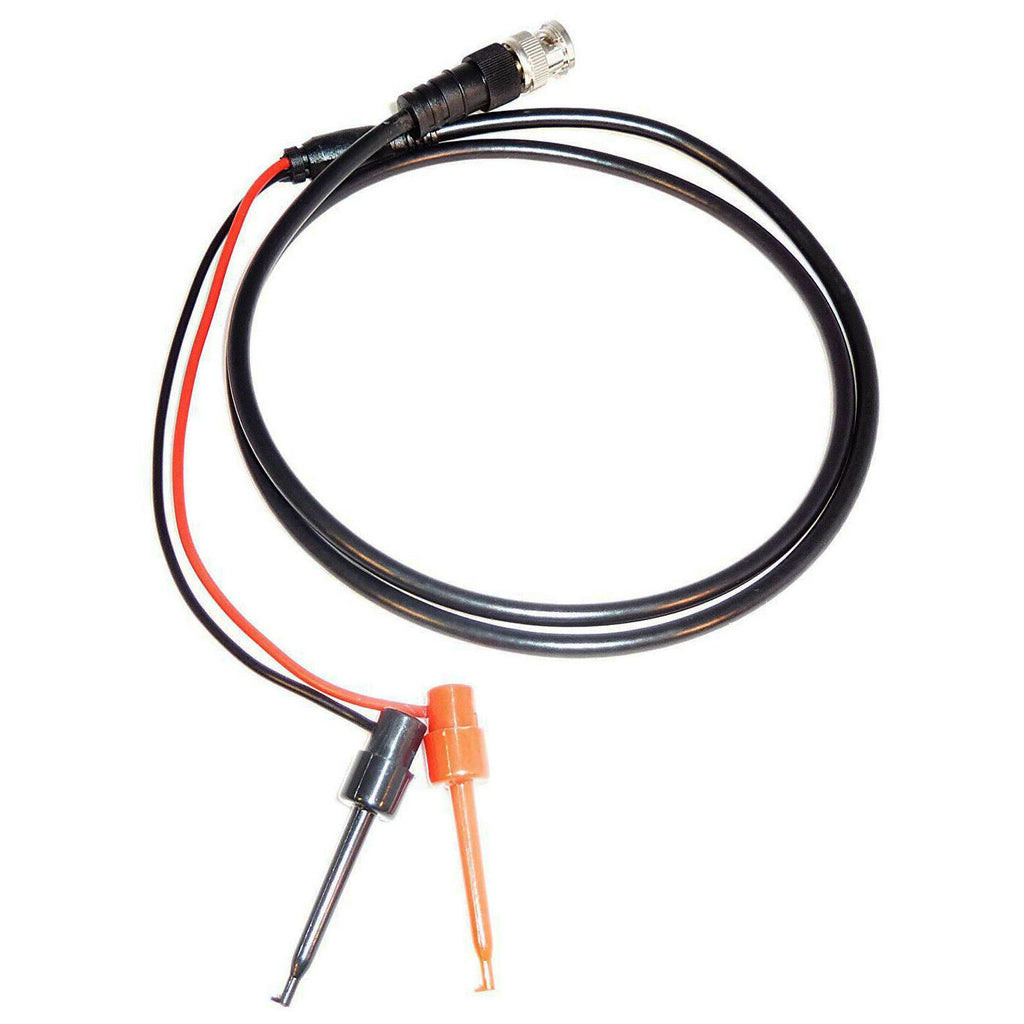

- 05SPAT1 - BNC to IC Test Hook 36" long coax & 8" long connecting (Red & Blk. ) wires

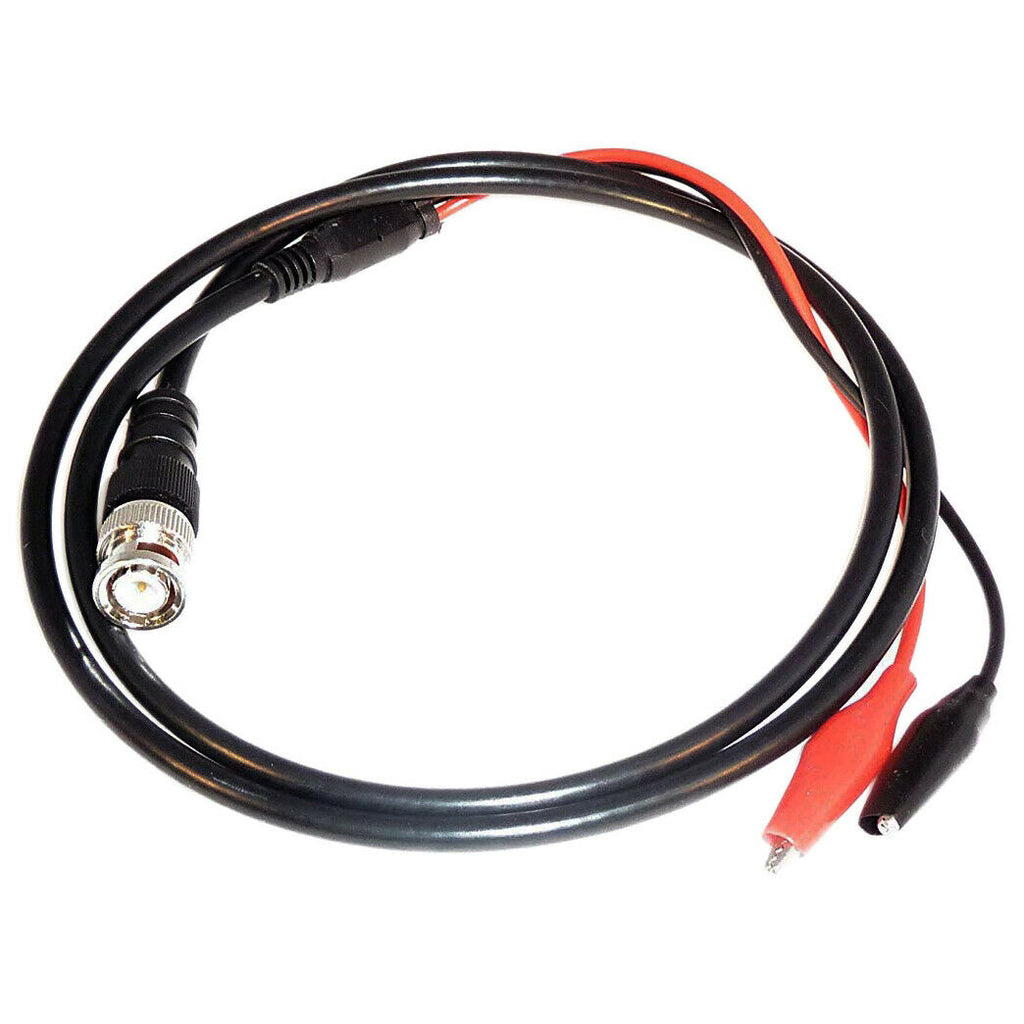

- 05SPAT2 - BNC to Alligators - 36" long coax & 8" long connecting (Red & Blk.) wires
Oscilloscope Probe Specifications:
- Input Capacity:
- X1: 85pF-115pF
- X10: 18.5pF-22.5pF
- Oscilloscope Input Capacity: 15pF-40pF
- Input Resistance:
- X1: 1MΩ ±2%
- X10: 10MΩ ±2%
- Bandwidth:
- X1: DC 6MHz
- X10: DC 60MHz
- Max Input Voltage:
- X1: <200V DC +Peak AC
- X10: <600V DC +Peak AC
