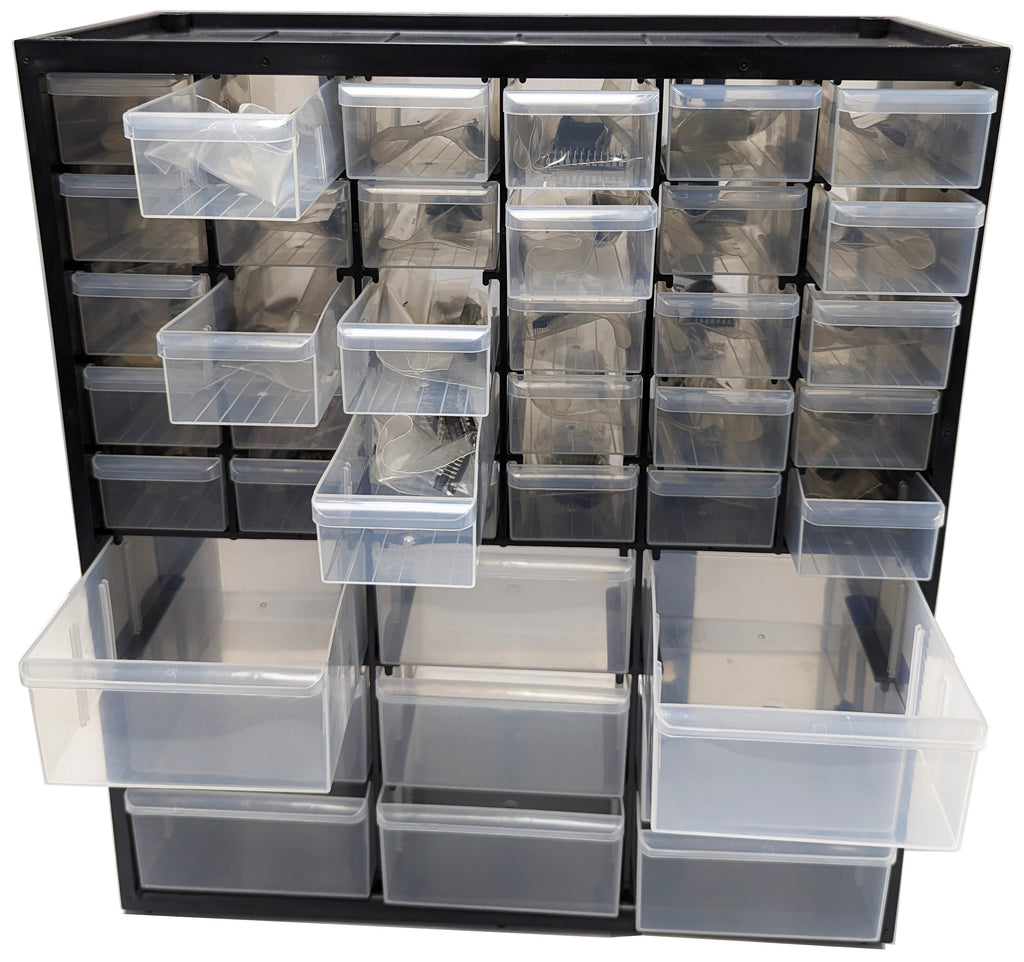

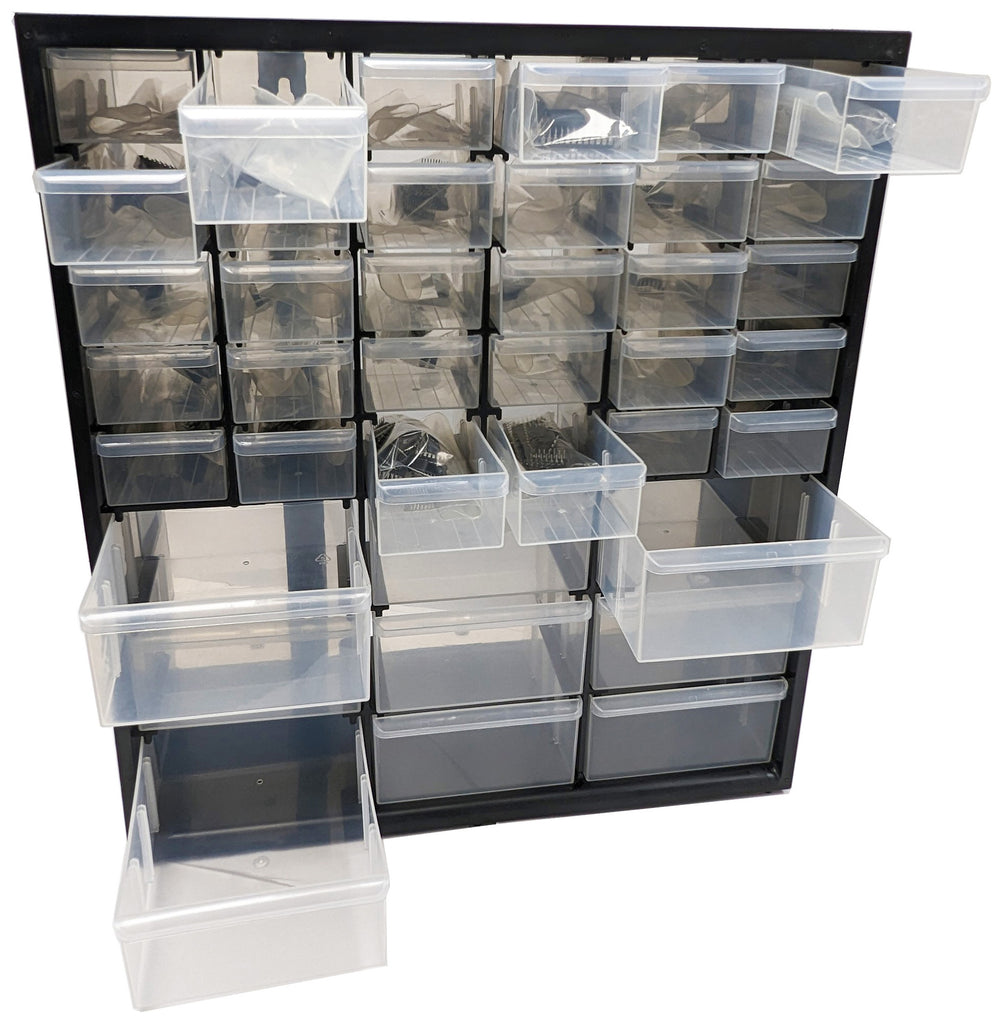

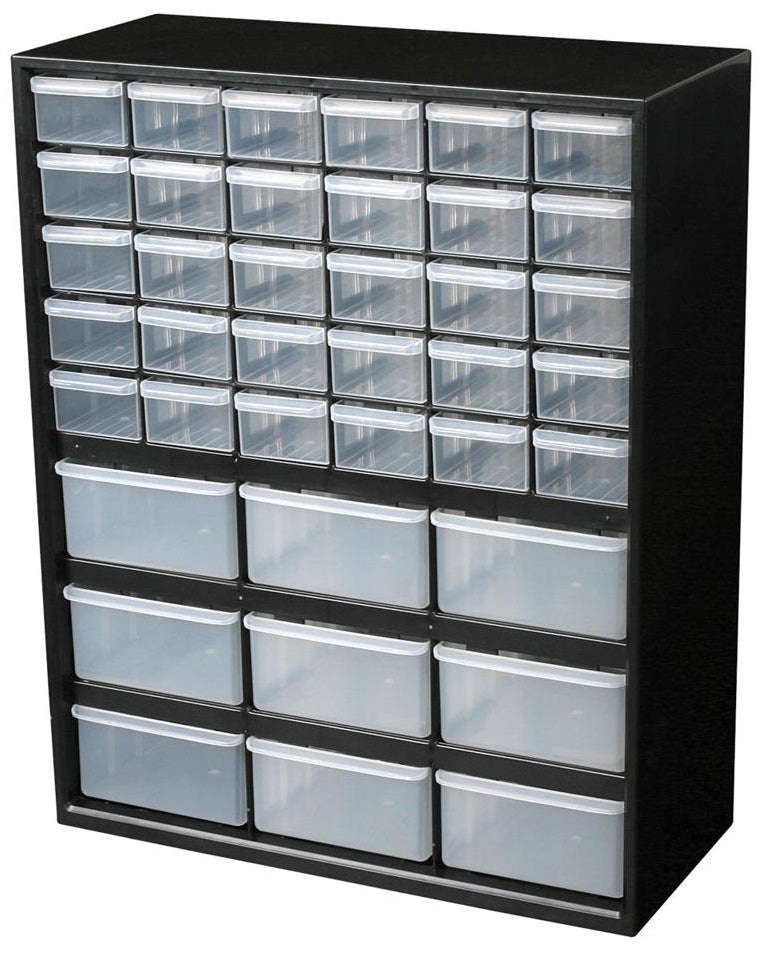

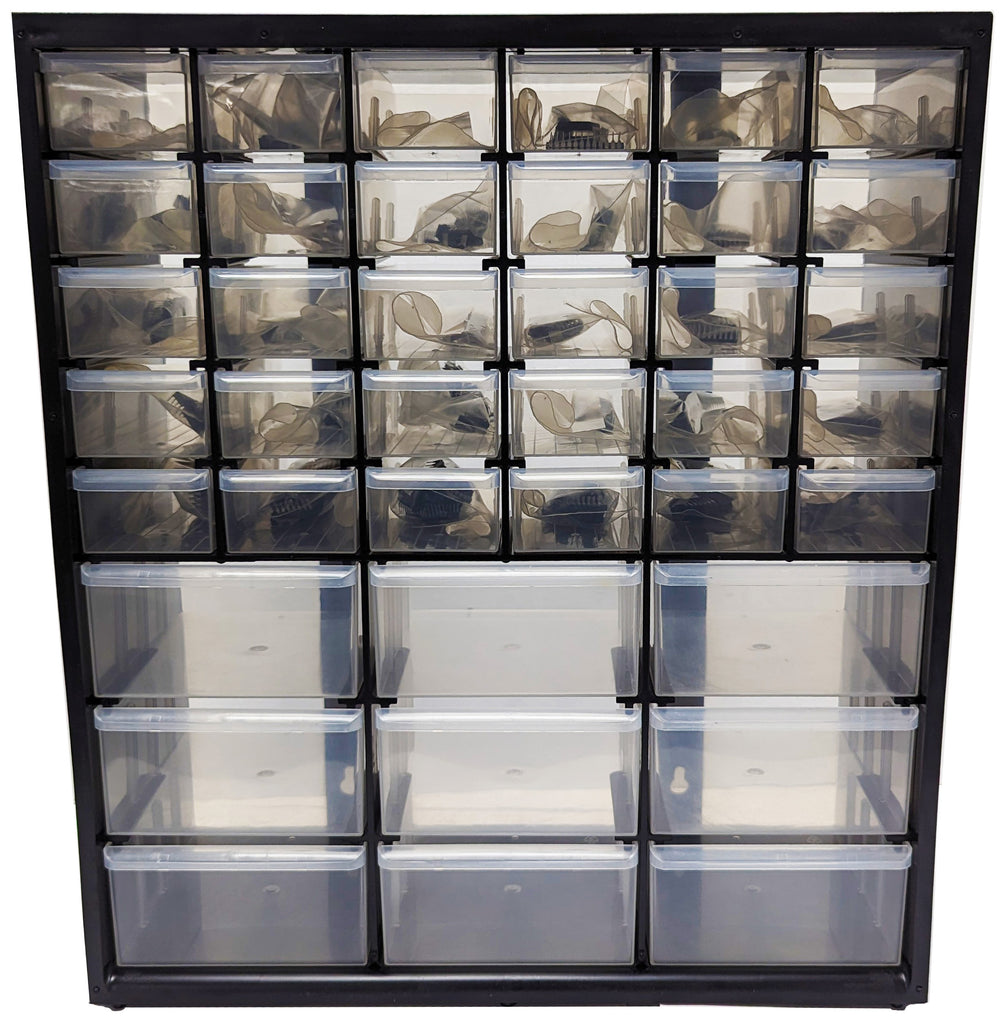

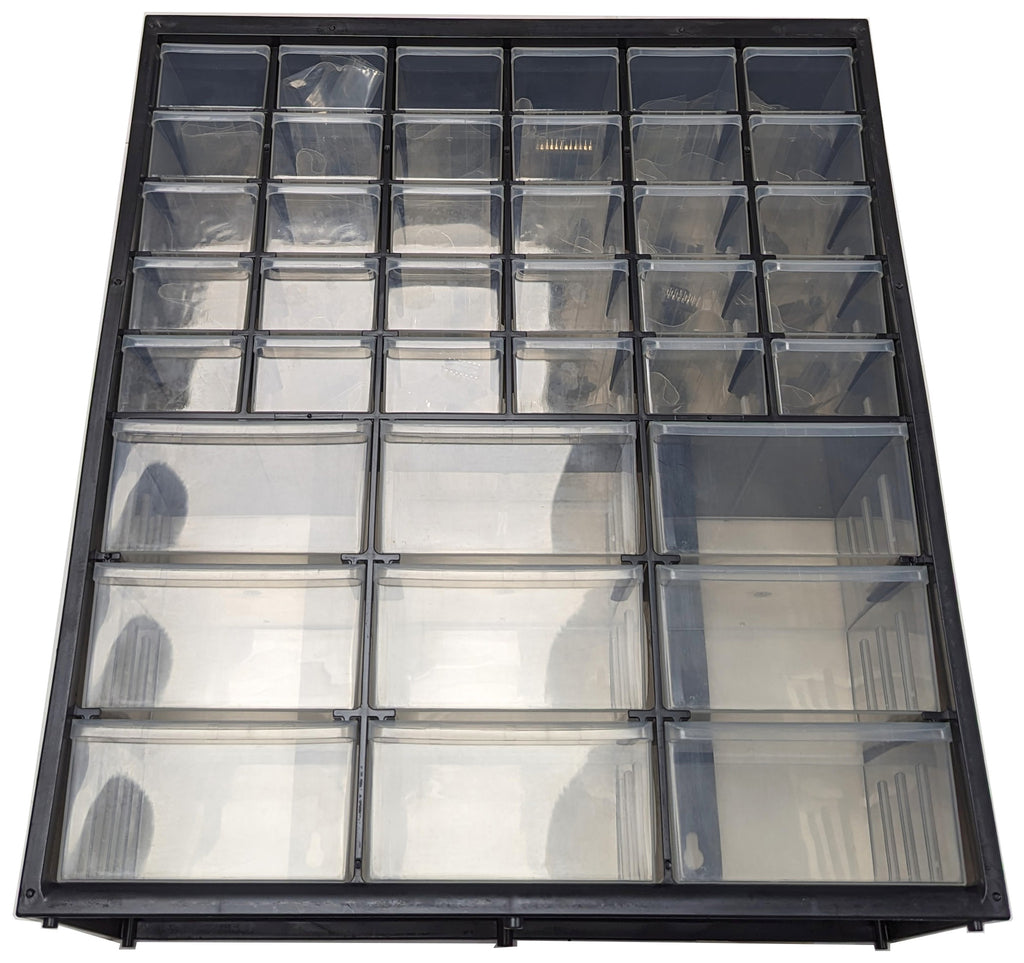

This 330 Piece IC Assortment includes 35 different types of the most popular 7400 Series ICs, stored in a convenient 39 drawer component cabinet that measures 14.4" x 6.2" x 17.9". Note that the component cabinet's contents may vary slightly. It contains 5 pieces of 7450, 7489, 7490, 74154, 74174, 74175, 10 pieces of 7402, 7405, 7410, 7427, 7414, 7417, 7420, 7432, 7447, 7473, 74151, 74153, 74157, 7486, 7493, 74121, 74123, 74160, and 20 pieces of 7400, 7404, 7406, 7407, 7408, 7474.
- 330 Piece IC Assortment includes 35 different types of the most popular 7400 Series ICs, stored in a convenient 39 drawer component cabinet
- NOTE: Contents of cabinet component kits are subject to slight change based on parts availability.

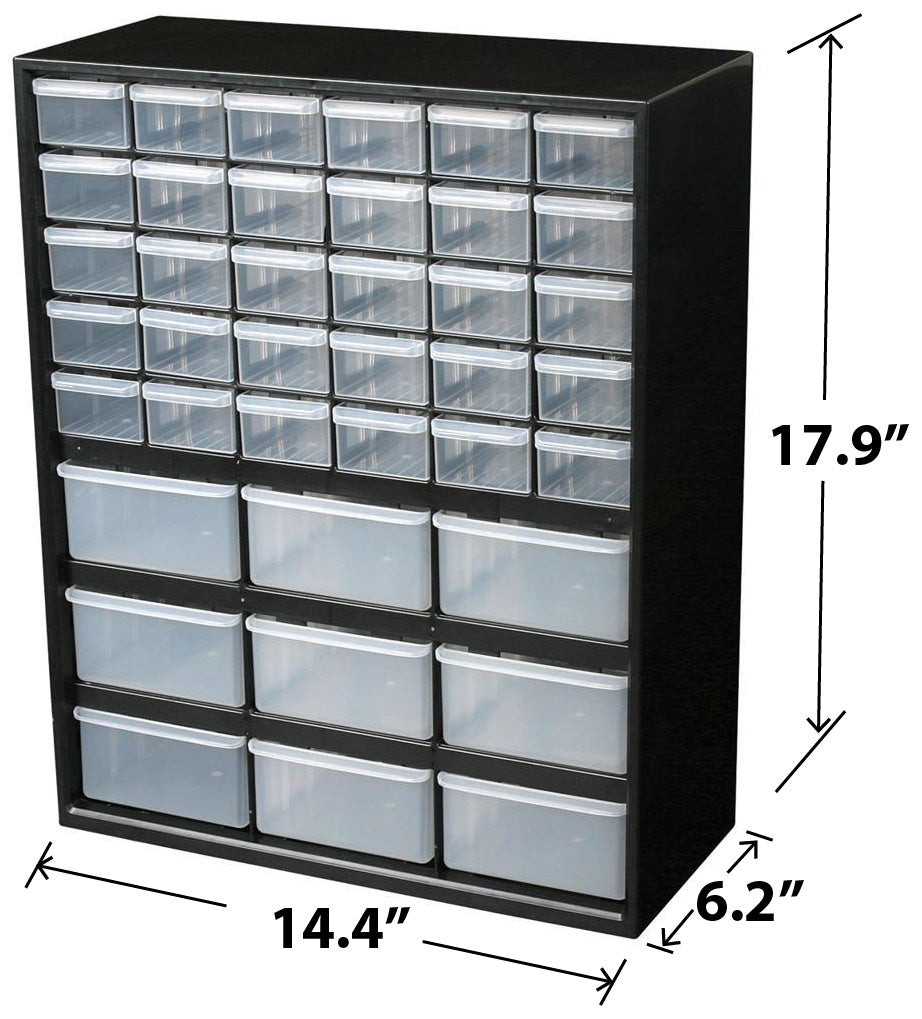

- Storage Unit Dimensions - 14.4 x 6.2 x 17.9 inches

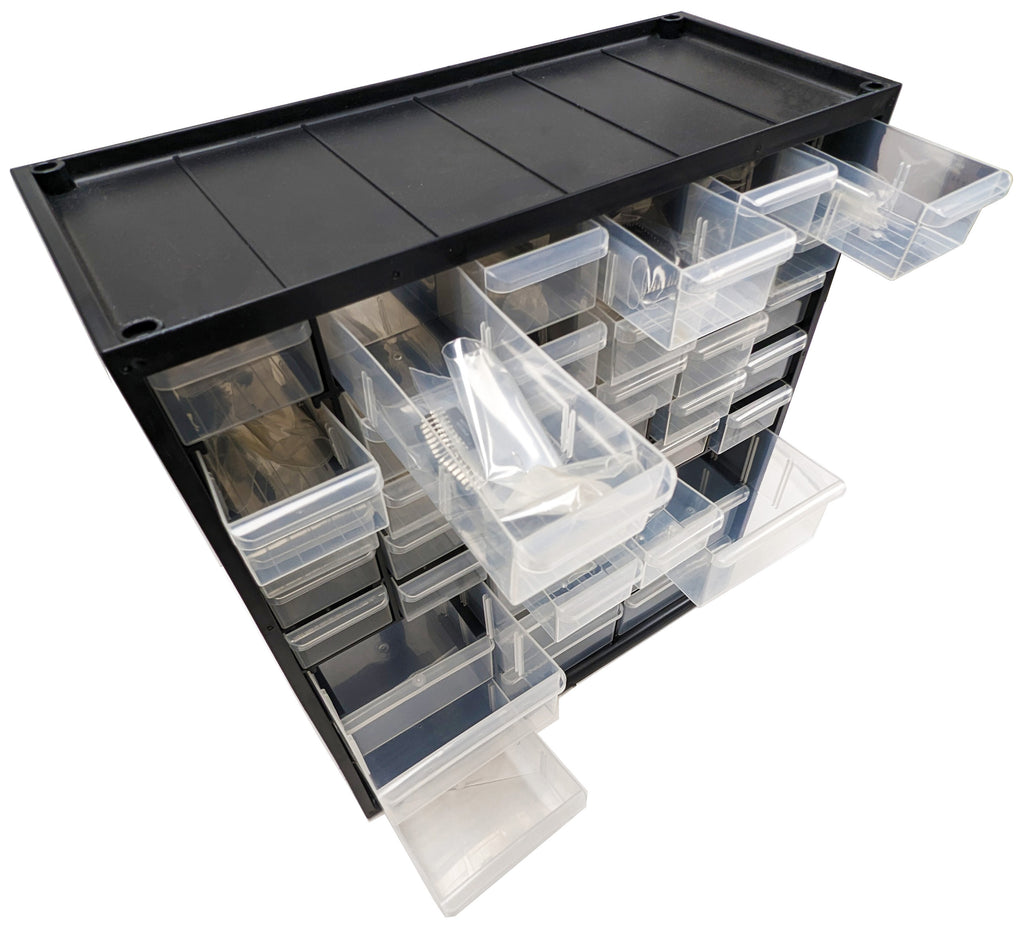

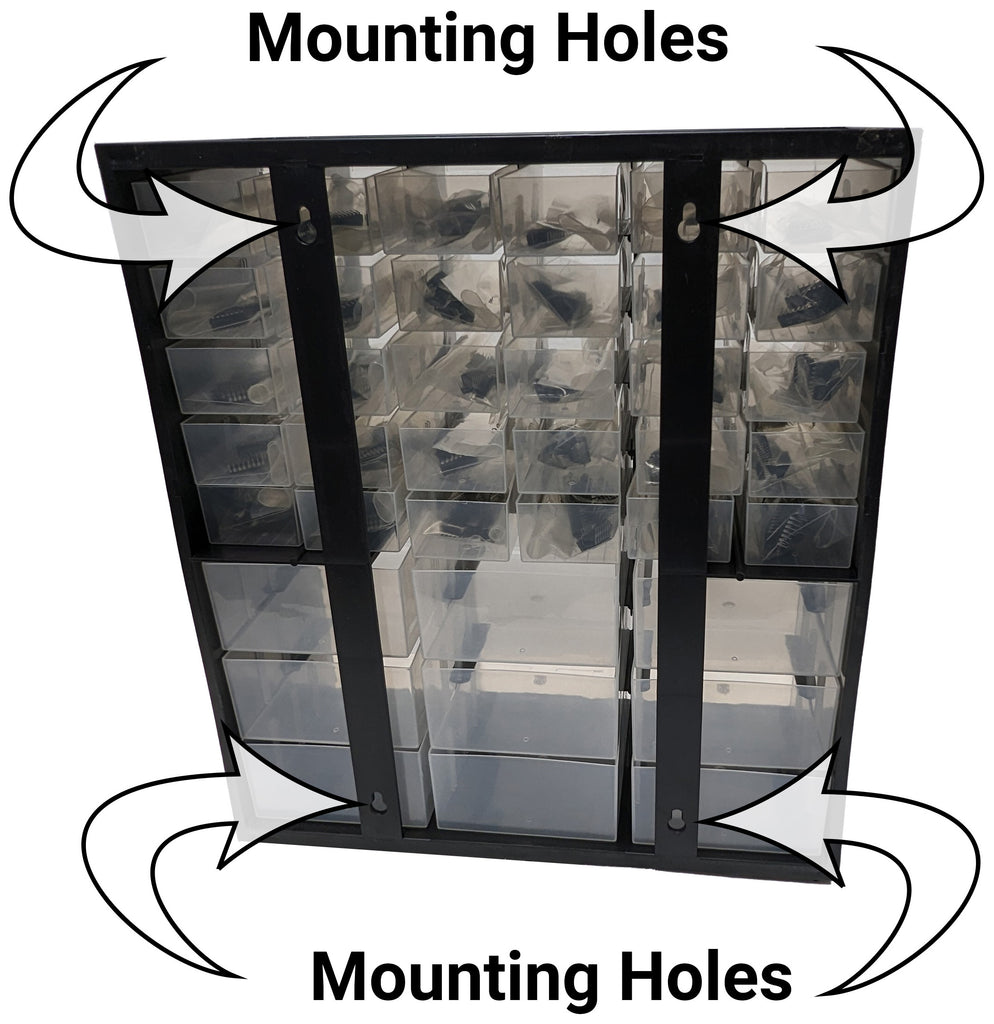

- Cabinet features 4 wall mounting holes on the back and drawer stops to prevent spills
- This kit contains 5 pieces each of the following IC's:
- 7450 - Dual 2−Wide 2−Input AND/OR Invert Gate
- 7489 - 64-Bit Read/Write Memory
- 7490 - BCD Decade Counter
- 74154 - 4 to 16 Line Decoder/Demultiplexer
- 74174 - Hex D-Type Flip Flop
- 74175 - Quad D-Type Flip Flop
- 10 pieces each of the following IC's:
- 7402 - Quad 2-Input NOR Gate
- 7405 - Hex Inverter with Open Collector Output
- 7410 - Triple 3-Input NAND Gate
- 7427 - Triple 3-Input NOR Gate
- 7414 - Hex Inverter Schmitt Trigger
- 7417 - Hex Buffer/Driver
- 7420 - Dual 4-input NAND Gate
- 7432 - Quad 2-input OR Gate
- 7447 - BCD to 7-segment Decoder/Driver
- 7473 - Dual JK Flip-Flop with Clear
- 74151 - 8-Input Multiplexer
- 74153 - Dual 4 to 1 Selector/Multiplexer
- 74157 - Quad 2/1 Data Selector
- 7486 - Quad EXCLUSIVE-OR Gate
- 7493 - 4-bit Binary Counter
- 74121 - Monostable Multivibrator
- 74123 - Dual Mono Multi. With Clear
- 74160 - Decade Counter with Asynch. Clear
- 20 pieces each of the following IC's:
- 7400 - Quad 2-input NAND Gate
- 7404 - Hex Inverter
- 7406 - Hex Inverter Buffer/Driver
- 7407 - Hex Buffer
- 7408 - Quad 2-input AND Gate
- 7474 - Dual D Flip-Flop
