420 Piece 74LS Series IC Assortment Kit with 35 Types of Low-Power Schottky TTL ICS in Electronic Component Cabinet Storage Case

SKU: 3200TTLLS

  • Sale
  • Regular price $249.00

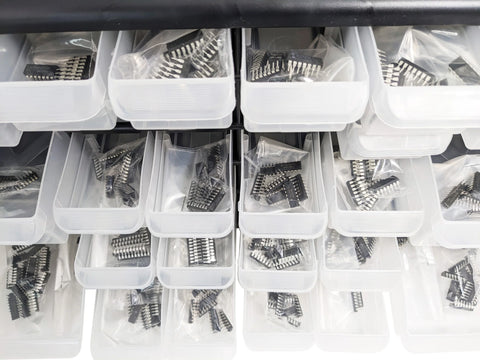

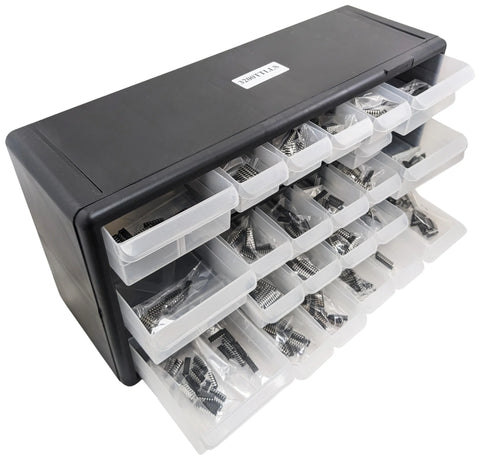

  • 420 piece kit comes with 35 different types of the most popular 74LS TTL ICs separated in a convenient component storage cabinet
  • Includes 10 pieces each of the following ICs: 74LS05, 74LS07, 74LS10, 74LS11, 74LS14, 74LS20, 74LS30, 74LS47, 74LS73, 74LS75, 74LS76, 74LS85, 74LS86, 74LS90, 74LS93, 74LS123, 74LS125, 74LS139, 74LS151, 74LS157, 74LS174, 74LS193, 74LS240, 74LS244, 74LS245, 74LS273, 74LS373, and 74LS374
  • Also includes 20 pieces each of the following ICs: 74LS00, 74LS02, 74LS04, 74LS08, 74LS32, 74LS74, and 74LS138

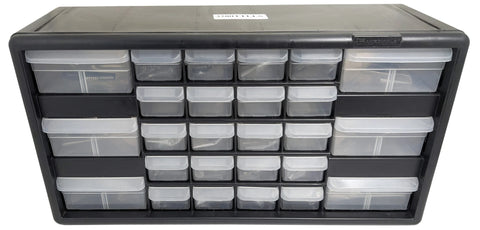

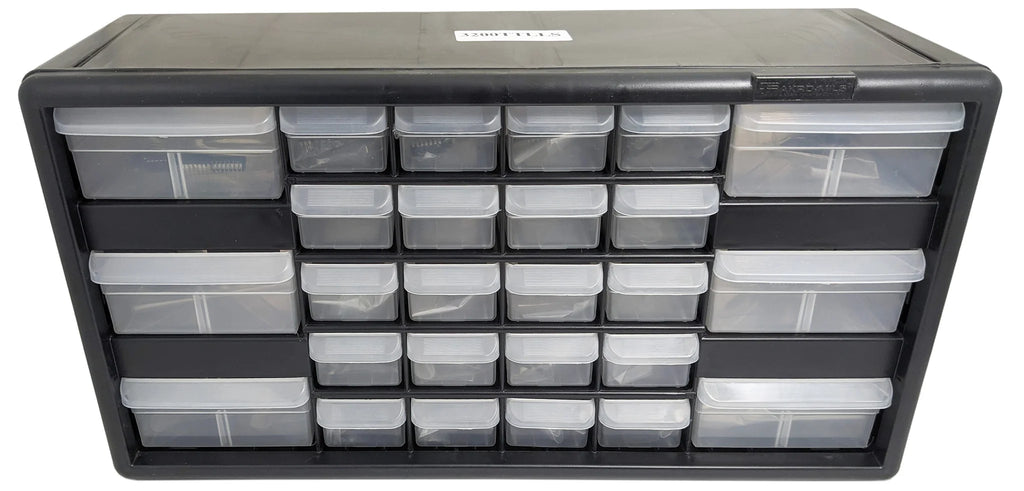

  • Cabinet has 39 pull-out drawers total; 30 Small and 9 Large. Each drawer contains a different IC part number, except for 4 drawers at the bottom that are empty for storing whatever you would like.

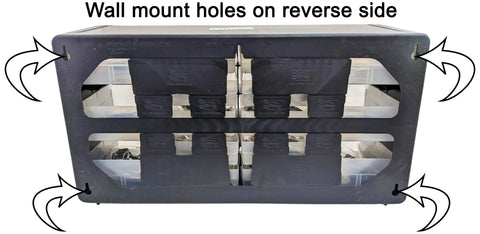

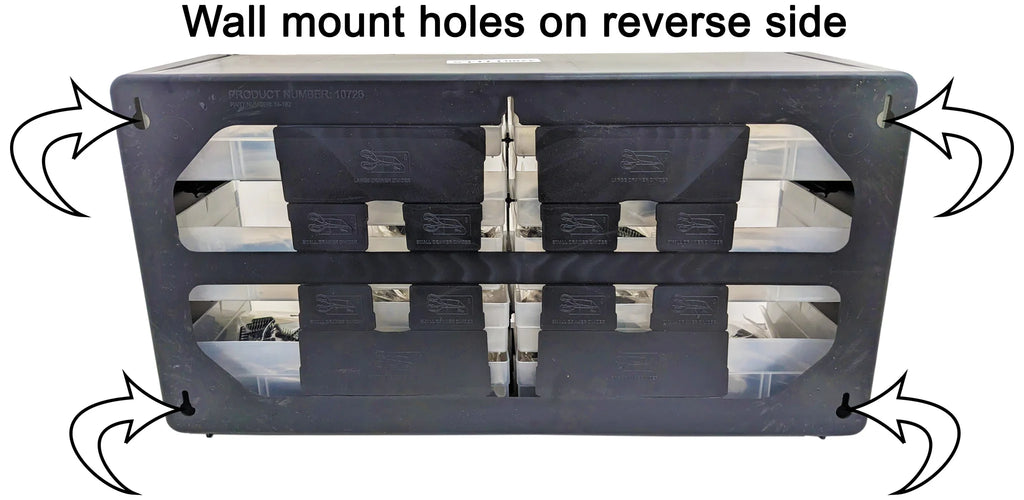

  • Measures 14.30" x 6" x 16.30" and weighs 5.6 pounds. Features four wall mounting slots on the back for 3/16 inch screws.

Includes 10 of each of the following ICs:

  • 74LS05 - Hex Inverter (O.C.)
  • 74LS07 - Hex Buffer Driver (O.C.)
  • 74LS10 - Triple 3-Input NAND Gate
  • 74LS11 - Triple 3-Input AND Gate
  • 74LS14 - Hex Inverter Schmitt Trigger
  • 74LS20 - Dual 4-Input Pos. NAND Gate
  • 74LS30 - 8-Input Pos. NAND Gate
  • 74LS47 - BCD-To-7 Seg. Decoder Driver (15v Out)
  • 74LS73 - Dual JK Flip-Flop With Clear
  • 74LS75 - 4-Bit Bistable Latch
  • 74LS76 - Dual JK Flip-Flop W Preset and Clr.
  • 74LS85 - 4-Bit Magnitude Comparator
  • 74LS86 - Quad 2-Input XOR Gate
  • 74LS90 - Decade Counter
  • 74LS93 - 4-Bit Binary Counter
  • 74LS123 - Dual Retrig. MS Multivibrator
  • 74LS125 - Quad 3-State Bus Buffer
  • 74LS139 - Dual 2-To-4 Decoder Demux
  • 74LS151 - 8-Channel Dig. Multiplexer
  • 74LS157 - Quad 2-To-1 Data Selector Mux
  • 74LS174 - Hex D Flip-Flop With Clear
  • 74LS193 - 4-Bit Binary Up Down Counter
  • 74LS240 - Octal Buffer Line Driver 3-St.
  • 74LS244 - Octal Buffer 3-St.
  • 74LS245 - Octal Bus Transceiver 3-St.
  • 74LS273 - Octal D Flip-Flop With Clear
  • 74LS373 - Octal Transparent Latch
  • 74LS374 - Octal Dual Flip-Flop 3-State

Includes 20 of each of the following ICs:

  • 74LS00 - Quad 2-Input NAND Gate
  • 74LS02 - Quad 2-Input NOR Gate
  • 74LS04 - Hex Inverter
  • 74LS08 - Quad 2-Input AND Gate
  • 74LS32 - Quad 2-Input Pos. OR Gate
  • 74LS74 - Dual D-Type Flip-Flop W Preset and Clr.
  • 74LS138 - 3-To-8 Line Decoder Demux
