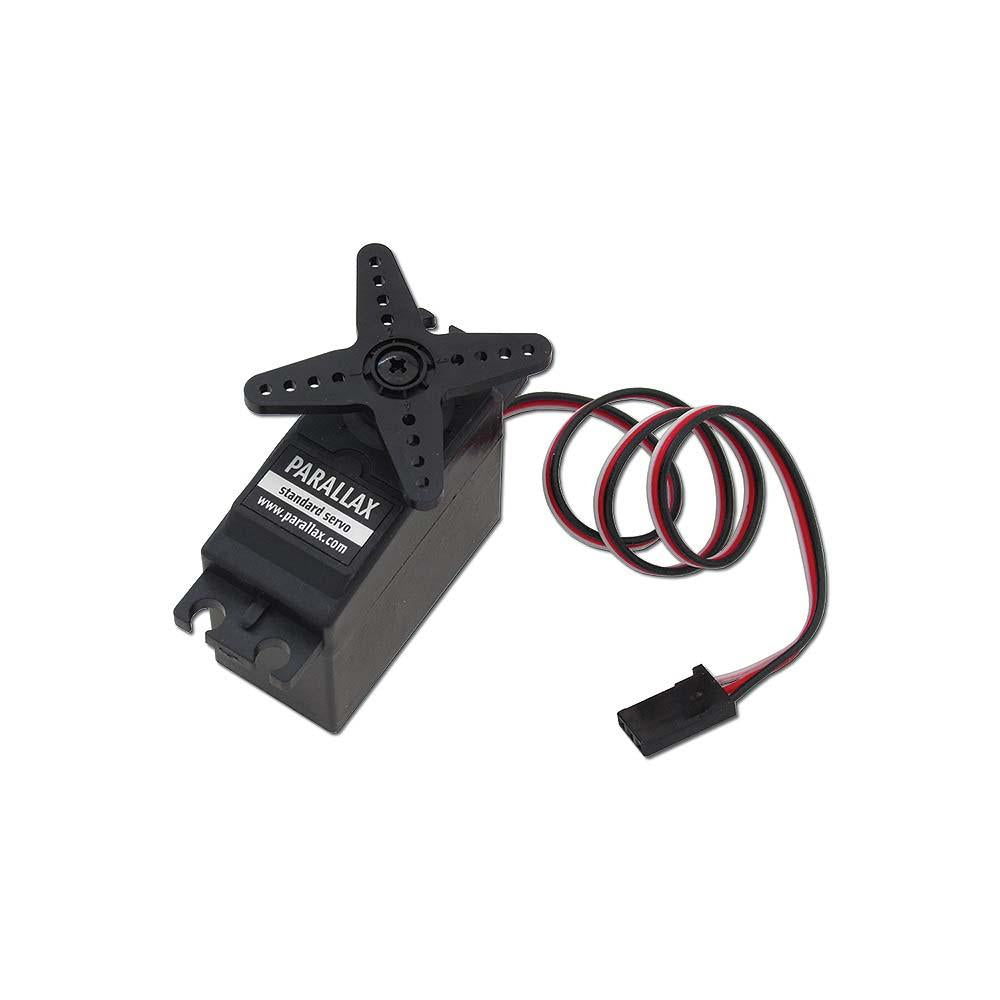

The Parallax Standard Servo was designed for Parallax’s educational kits and is offered here as a replacement part. It is ideal for robotics and basic movement projects. It can hold any position over a 180-degree range and is easily interfaced with any Parallax microcontroller. See our Standard Servo Tutorials for examples.
Parallax Standard Servo Key Features:
- Holds any position between 0 and 180 degrees
- 38 oz-in torque at 6 V
- Accepts four mounting screws
- High precision gear made of the POM (polyacetal) resin makes for smooth operation with no backlash
- Weighs only 1.55 oz (44 g)
Note: Servo current draw can spike while under load. Be sure that your application’s power supply and voltage regulator is prepared to supply adequate current for all servos used. Do not try to power this servo directly from a BASIC Stamp module’s Vdd or Vin pins; do not connect the servo’s Vss line directly to the BASIC Stamp module’s Vss pin.
Parallax Standard Servo Details:
- Power Requirements: 4 to 6 VDC*,
- Communication: Pulse-width modulation
- Gear material: Acetal copolymer
- Spline: 3F 25-tooth
- Dimensions: 2.2 x 0.8 x 1.6 in (55.8x 19 x 40.6 mm) excluding servo horn
- Operating temp range: +14 to +144 °F (-10 to +50 °C)
- Torque: 38 oz-in @ 6 V
