½ Watt Resistor and Capacitor Combo Kit - Includes an Assortment of 365 Resistors and 220 Capacitors in Slotted Storage Boxes

SKU: 32RESCAPKIT

  • Sale
  • Regular price $22.95


  • This combo set includes our 365 piece 1/2 Watt Resistor kit and 220 piece Capacitor kit
  • 1/2 Watt Resistor Kit includes most commonly used values (5 pieces each of 73 different values)
  • Deluxe Capacitor Kit includes disc, mylar, monolithic and electrolytic capacitors (5 pieces each of 44 different values ranging from 2.2 pF to 1000 µF)

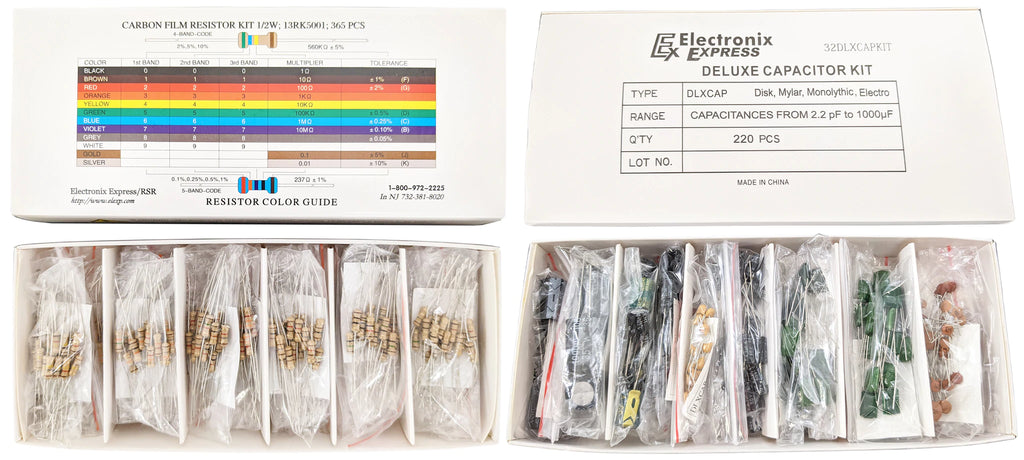

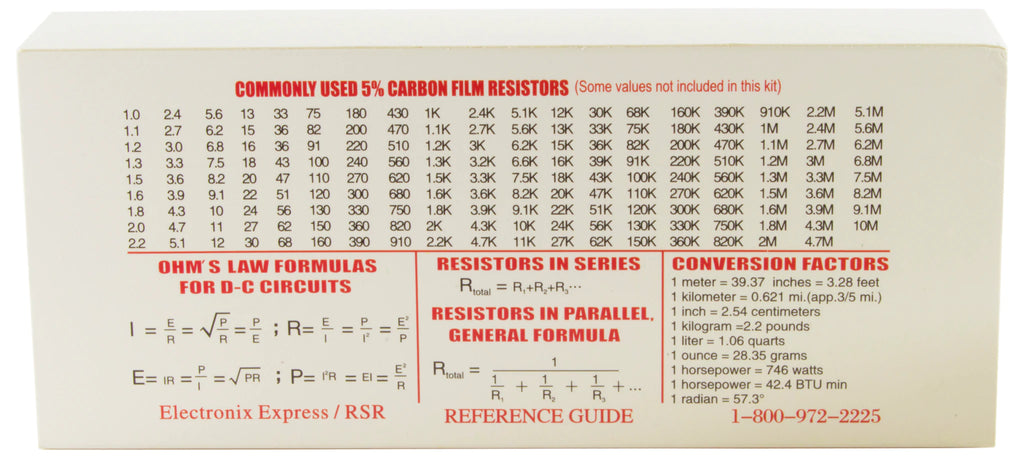

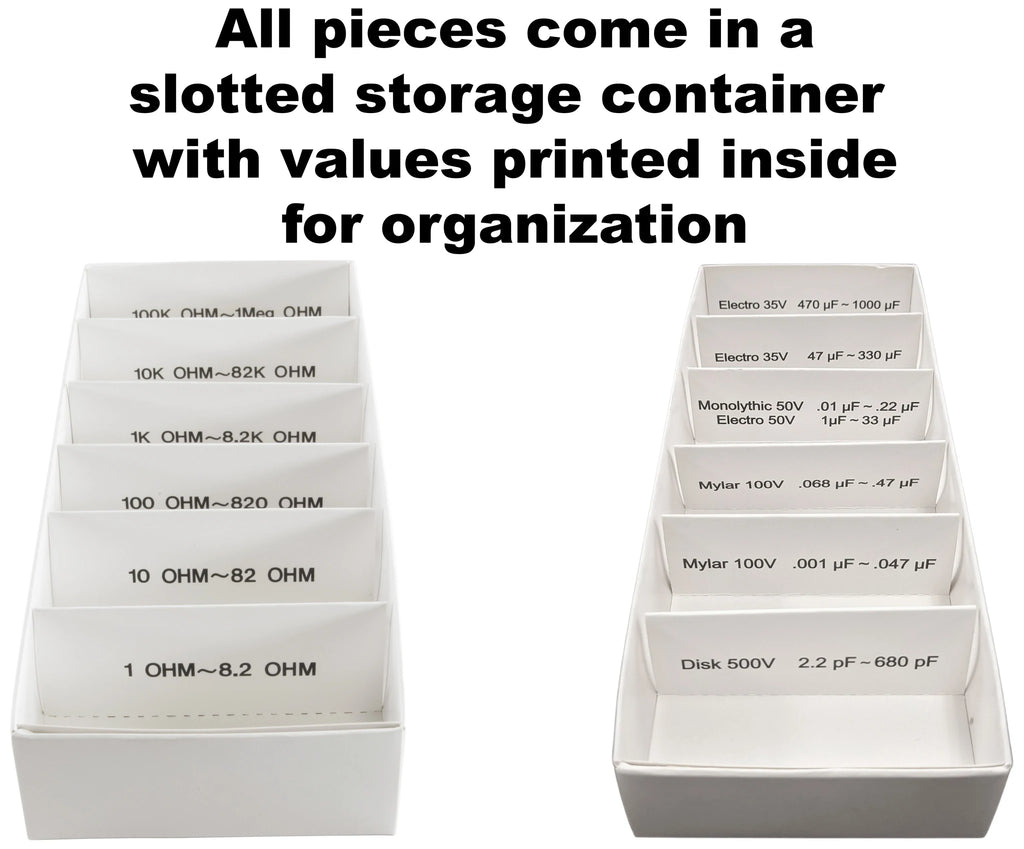

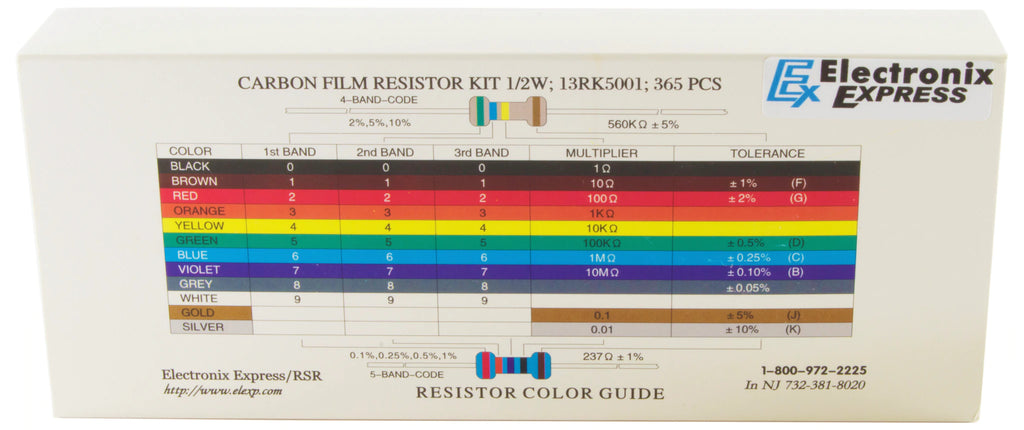

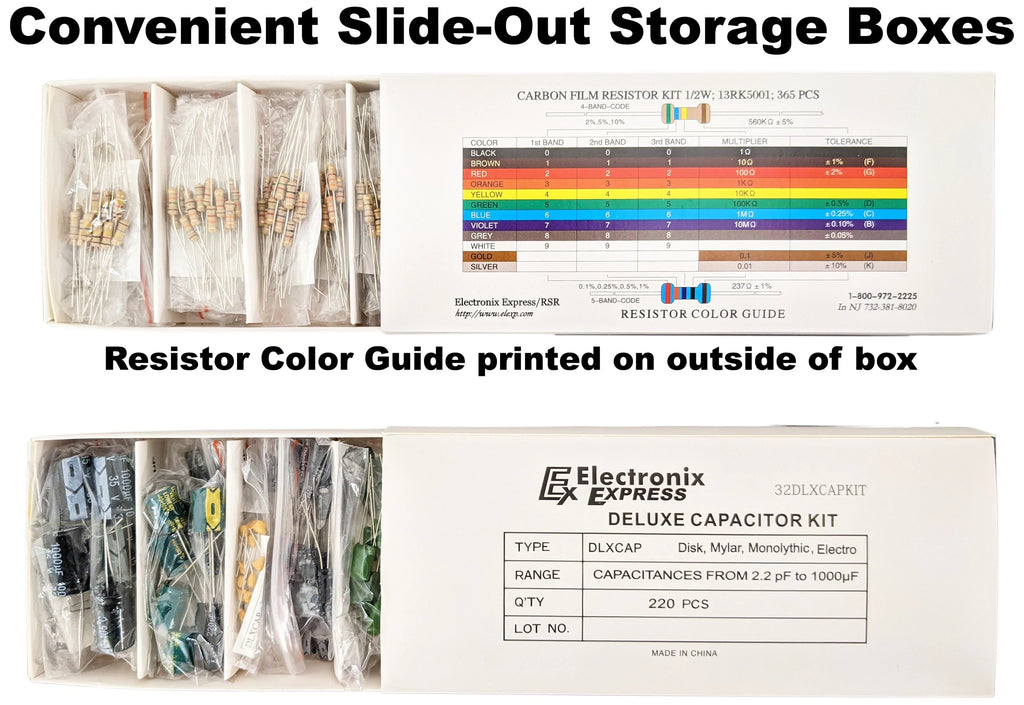

  • The kits come in slotted storage boxes with values printed inside each slot for organization and easy access. The resistor kit features a Resistor Color Guide and Reference Guide printed on the box.
  • See description below for full list of included resistor and capacitor values

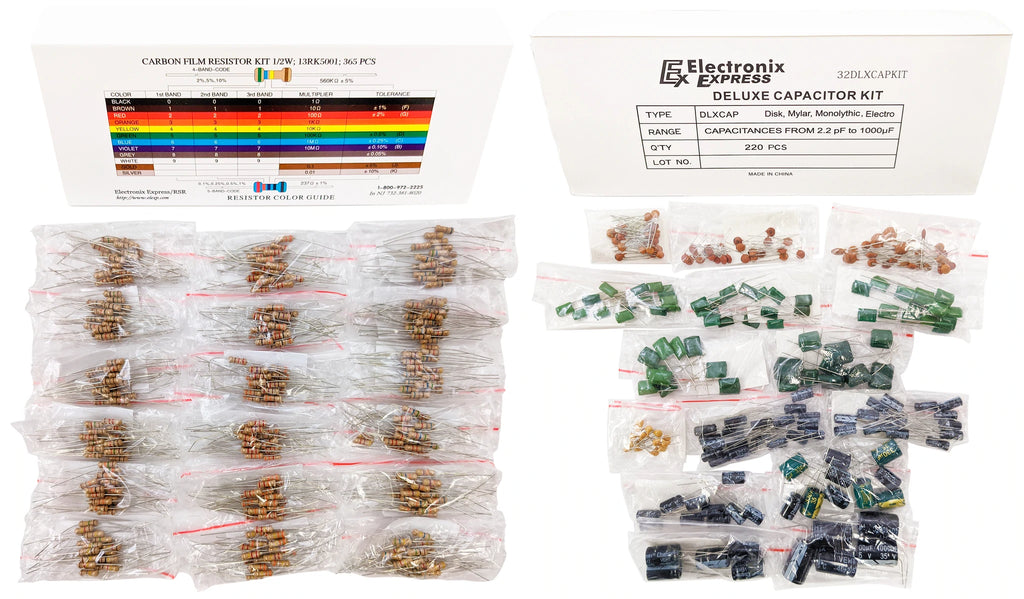

This combo set includes our 365 piece 1/2 Watt Resistor kit (Part # 13RK5001) and 220 piece Deluxe Capacitor kit (Part # 32DLXCAPKIT).

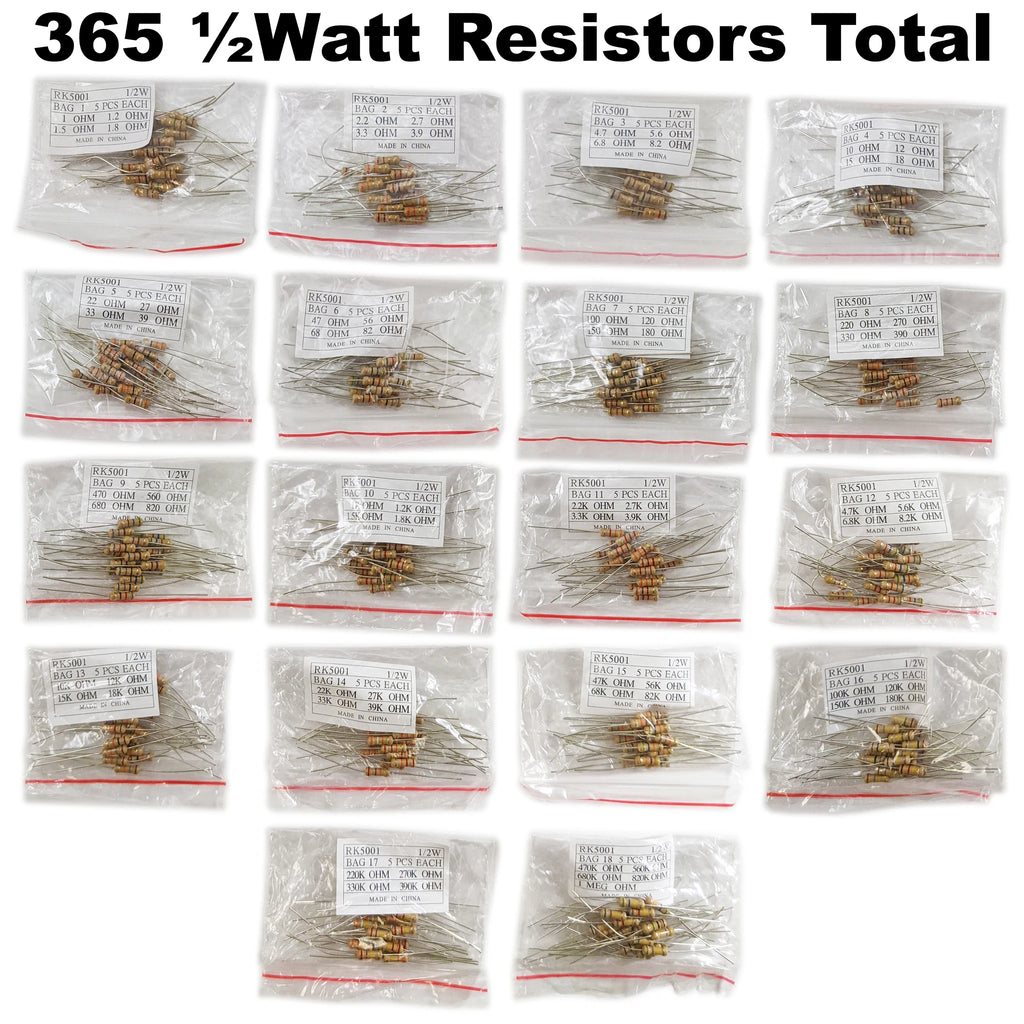

1/2 Watt Resistor Kit:
  • Contains most commonly used values
  • Total of 365 resistors
  • Includes 5 each of 73 standard 5% carbon film resistors in the series: 1.0, 1.2, 1.5, 1.8, 2.2, 2.7, 3.3, 3.9, 4.7, 5.6, 6.8, 8.2, 10, 12, 15, 18, 22, 27, 33, 39, 47, 56, 68, 82, 100, 120, 150, 180, 220, 270, 330, 390, 470, 560, 680, 820, 1K, 1.2K, 1.5K, 1.8K, 2.2K, 2.7K, 3.3K, 3.9K, 4.7K, 5.6K, 6.8K, 8.2K, 10K, 12K, 15K, 18K, 22K, 27K, 33K, 39K, 47K, 56K, 68K, 82K, 100K, 120K, 150K, 180K, 220K, 270K, 330K, 470K, 560K, 680K, 820K, 1M

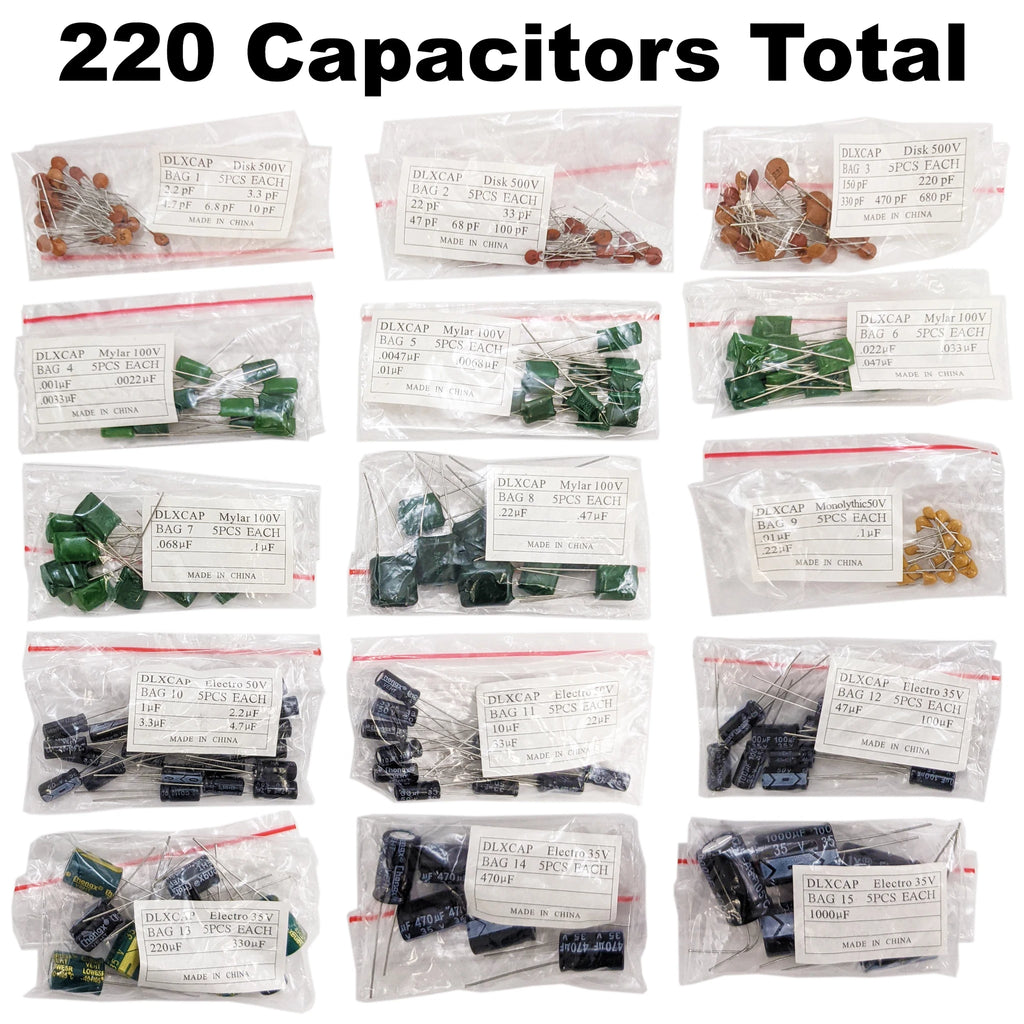

Deluxe Capacitor Kit:
  • Tremendous assortment of disc, mylar, monolithic and electrolytic capacitors
  • Total of 220 capacitors
  • 5 pieces each of 44 different values ranging from 2.2 pF to 1000 µF. Full list of the included capacitors:
  • 5 each of the following DISK (500V) capacitors:
    • 2.2 pF
    • 3.3 pF
    • 4.7 pF
    • 6.8 pF
    • 10 pF
    • 22 pF
    • 33 pF
    • 47 pF
    • 68 pF
    • 100 pF
    • 150 pF
    • 220 pF
    • 330 pF
    • 470 pF
    • 680 pF
  • 5 each of the following MYLAR (100V) capacitors:
    • 0.001 µF
    • 0.0022 µF
    • 0.0033 µF
    • 0.0047 µF
    • 0.0068 µF
    • 0.01 µF
    • 0.022 µF
    • 0.033 µF
    • 0.047 µF
    • 0.068 µF
    • 0.1 µF
    • 0.22 µF
    • 0.47 µF
  • 5 each of the following MONOLITHIC (50V) capacitors:
    • 0.01 µF
    • 0.22 µF
  • 5 each of the following ELECTRO RADIAL capacitors:
    • 50V: 1 µF, 2.2 µF, 3.3 µF, 4.7 µF, 10 µF, 22 µF, 33 µF
    • 35V: 47 µF, 100 µF, 220 µF, 330 µF, 470 µF, 1,000 µF
