Electronix Express

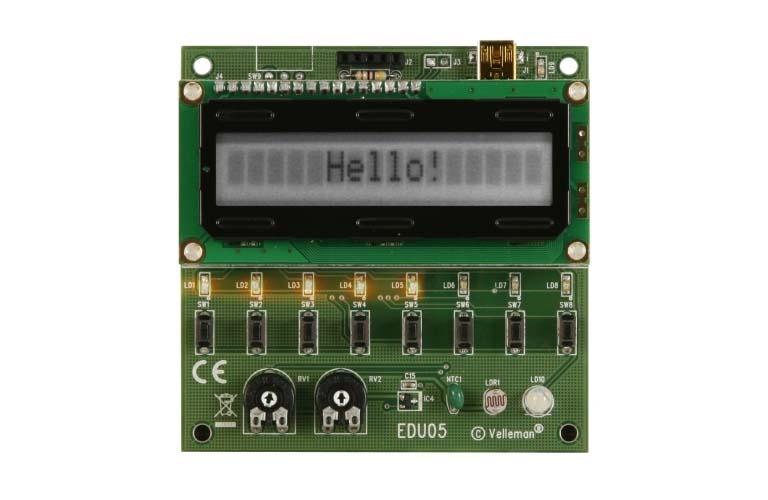

USB Tutor Mounted

SKU: 32VKEDU05

  • Sale
  • Regular price $69.95



Starting from an already made example program, this module will teach you how to:
  • Read up to 8 push buttons and activate a PC event
  • Light up to 8 LEDs using your PC
  • Read the value of 2 different potentiometers (analog value)
  • Read and display the temperature on the PC
  • Read the value of a temperature dependent resistor (NTC)
  • Read the value of a light dependant resistor (LDR)
  • Dim a white LED using your PC
  • Learn how to display text on an LCD using your PC
  • Learn how to combine the above and use the LCD to display push button press, display values..
Specifications
  • USB powered + LED indicator
  • PC with windows XP or higher (internet needed for software download)
  • Digital input/output:
  • 8 definable push buttons
  • 8 definable LEDs
  • 1 White LED
  • Analog input:
  • Temperature sensor
  • NTC resistor
  • LDR resistor
  • 2 potentiometers
Display:
  • 16 character 1 line LCD
Includes:
  • USB cable
  • Board dimensions: 75 x 75mm / 3x3"
