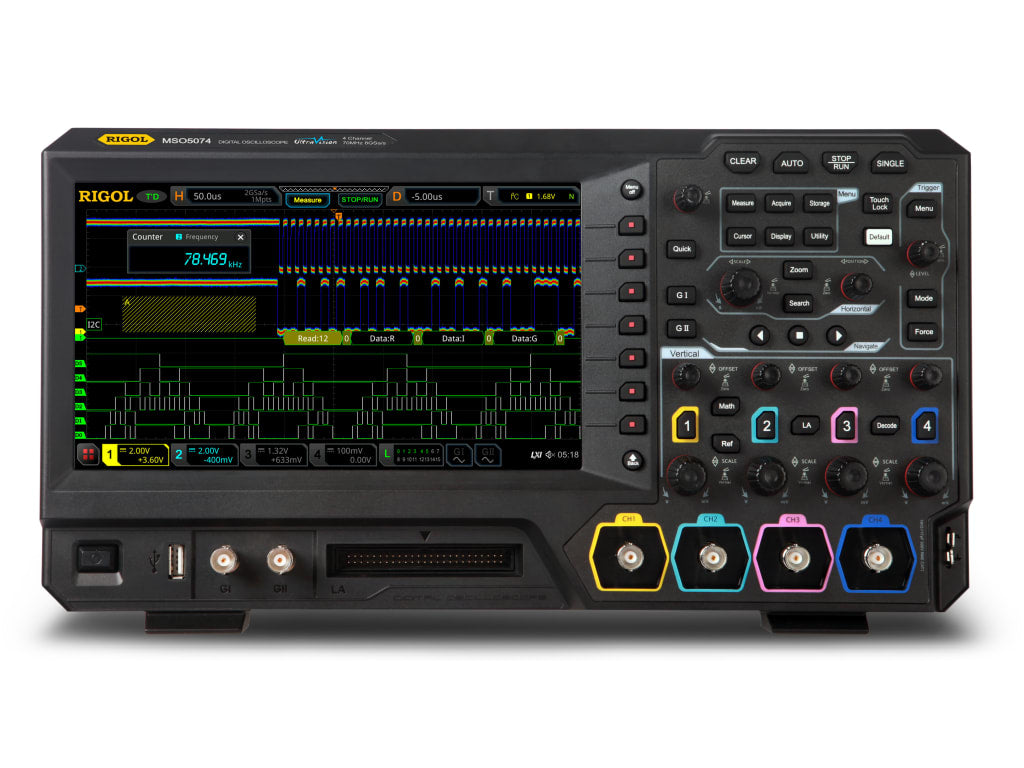

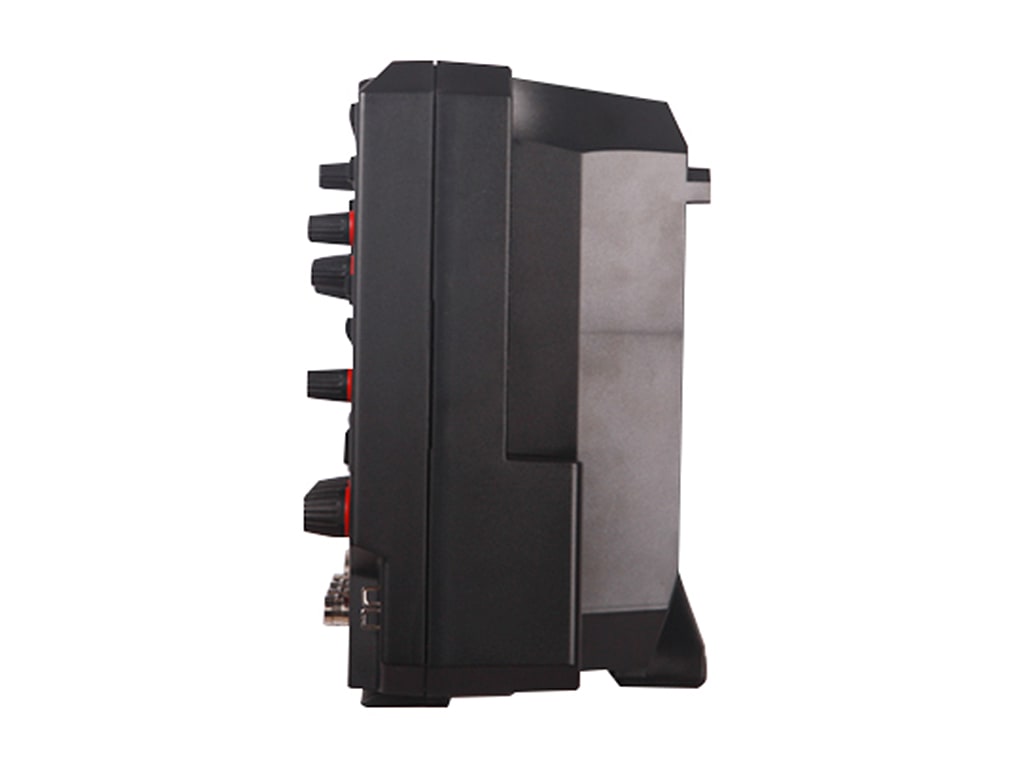

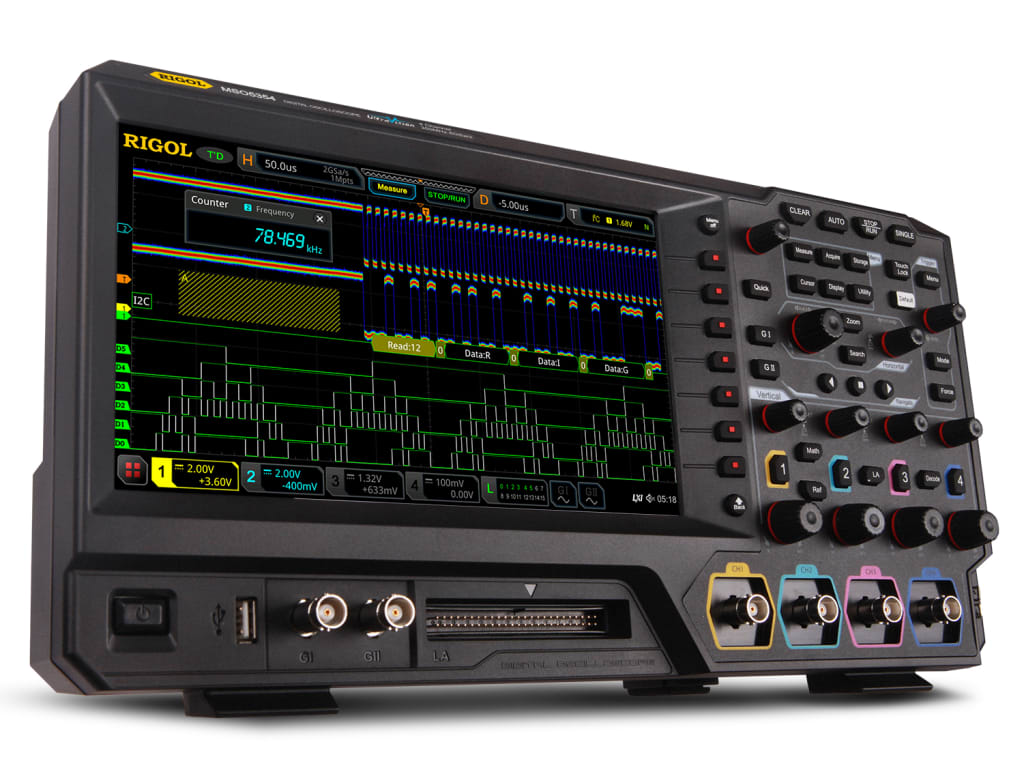

Rigol MSO5074 - 4 Channel, 70 MHz Digital Mixed Signal Oscilloscope

SKU: 01MSO5074

  • Sale
  • Regular price $999.00

The Rigol MSO5074 is a four channel digital / mixed signal oscilloscope with a real time sample rate of up to 8 GSa/s. Easily upgraded, it features a 100 Mpts memory depth which is upgradable to 200 Mpts via software key code. It also includes 16 digital channels as a standard feature - simply add the optional PLA2216 logic probe to operate.

The Rigol MSO5000 series digital oscilloscope is a high performance instrument based on Rigol’s UltraVision II technology. With a real time sample rate of up to 8 GSa/s and extremely high memory depth, the MSO5000 seamlessly integrates 7 instruments into one - oscilloscope, logic analyzer, spectrum analyzer, arbitrary waveform generator and much more. The MSO5000 also features a 9 inch, capacitive multi touch screen with 256 level intensity grading and color persistence.

  • Four channel, 70 MHz digital / mixed signal oscilloscope
  • Up to 8 GSa/s real-time sample rate
  • 100 Mpts memory depth, optional memory depth up to 200 Mpts
  • 16 digital channels included - requires optional PLA2216 logic probe to operate
  • High waveform capture rate (over 500,000 wfm/s)
  • Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
  • Remote wireless control software - migrate instrument control and waveform analysis to PC
  • Auto measurement of 41 waveform parameters; full-memory hardware measurement function
  • Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
  • Integrates 7 independent instruments into 1 - Digital Oscilloscope, Logic Analyzer, Spectrum Analyzer, Arbitrary Waveform Generator (Option), Digital Voltmeter, High-precision Frequency Counter and Totalizer, Protocol Analyzer (Option)
