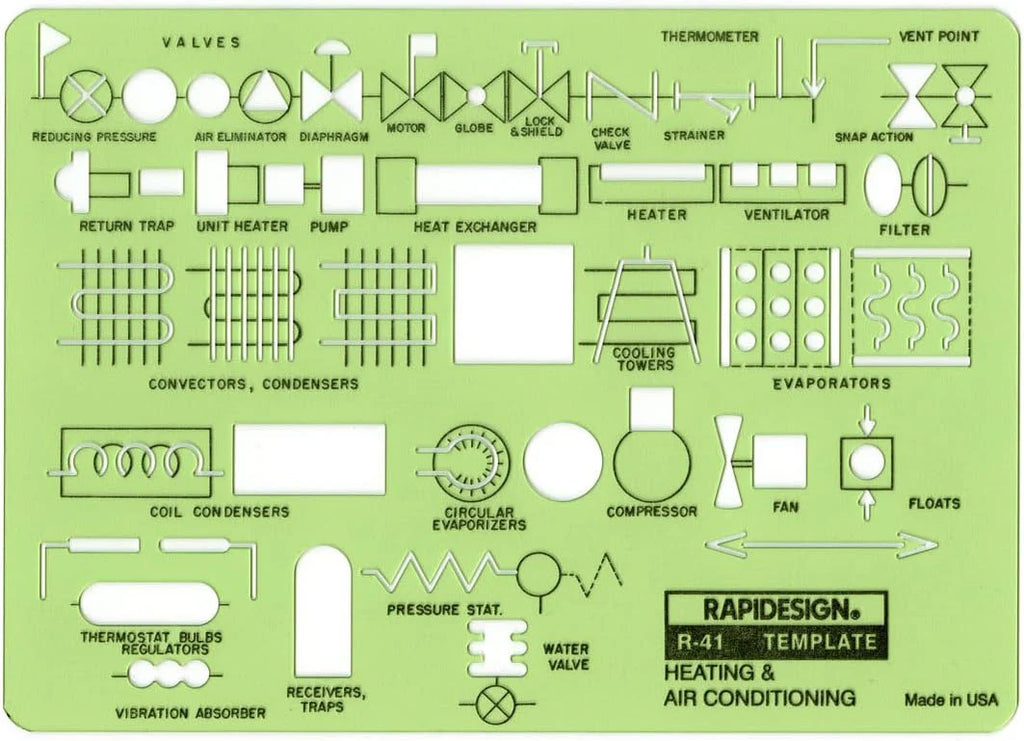

The Rapidesign R41 Heating and Air Conditioning Template contains standard heating, ventilation and air conditioning symbols conforming to ASA Z32.2.3 and Z32.2.4. The template measures 7 x 5 x 0.03 inches in translucent green plastic and is made in the USA. Used for drawing HVAC and mechanical plans. Model: R41 (SKU 90LA41R). Sold by Electronix Express (elexp.com).
- Conforms to ASA Z32.2.3 and ASA Z32.2.4
- Standard symbols for heating and air conditioning
- Template size 7 x 5 x 0.03 inches
- Translucent green template
- Made in USA
Specifications
-
Model: R41
-
Standards: ASA Z32.2.3, ASA Z32.2.4
-
Size: 7 x 5 x 0.03 in
-
Color: translucent green
-
Origin: USA
Frequently Asked Questions
Which standards do the symbols on the Rapidesign R41 follow?
ASA Z32.2.3 and ASA Z32.2.4.
How big is the template?
7 x 5 x 0.03 inches.
