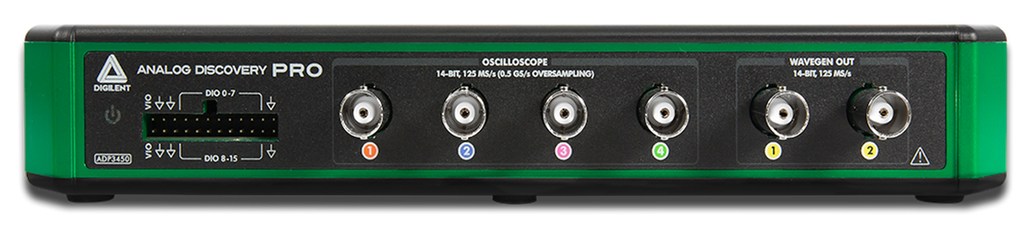

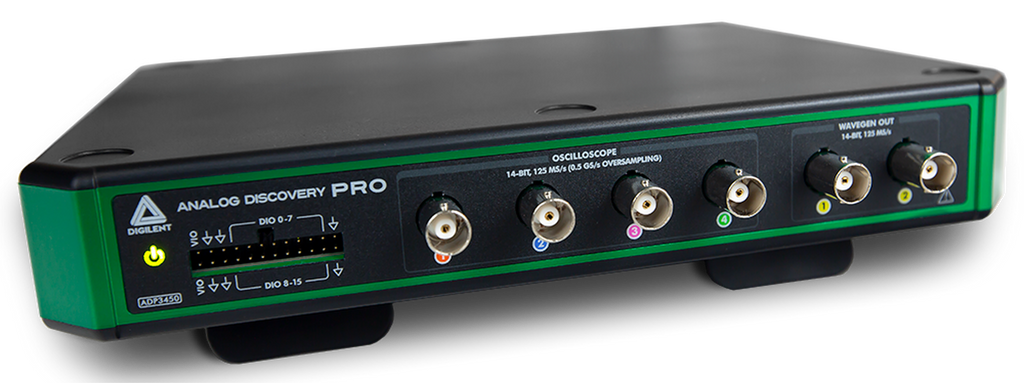

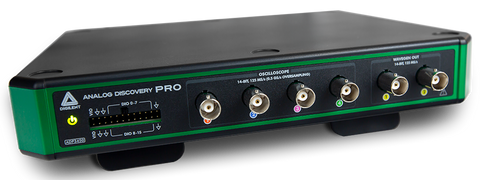

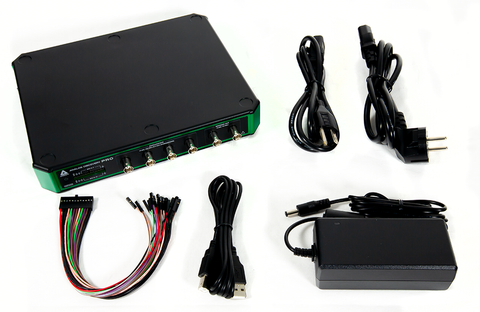

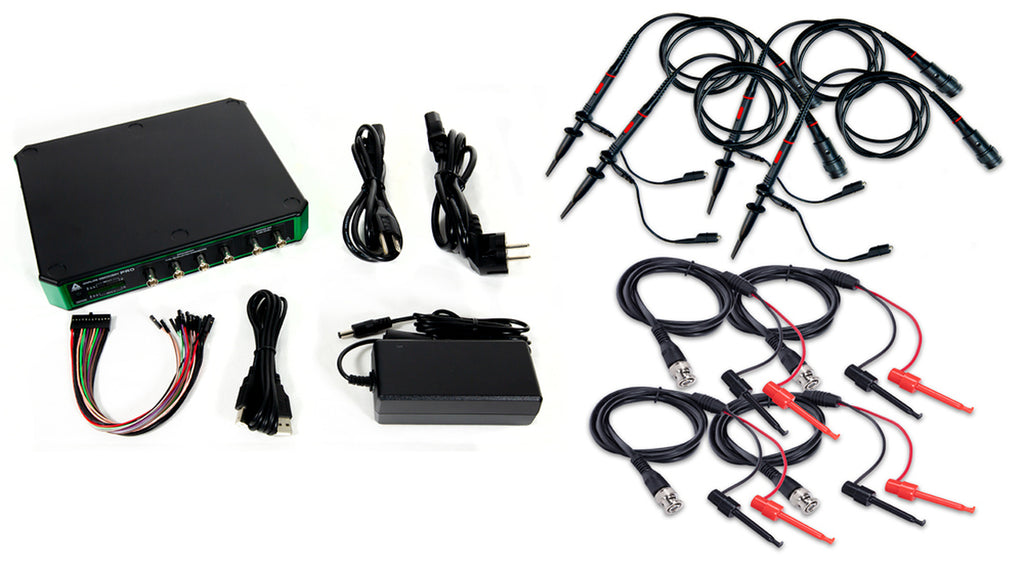

Analog Discovery Pro 3000 Series (ADP3450): Portable High Resolution Mixed Signal Oscilloscope

SKU: 01DIG410394

  • Sale
  • Regular price $1,290.00

What is the Analog Discovery Pro 3000 Series?

Devices in the Analog Discovery Pro 3000 series provide the utility of professional benchtop equipment with the flexibility of a portable instrument. With myriad choices available for test and measurement devices, adding to your benchtop can be a daunting task, especially sorting through which features on your new instrument are included versus what you'll need to pay extra for. With the ADP3450, every listed feature is an included feature, making it an investment that will last - at a price without surprises.



  • Analog Inputs:

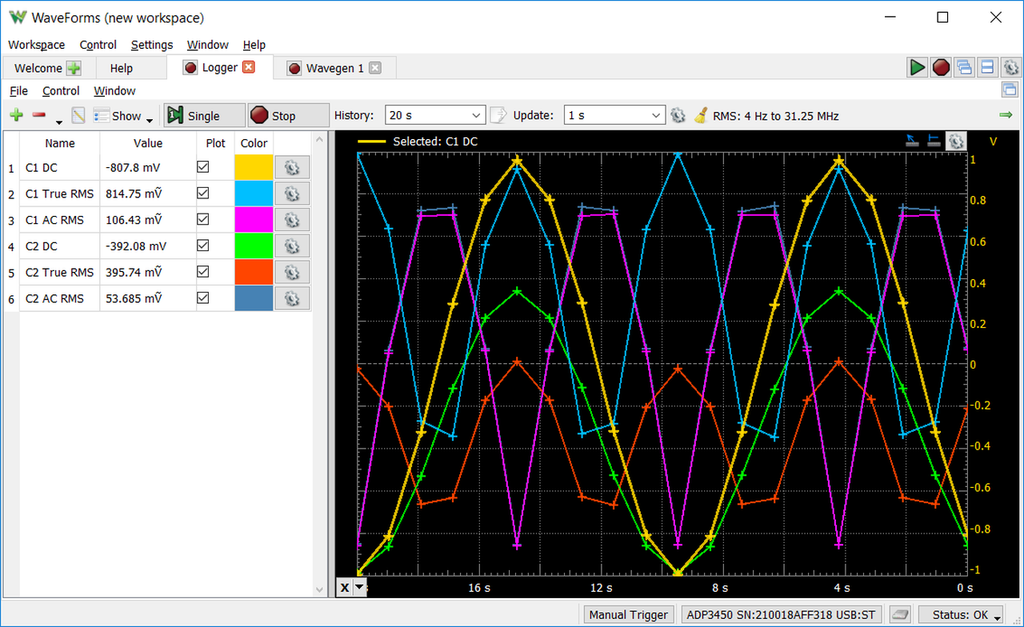

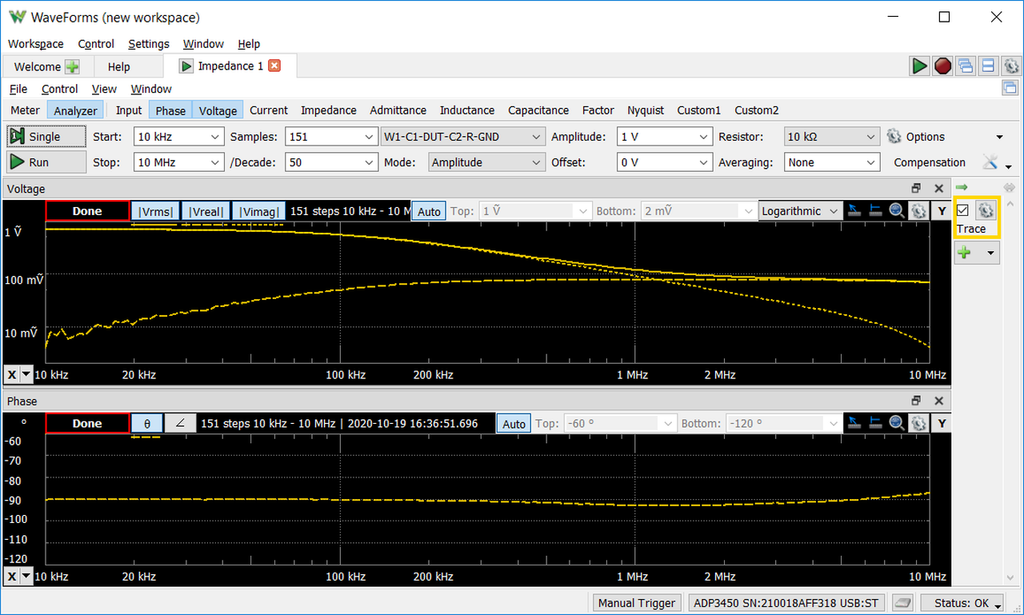

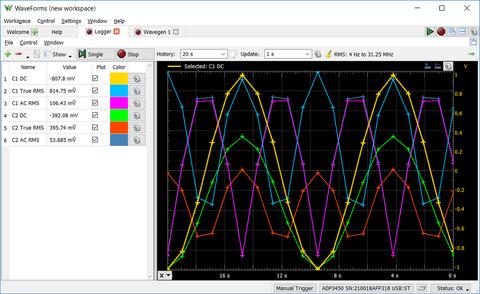

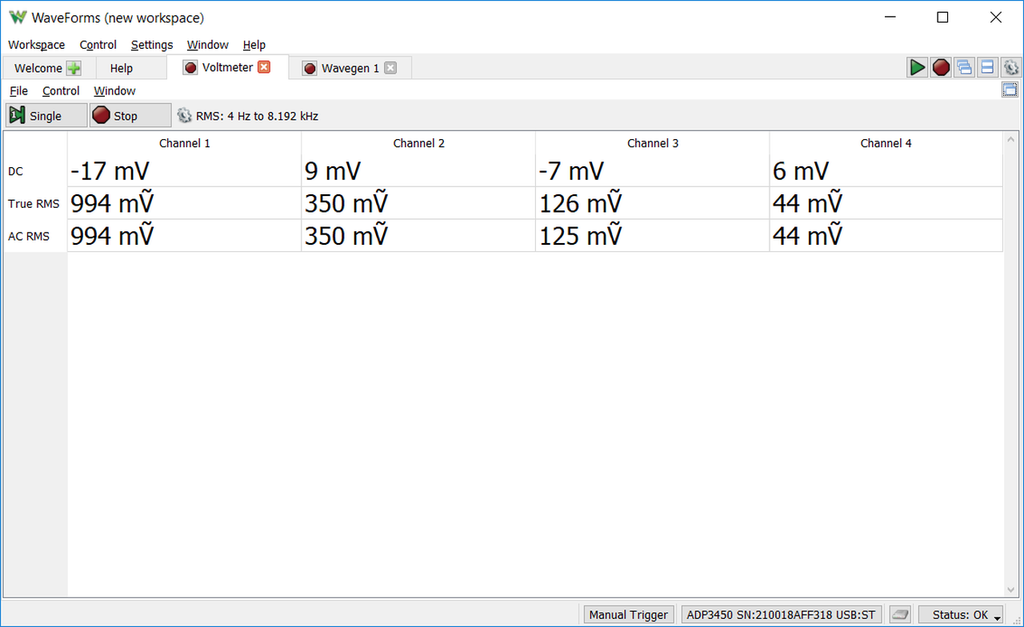

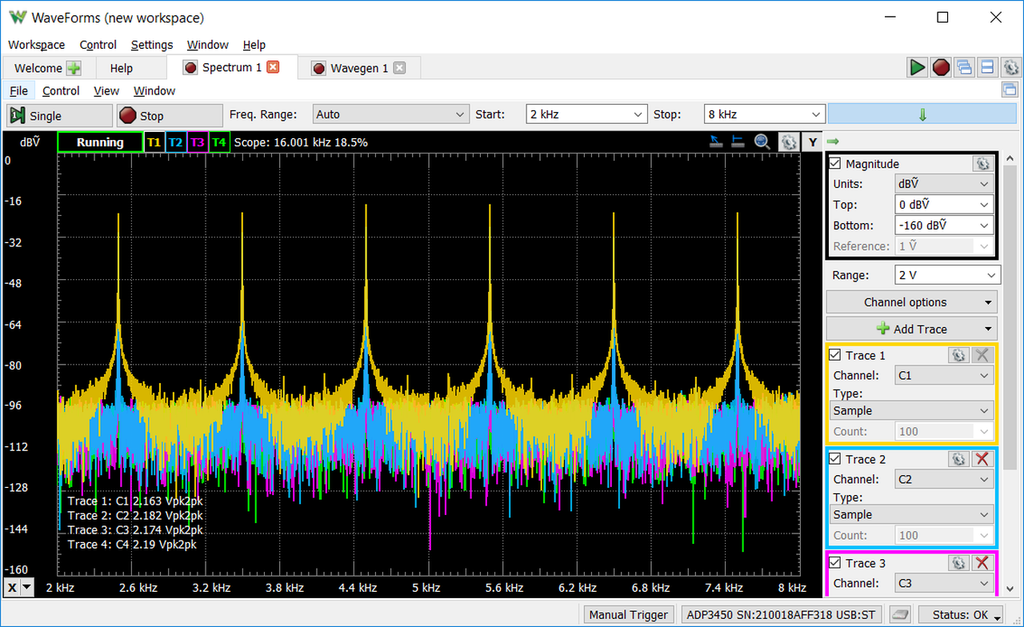

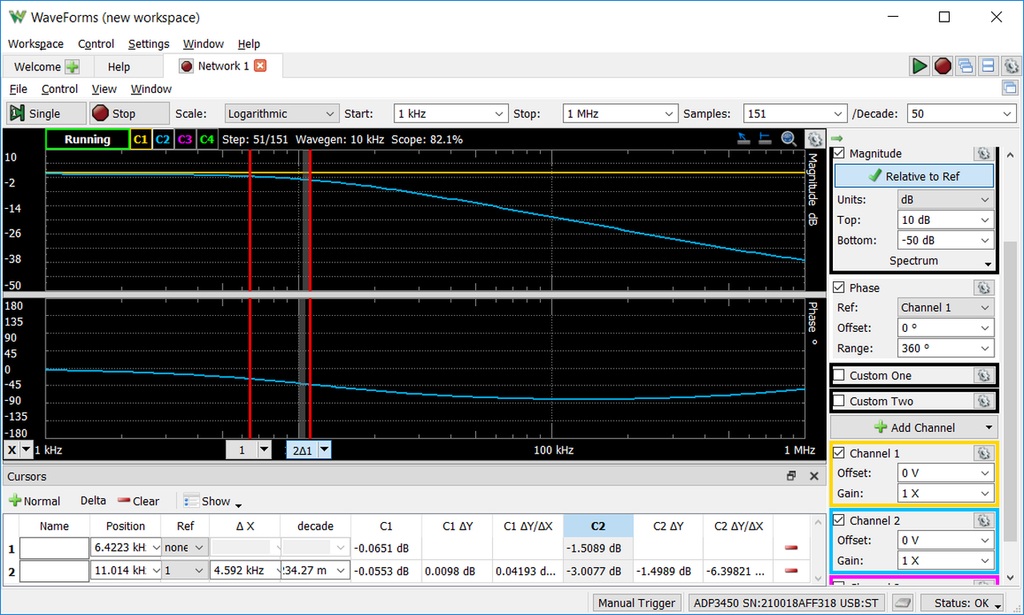

    • Used in the Oscilloscope, Network Analyzer, Spectrum Analyzer, Voltmeter, Impedance Analyzer, and Data Logger

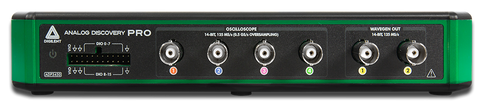

    • ADP3450: Four analog input channels accessible via front panel BNC connectors
    • ADP3250: Two analog input channels accessible via front panel BNC connectors
    • Channel type: single ended
    • Analog bandwidth: 55+ MHz @ 3 dB
    • Noise limiting hardware bandwidth filter: 20 MHz
    • Can be enabled or disabled
    • 14-bit resolution (16-bit resolution with oversampling)
    • Input range ±25 V (±50 V diff)
    • Input protected to ±50 V
    • Max sampling rate:
    • 0.5 GS/s (with oversampling enabled)
    • 100 MS/s default
    • AC or DC coupling
    • Input buffer Size
    • 128 MS total in record mode
    • 32 k + samples per channel in repeated/shift/screen modes
    • Channel type: single-ended

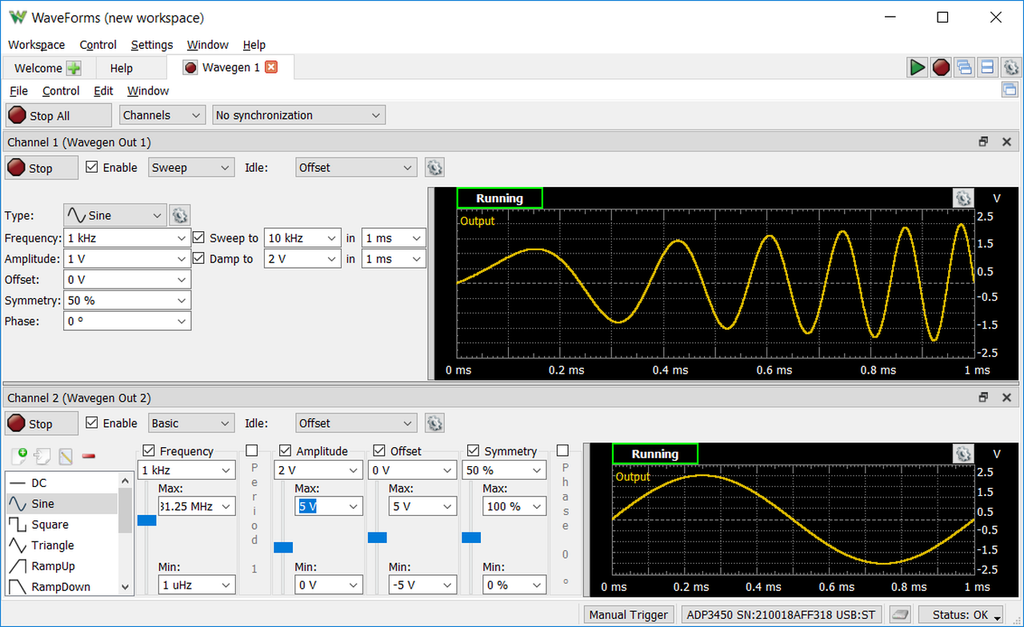

  • Analog Outputs:
    • Used in the Waveform Generator, Impedance Analyzer, and Network Analyzer
    • Two arbitrary waveform generator channels, accessible via front panel BNC connectors
    • 14-bit Resolution
    • AC amplitude (max): ±5 V
    • Analog bandwidth: 15 MHz @ 3 dB
    • Maximum Sampling Rate: 125 MS/s

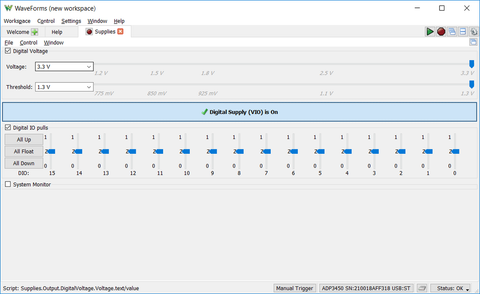

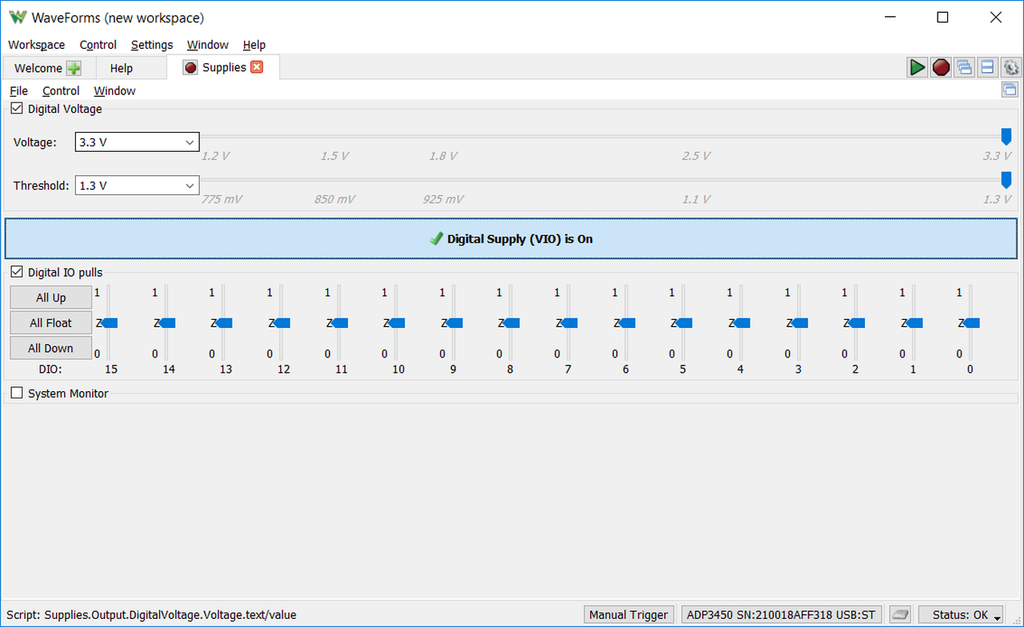

  • Digital Power Supply:
    • One Power supply with two access points
    • Voltage Range: 1.2 V to 3.3 V
    • Output Current: 300 mA

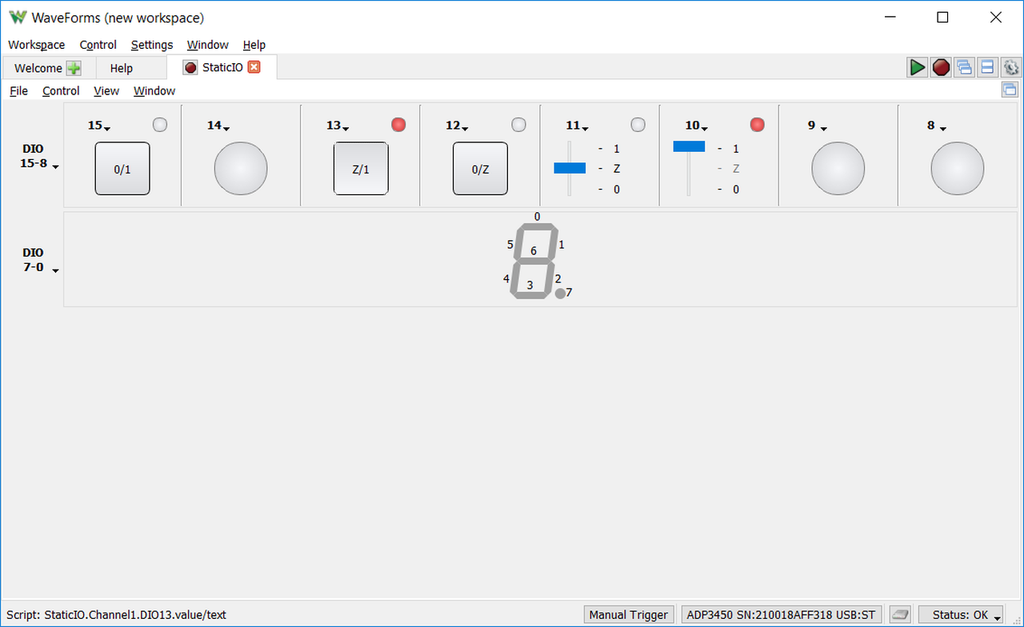

  • Digital Inputs and Outputs:

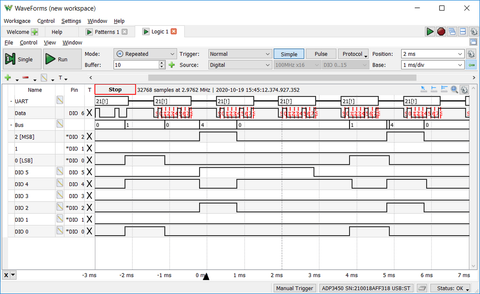

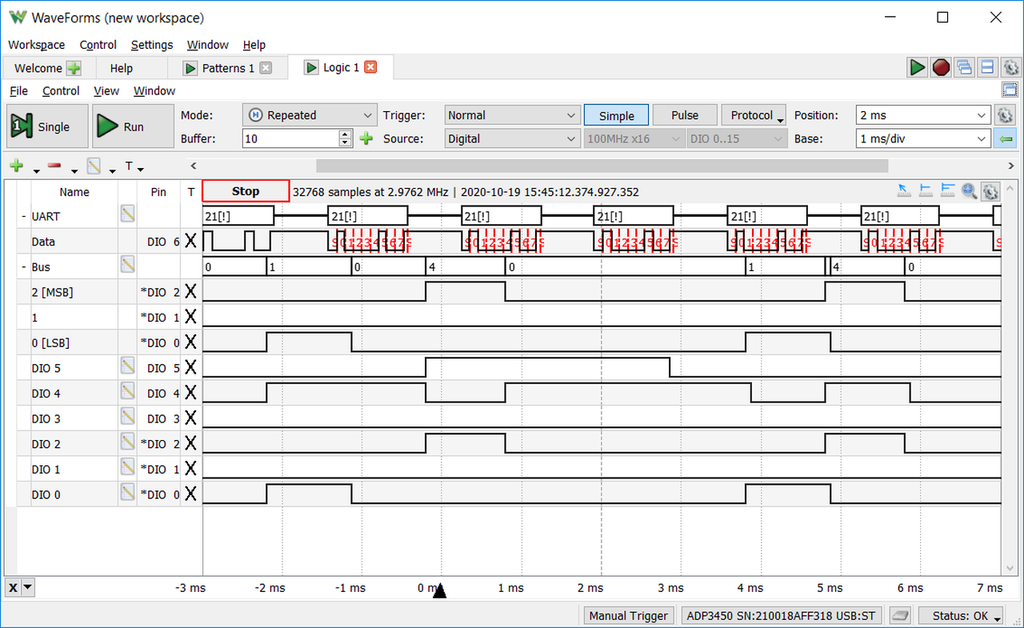

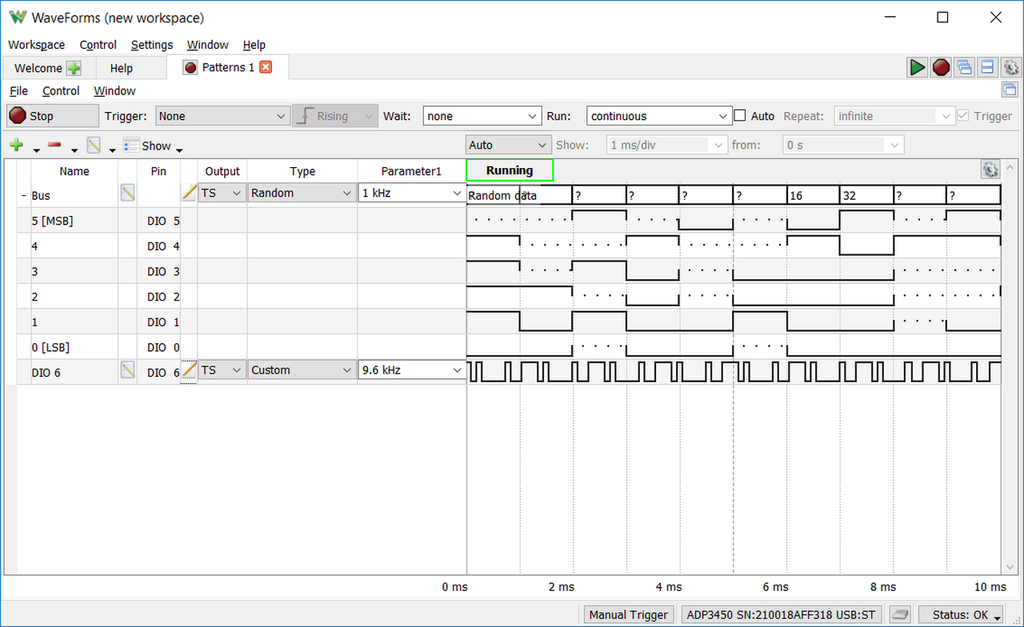

    • Used in the Logic Analyzer, Pattern Generator, Protocol Analyzer, and Digital I/O
    • Channels: 16
    • Input logic standard: LVCMOS (adjustable 1.2 V to 3.3 V, 5 V tolerant)
    • Output logic standard: LVCMOS (adjustable 1.2 V to 3.3 V, 8 mA)
    • Max sampling rate: 125 MS/s
    • Logic analyzer buffer memory:
      • 64 MS total in Record Mode
      • 32 k+ per channel in Repeated/Shift/Screen modes
  • Advanced Triggering:
    • Trigger sources: oscilloscope analog channels, function generator start, digital
    • I/O lines, external triggers, manual trigger button
    • Trigger Modes
      • None, auto, manual (forced trigger), single
    • Analog Trigger
      • Edge, pulse, transition, condition, level, hysteresis, hold-off
    • Digital Trigger
      • Edge, level, pattern, glitch, protocol

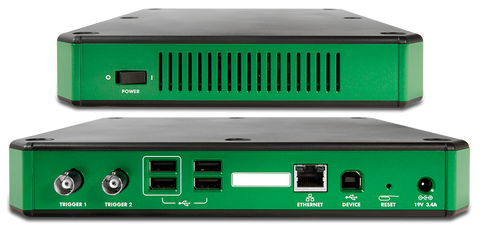

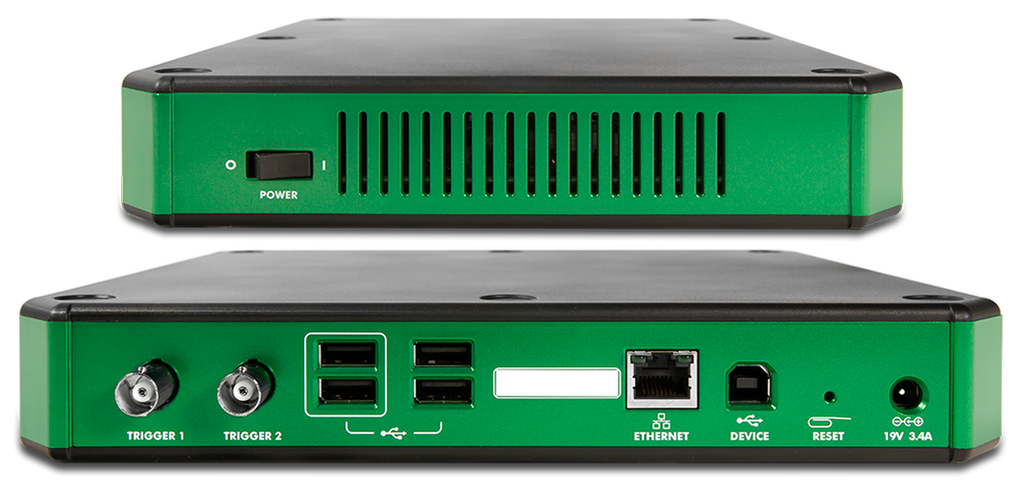

  • Connectivity:
    • Device to computer: USB or Ethernet connection (in Linux or Standard Modes)
    • 4 High-speed USB 2.0 ports for peripheral connection (enabled in Linux mode)
      • Enabled for set and tested WiFi dongles (in Linux Mode)
