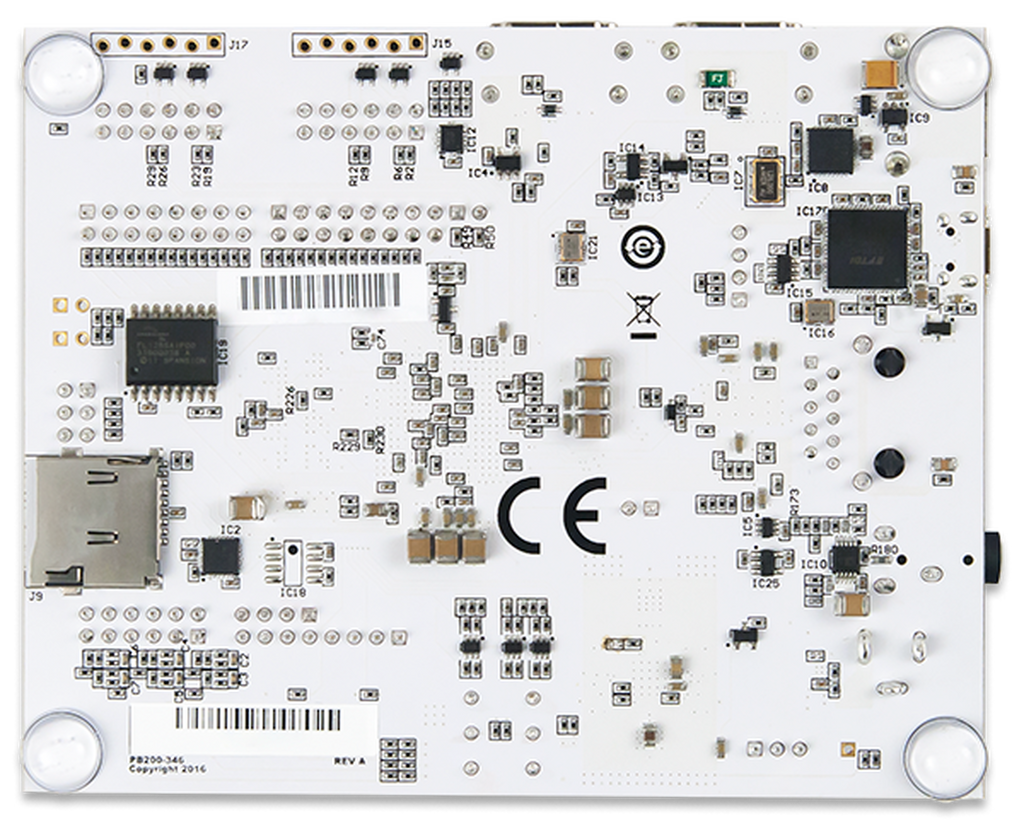

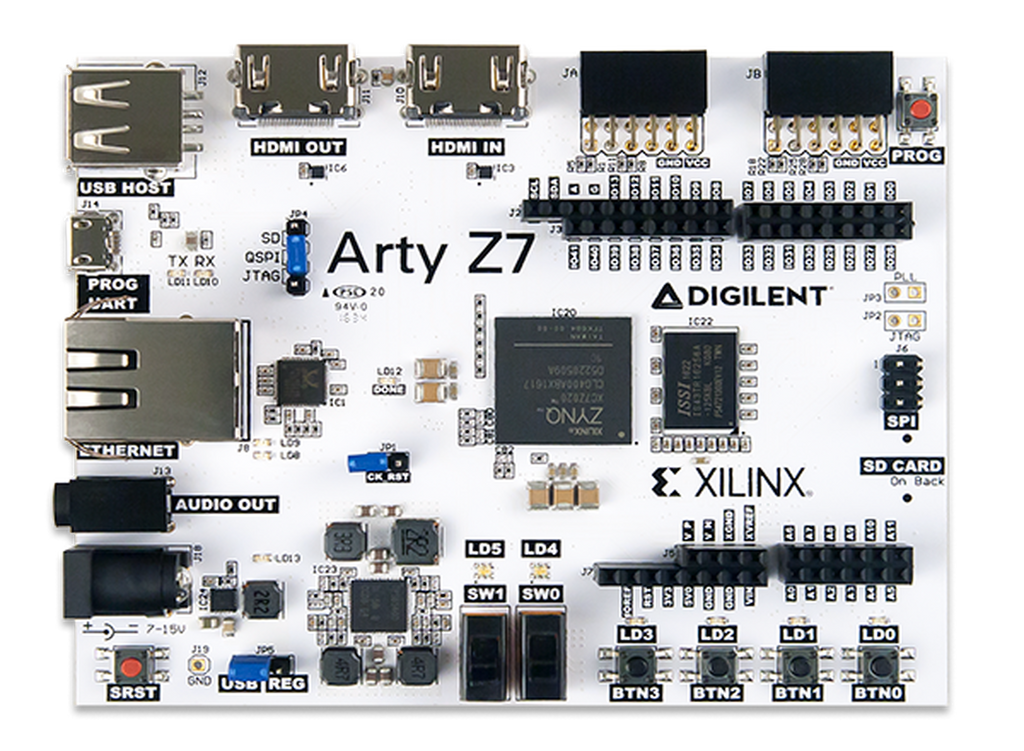

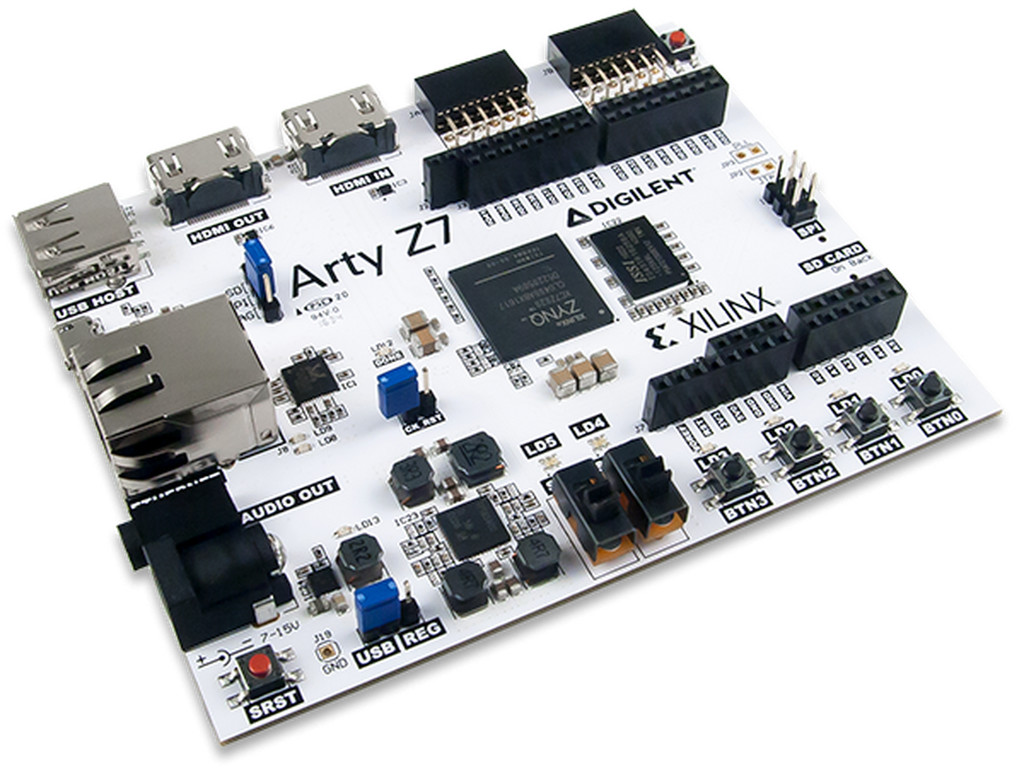

Digilent Arty Z7: Zynq-7000 SoC Development Board

SKU: 01DIG41034620

  • Sale
  • Regular price $299.00

The Arty family of Digilent FPGA/SoC boards was designed with versatility and flexibility in mind. With universally popular Arduino™ headers and multiple Pmod™ ports, an Arty will be the most adaptable FPGA/SoC board in your toolbox.

The Arty Z7 is a ready-to-use development platform designed around the Xilinx Zynq®-7000 System-on-a-chip (SoC) family. The Zynq®-7000 SoC family integrates the software programmability of an ARM®-based processor with the hardware programmability of an FPGA, enabling key analytics and hardware acceleration while integrating CPU, DSP, ASSP, and mixed signal functionality on a single device.

The Arty Z7 is supported by Xilinx's Vivado Design Suite, including the free WebPACK version. The SDSoC™ Development Environment provides a familiar embedded C/C++/OpenCL application development experience for heterogeneous Zynq® SoC deployment.

There are two variants of the Arty Z7: The Arty Z7-10 features the XC7Z010-1CLG400C, and the Arty Z7-20 features the larger XC7Z020-1CLG400C. There is a third option available, the Arty-Z7-20 with a Xilinx SDSoC voucher, which is recommended for those interested in video processing applications.

  Arty Z7-10 Arty Z7-20
FPGA part XC7Z010-1CLG400C XC7Z020-1CLG400C
Logic Cells 28,000 85,000
DSP Slices 80 220
Block RAM (Mbits) 2.1 4.9



  • ZYNQ Processor
    • 650MHz dual-core Cortex-A9 processor
    • DDR3 memory controller with 8 DMA channels and 4 High Performance AXI3 Slave ports
    • High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
    • Low-bandwidth peripheral controller: SPI, UART, CAN, I2C
    • Programmable from JTAG, Quad-SPI flash, and microSD card (Micro B USB cable NOT included).
    • Programmable logic equivalent to Artix-7 FPGA
  • Memory
    • 512MB DDR3 with 16-bit bus @ 1050Mbps
    • 16MB Quad-SPI Flash with factory programmed 48-bit globally unique EUI-48/64™ compatible identifier
    • microSD slot
  • Power
    • Powered from USB or any 7V-15V external power source
  • USB and Ethernet
    • Gigabit Ethernet PHY
    • USB-JTAG Programming circuitry
    • USB-UART bridge
    • USB OTG PHY (supports host only)
  • Audio and Video
    • HDMI sink port (input)
    • HDMI source port (output)
    • PWM driven mono audio output with 3.5mm jack
  • Switches, Push-buttons, and LEDs
    • 4 push-buttons
    • 2 slide switches
    • 4 LEDs
    • 2 RGB LEDs
  • Expansion Connectors
    • Two standard Pmod ports
      • 16 Total FPGA I/O
  • Arduino/chipKIT Shield connector
    • Up to 49 FPGA Digital I/O for the Z7-20 and 26 FPGA Digital I/O for the Z7-10
    • 6 Single-ended 0-3.3V Analog inputs to XADC
    • 4 Differential 0-1.0V Analog inputs to XADC


  • Arty Z7: SoC Development Board (Micro B USB cable NOT included)
  • Digilent cardboard packaging with protective foam
