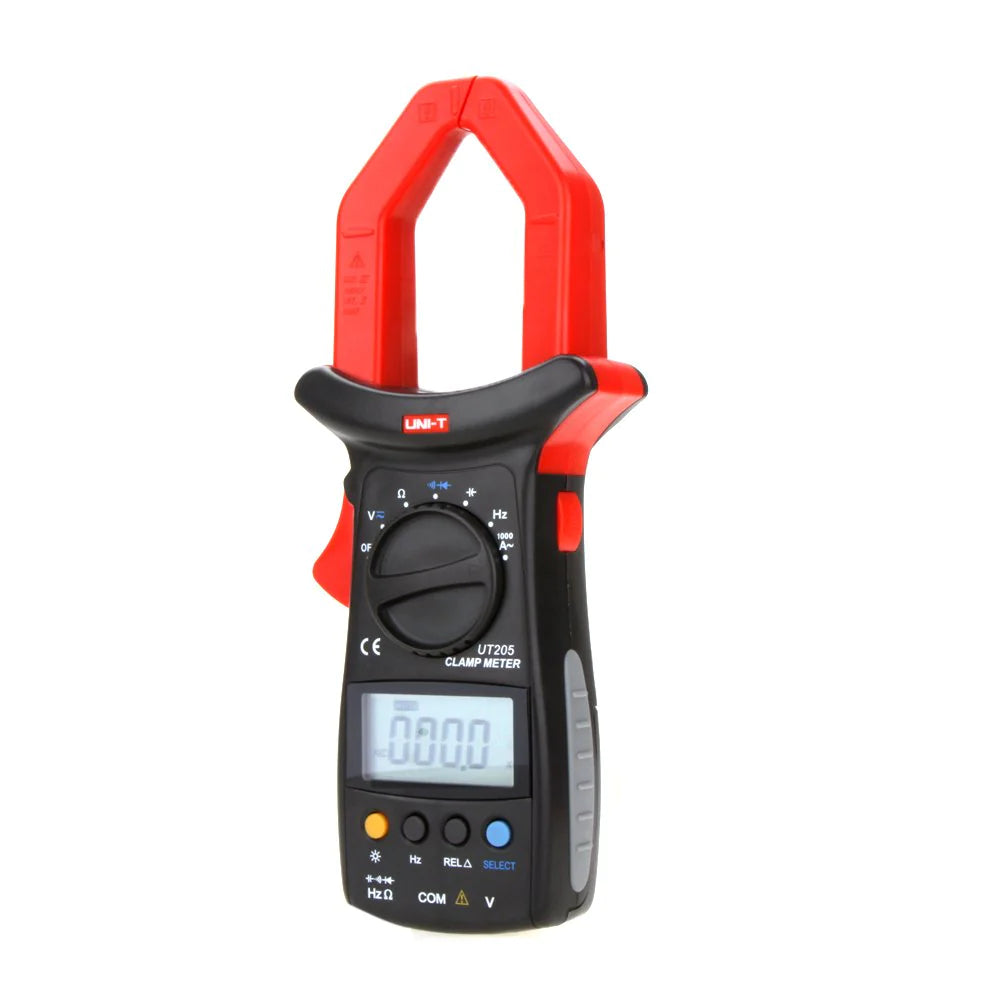

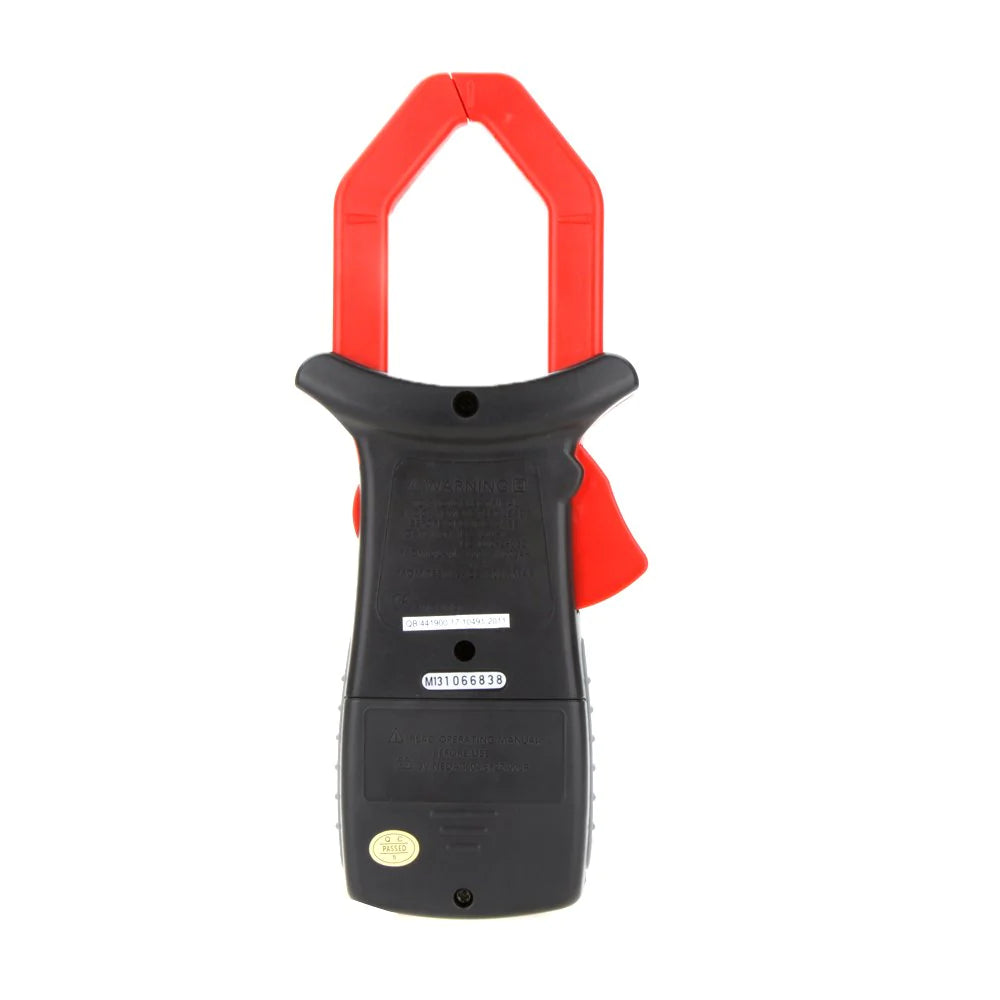

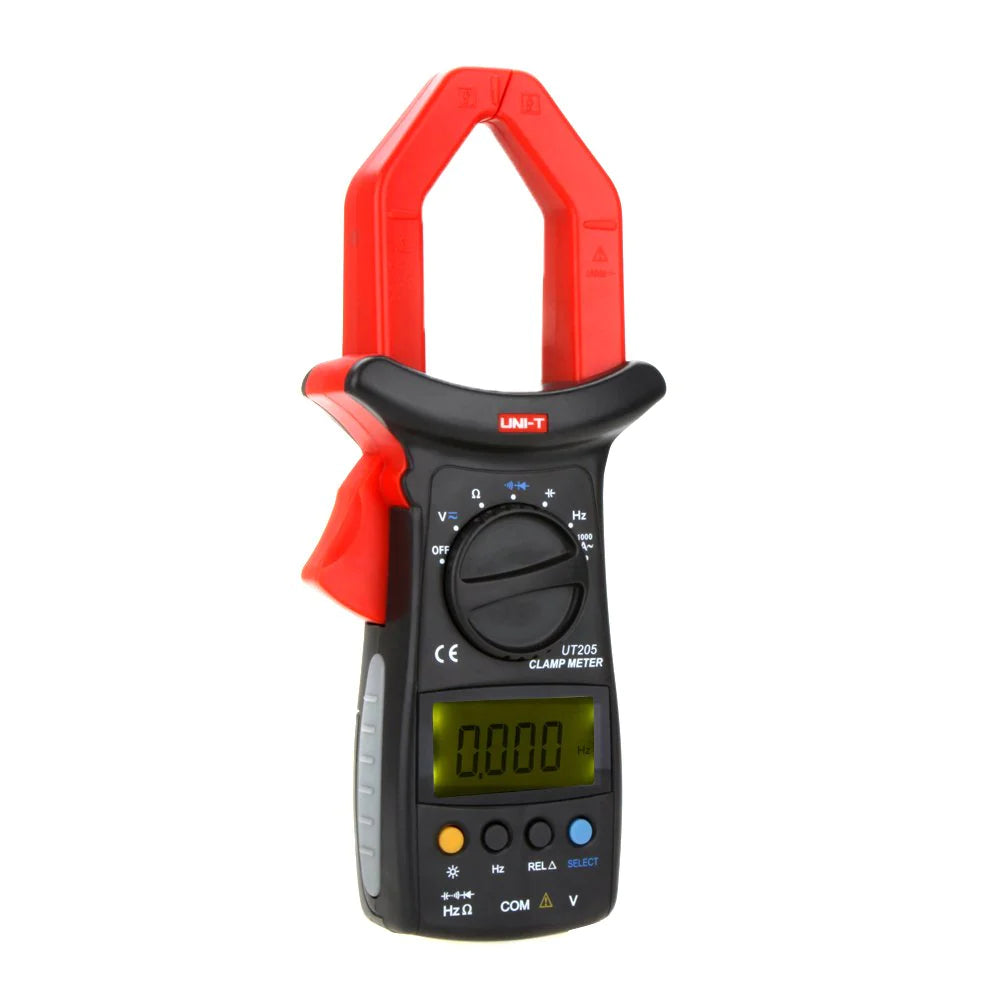

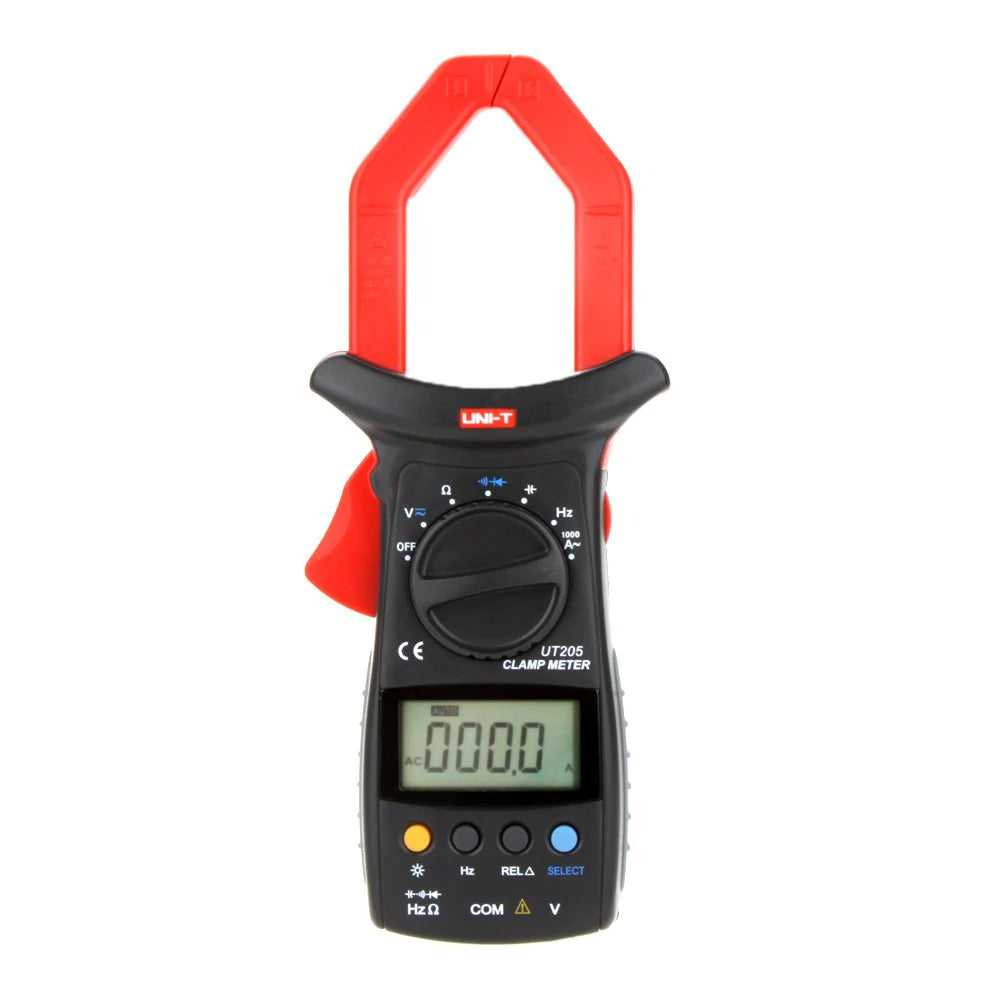

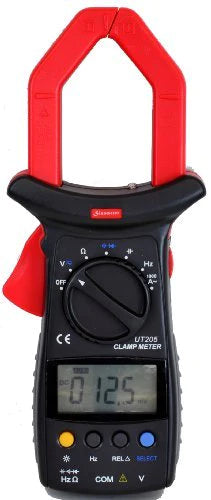

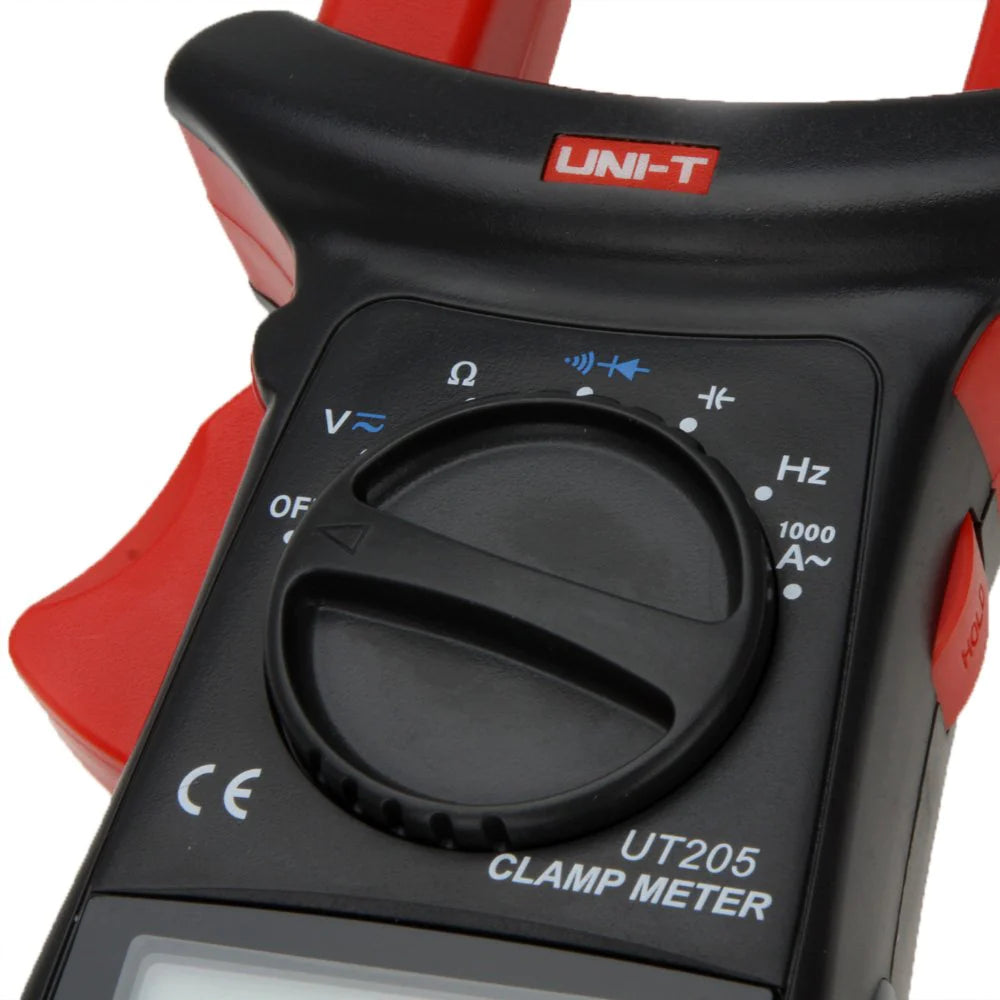

Uni-Trend UT205 Auto Ranging AC 1,000 Amp Clamp Meter, Back Light,Freq. Capacitance and Relative Measurement,Sinometer

Features:

• Built-in flashlight for AC current measurement
• Data hold
• Back-lit LCD screen
• Relative measurement
• Sleep timer (can be disabled)
• Display count: 4000
• Auto range
• Jaw opening: 40mm
• CAT II 600V/CAT III 300V
• Measures AC current up to 1,000 amps
• AC/DC voltage, AC current, resistance, frequency, capacitance, continuity, duty cycle & diode check

Specifications:

• Max. LCD display: 3999
• Range selection: auto
• DC voltage: 0.4/4/40/400 V ± 0.8%, 600 V ± 1.0%
• AC voltage: 4/40/400 V ± 1.2%, 600 V ± 1.5%
• AC current: 400A ± 1.5% / 1000 A ± 3.0%
• Resistance: 400 ± 1.2%, 4k/40k/400k ± 1.0%, 4 Mohm ± 1.2%,40 Mohm ± 1.5%
• Capacitance: 4n ± 5.0%, 40n/400n/4u/40uF ± 3.0% 200uF ± 4.0%,
• Frequency range: 10 Hz -10 MHz ± 0.1%
• Duty cycle:0.1% -- 99.9%
• Diode test: yes
• Continuity test: yes
• Dimensions 11 x 4 x 2 ¼ inches

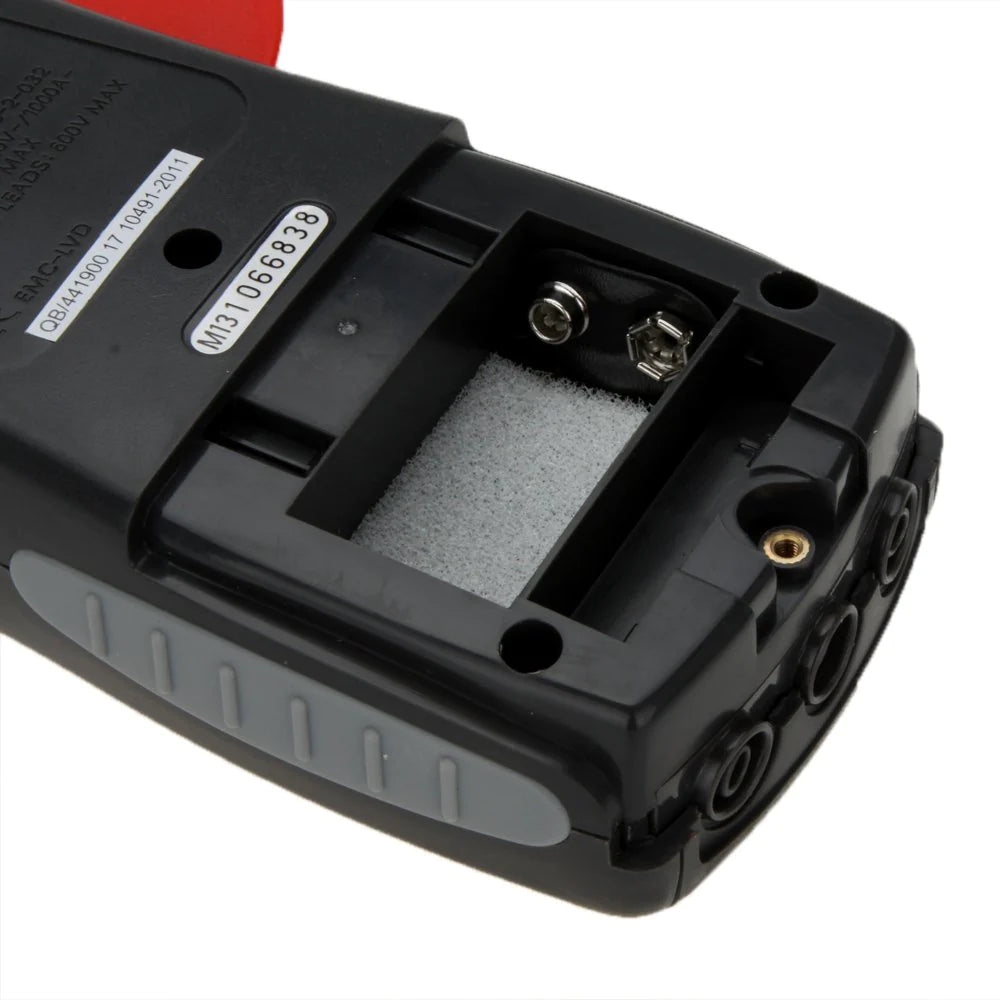

• Power: 9V 6F22 battery
• Weight: 530 grams

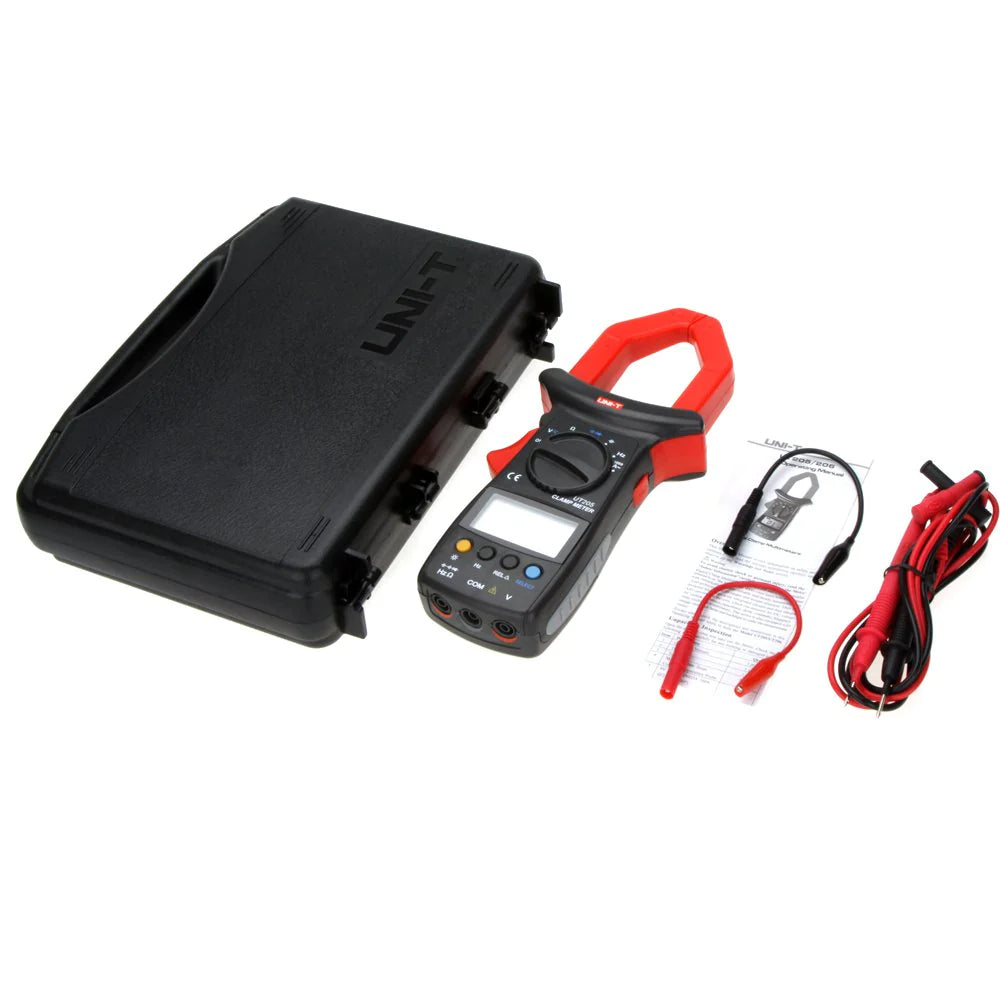

Includes:

• UT205 clamp meter

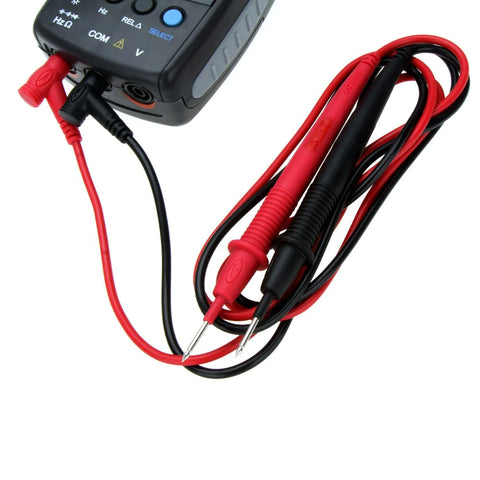

• Test leads with probes
• 9V battery: 1
• AAA battery: 1
• Test leads with alligator clips
• User manual
• ABS Carrying case
