Assembled Digital Clock with Circuit Diagram (HH : MM : SS Display)


  • Sale
  • Regular price $17.95

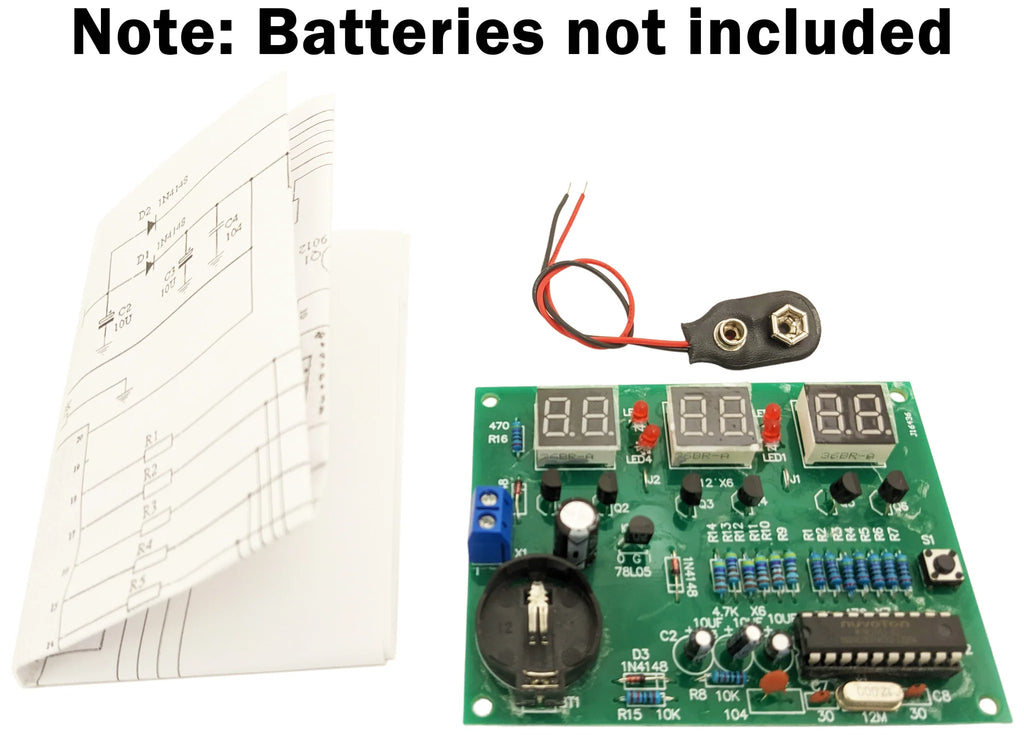

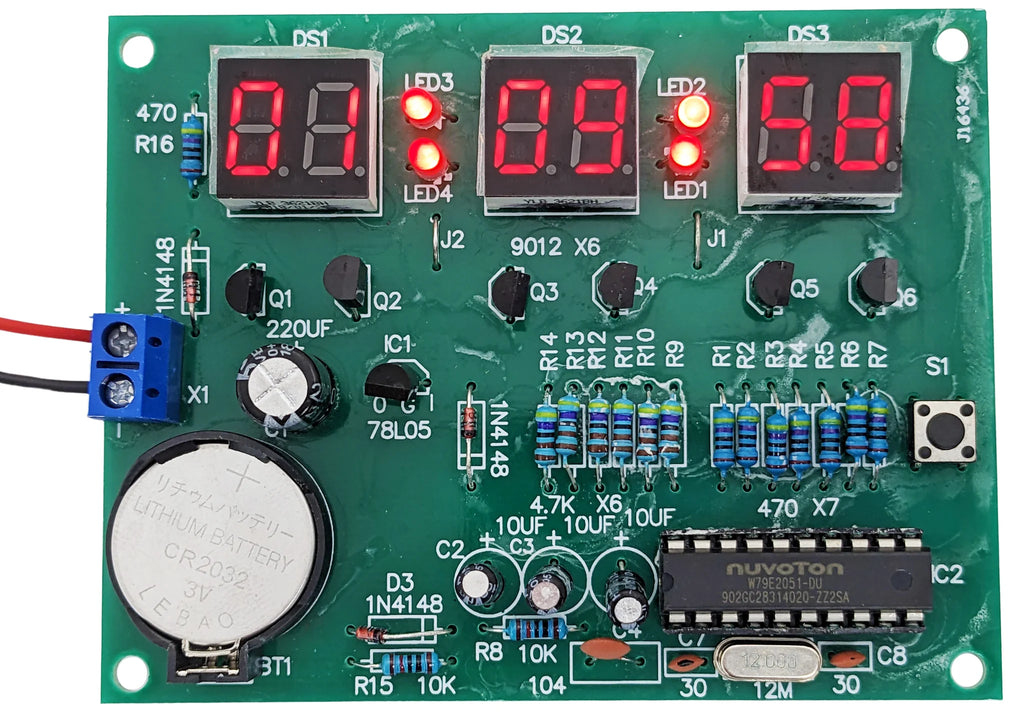

  • Assembled Digital Clock with HH : MM : SS Display
  • Includes a circuit diagram for understanding how the clock works
  • To set up the clock, use a small Phillips screwdriver to open the terminal block and insert the red wire to the "+" side and the black wire to the "–" side, then tighten the screws to secure the wires in place.

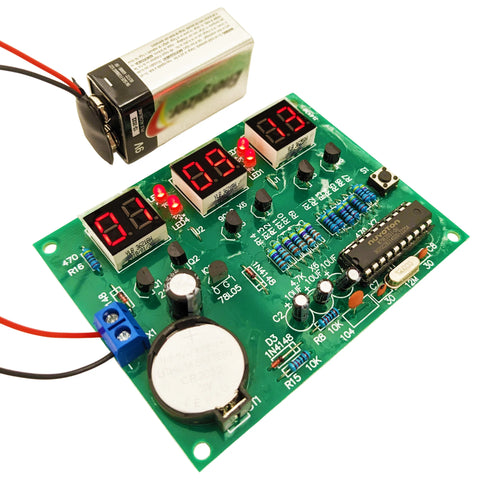

  • Requires one 9V battery for operation. One CR2032 button cell battery can also be used as a backup to save the time when replacing the main battery. Batteries not included.
