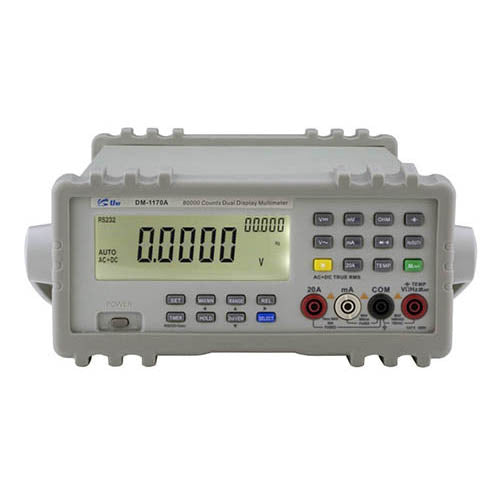

DM-1170A True-RMS Digital Multimeter, Dual Measurement, Dual Display

DM1170A True-RMS Digital Multimeter, Dual Measurement, Dual Display is an 80000 count True-RMS digital multimeter offering 50 measurement functions including DCV, ACV, DCA, ACA, Temp, Diode, and Continuity. AC measuring adopt accurate True-RMS measurement, with testing frequency bandwith.

• 80000-count Dual-display
• Analog bar 21 sets
• 1000VDC/750VAC, 20A
• 50 measuring functions, with basic DCV, ACV, DCA, ACA, CAP, Hz, TEMP, diode and Continuity measuring function
• 18 types of frequency, frequency up to 80MHz, 1800 waveform outputs, 0.1%~99% duty cycle
• Simultaneous measure (AC+DC), (AC+Hz), (DC+dBm), (dBm+Hz), (Hz+Duty), (degreesF+C)
• Auto data update and refresh, auto data hold, auto peak hold
• 36-hour dynamic record: MAG, MIN, AVG, MAX-MIN (REL), (REL%), setting upper and lower limit, timing measurement
• AC measuring adopts highly accurate true RMS measurement, with testing frequency bandwidth and AC+DC measuring, capable of accurate true RMS measuring of any waveforms in AC range
• Backlit LCD display
• RS-232 interface
• Includes RS-232 to USB cable

Datasheet
