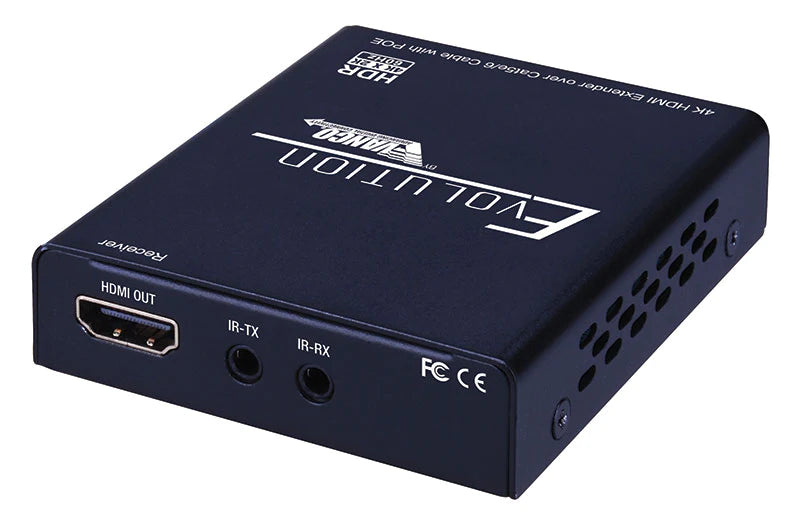

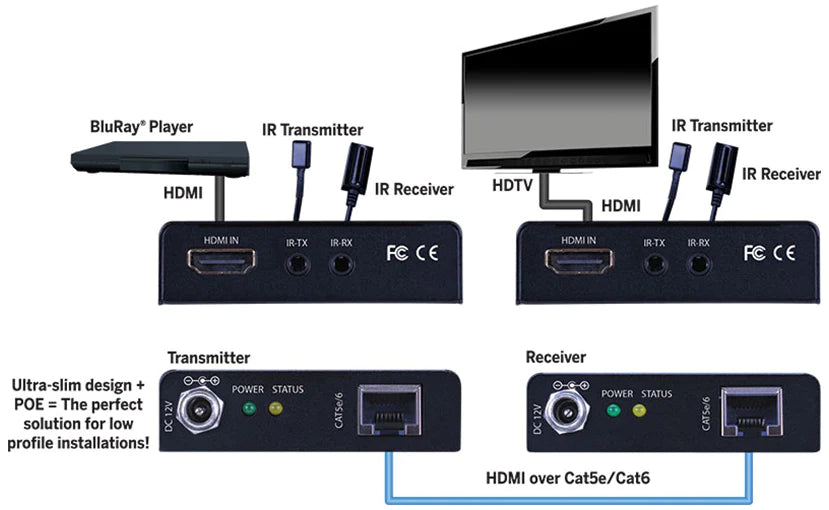

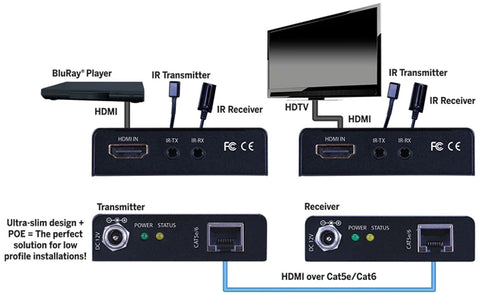

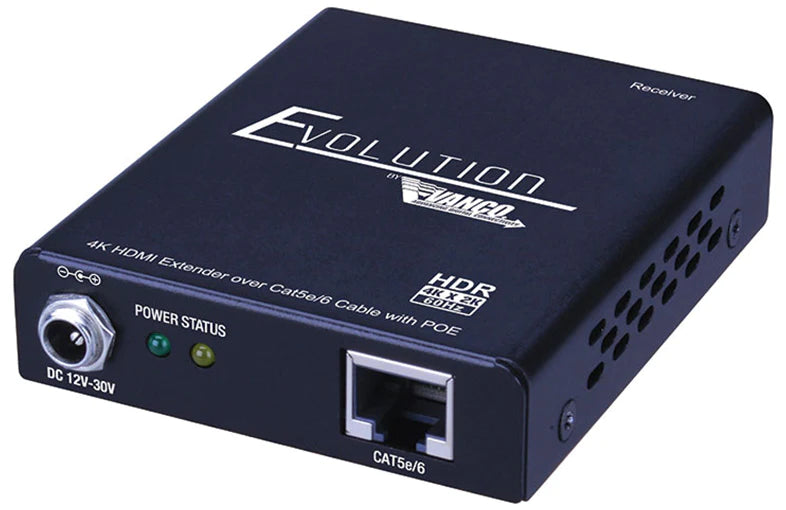

The Evolution by Vanco EV4K2006 HDMI Extender over Single Cat5e/ 6 with Bi-directional IR, auto EDID/ EQ, and Bi-directional PoE extends 4K ultra high definition video with HDR and audio signals, IR, and power. Extends 4K@60Hz, 4:4:4 Chroma Subsampling and HDR up to 164ft/ 50m, and 4K@30Hz, 4:4:4 Chroma Subsampling, and HDR up to 130ft/ 40m. Bidirectional Power over Ethernet (PoE) Technology transmits power over Cat5e/ 6, allowing either the Transmitter or Receiver to be powered without the use of a power supply. No EDID or EQ adjustments are necessary as the units automatically adjusts for compatibility and gain. This extender set also features a newly redesigned slim and compact chassis for easy and flexible installations. This product fully supports DTS-HD and Dolby TrueHD audio formats and is HDCP compliant. In addition, bi-directional IR pass-through allows for source or display control. For extending HDMI over a single Cat5e/ 6 with IR at a long distance, with Power over Ethernet, the EV4K2006 is a great plug and play solution! The EV4K2006 includes two units: transmitting unit (EV4K2006-TX) and receiving unit (EV4K2006-RX). The transmitting unit is used to capture the HDMI input with IR signals and carries the signals via one cost effective Cat5e/ 6 cable. The receiving unit is responsible for equalizing the transmitted HDMI signal and reconstructing IR signals. The EV4K2006 offers the most convenient solution for HDMI extension over a single Cat5e/ 6 with Power over Ethernet and is the perfect solution for any application.
Features:
Allows HDMI audio/video signals to be transmitted using a single Cat5e or Cat6 Cable
Transmission Range: Extends 4K@60Hz, 4:4:4 Chroma up to 164ft/50m and 4K@30Hz, 4:4:4 Chroma and HDR up to 130ft/40m over a single Cat5e/6 cable
Features Power over Ethernet (PoE) Technology which transmits power over Cat5e/Cat6, allowing the transmitter and receiver to be powered off of a single power supply
Wideband Bi-directional IR system allowing for control of source or display (IR accessories included)
Wideband IR signal from 20KHz to 60KHz
Features Auto EDID and EQ Management for plug and play installation
HDR10 Compatible
Works with HDMI and HDCP compliant devices
HDCP 2.2 compliant
Slim and compact design
Pure uncompressed 7.1ch digital audio
Supports DTS-HD and Dolby TrueHD high bit rate audio
Dimensions: 2.7” (68.58mm) W x .7” (17.78mm) H x 3.25” (82.55mm)
Tech Support Tips:
Not recommended to be used with other HDMI distribution products such as splitters and matrix units. Evolution HDBaseT extenders are recommended for combining with HDMI distribution products
Recommended to be used with a permanent source, or non-rotating source. For any rotating source such as a conference room type setup, it is recommended to use an HDBaseT extender
HDMI UHD Deep Color mode on some LG displays may need to be deactivated to avoid video signal issues
Input Signal Plus on some Samsung displays may need to be deactivated to avoid video signal issues
Package Contents:
EV4K2006 (TX & RX)

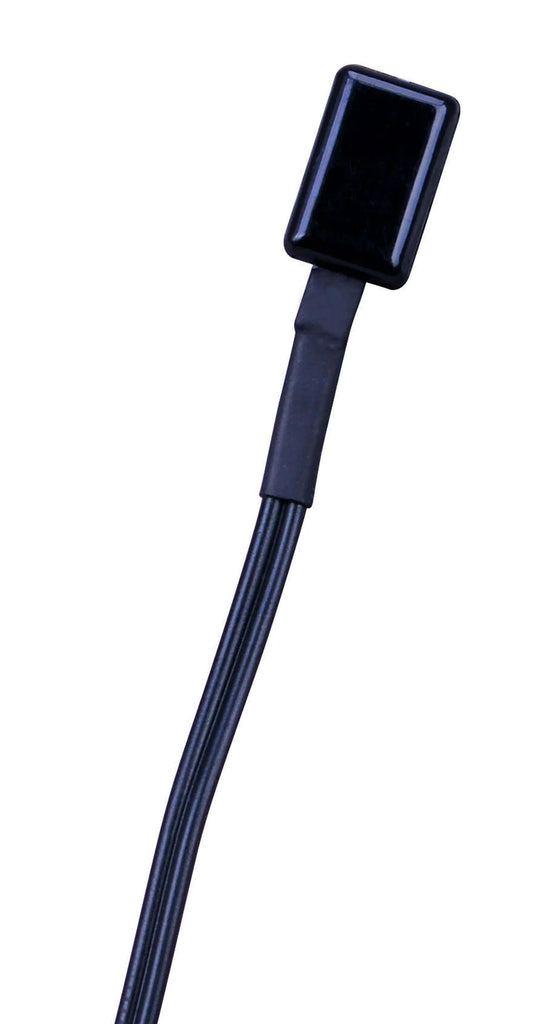

(2) IR Blasters (TX)

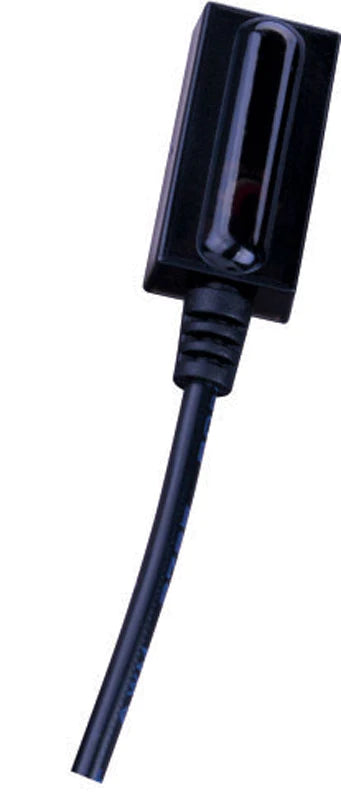

(2) IR Receivers (RX)
(1) DC 12V in line power supply
Product Manual
