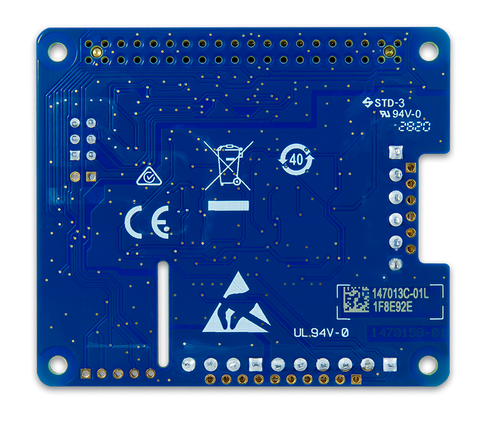

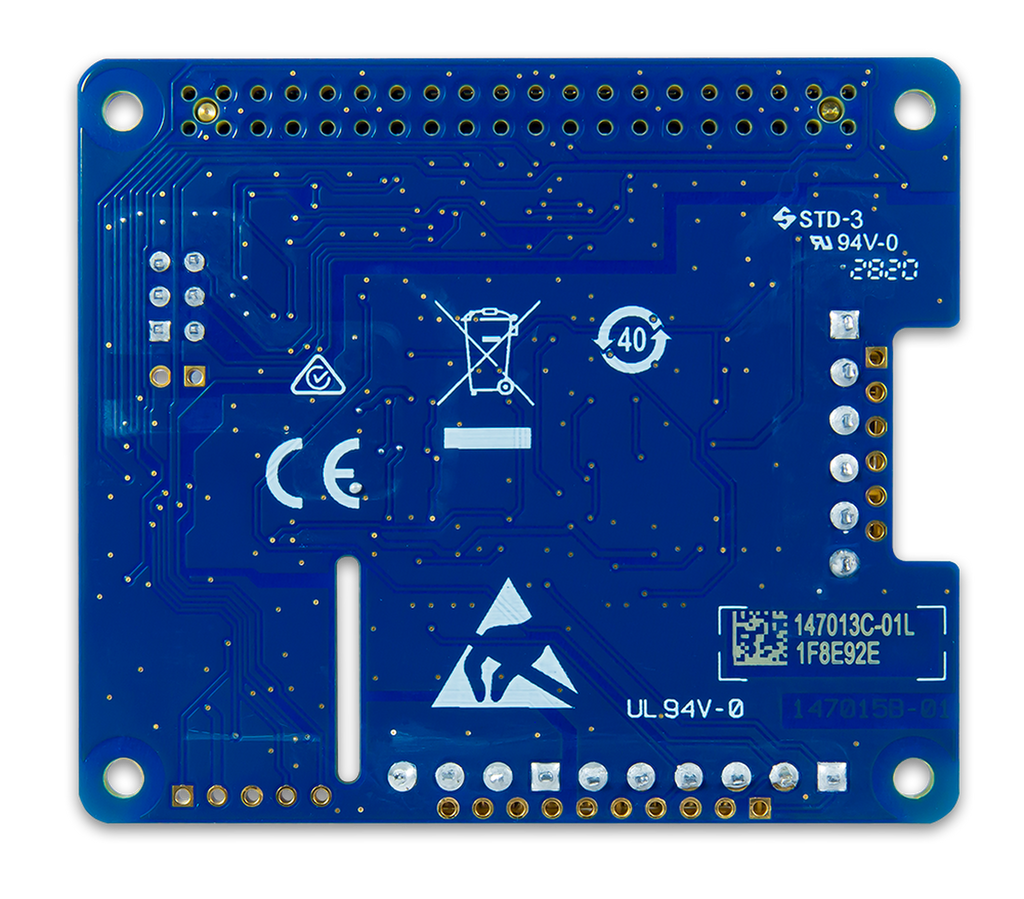

MCC 118: Voltage Measurement DAQ HAT for Raspberry Pi

SKU: 01DIG6069410000

  • Sale
  • Regular price $97.00


Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

The MCC 118 and MCC 128 DAQ HATs feature eight channels of analog voltage measurement for Raspberry Pi-based data acquisition systems. Each device has a maximum sample rate of 100 kS/s for taking single point or waveform voltage measurements. Up to eight MCC HATs can be stacked onto one Raspberry Pi - providing up to 64 channels of data and a maximum throughput of 320 kS/s.

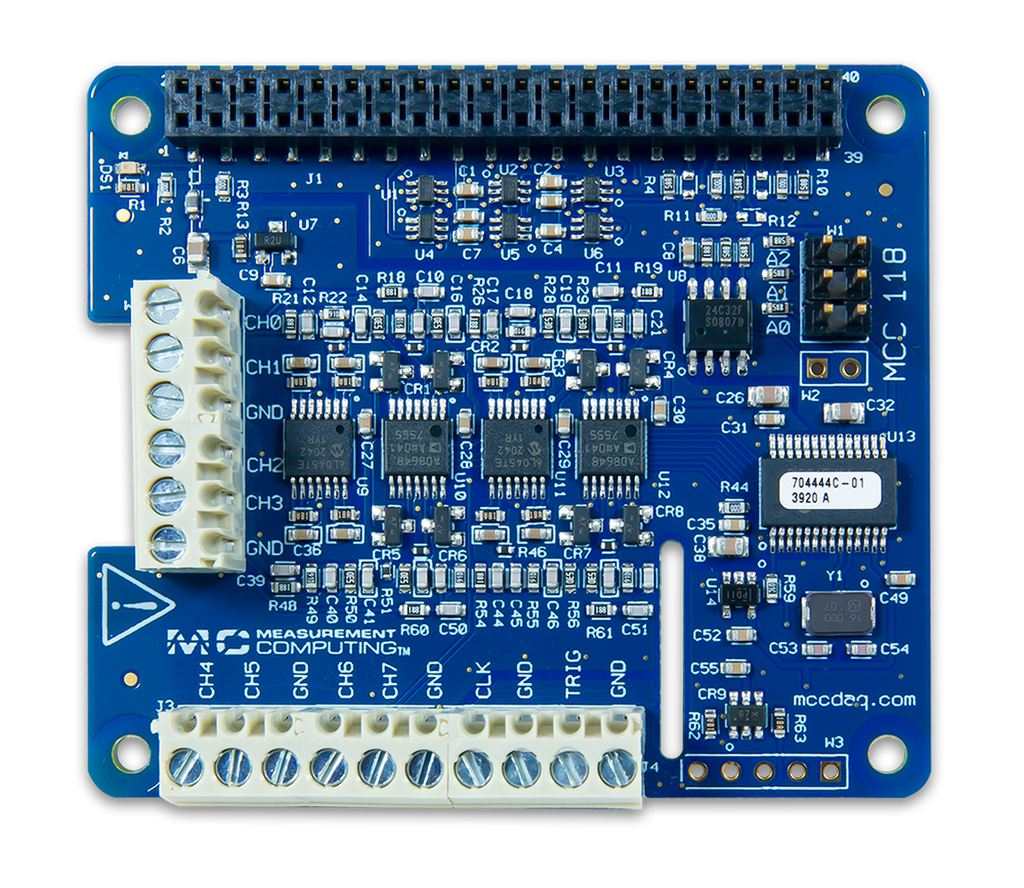

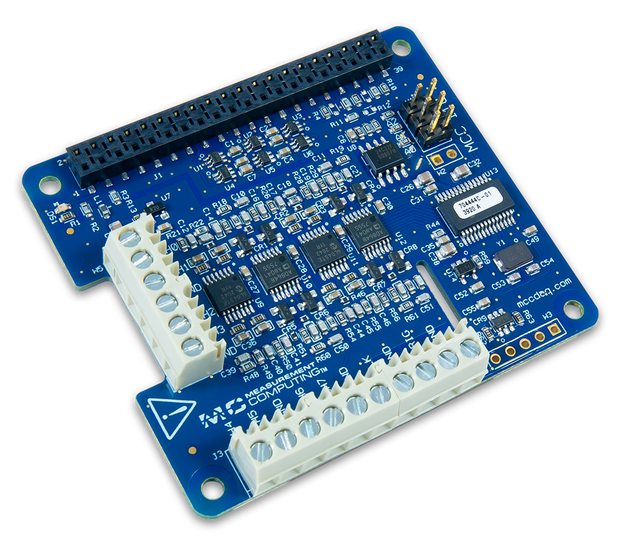

MCC 118 features 12-bit resolution and 8 SE analog inputs with a +/-10V input range.

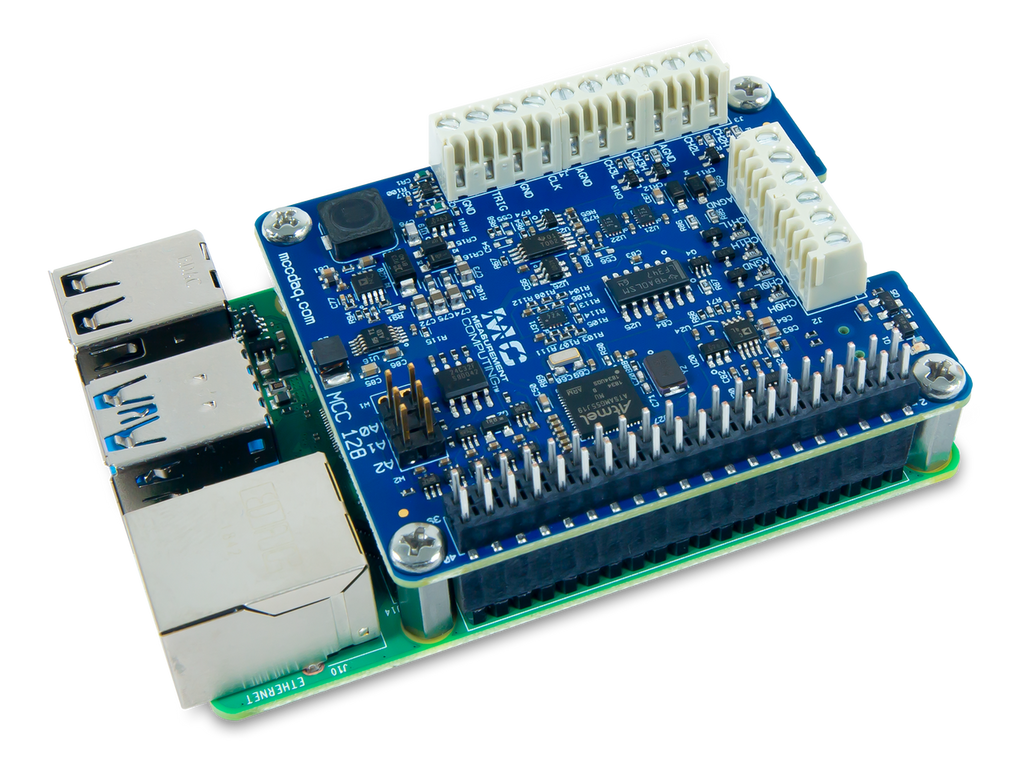

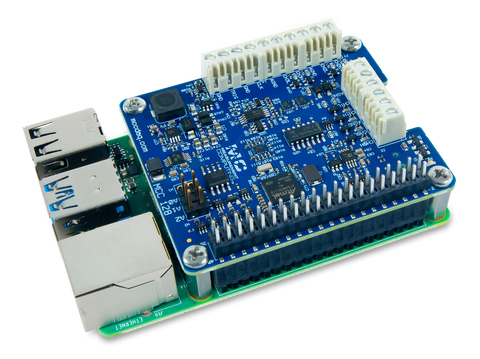

MCC 128 features 16-bit resolution and 8 SE/ 4 DIFF analog inputs with the following input ranges (+/-10 V, +/-5 V, +/-2 V, +/-1 V).

All DAQ HATs include C/C++® and Python™ examples and an open-source library. Comprehensive API and hardware documentation are also provided.

There are five devices in the MCC DAQ HAT Series. Models are available with voltage inputs, thermocouple inputs, IEPE-based sensor inputs, analog outputs, and digital I/O allowing users to configure multifunction, Raspberry Pi-based data logger solutions.


Raspberry Pi is not included with the MCC 118/MCC 128.


  • 8 SE 12-bit voltage inputs
  • 100 kS/s max sample rate (320 kS/s aggregate for stacked boards)
  • +/-10 V input range
  • Onboard sample buffers allow high-speed acquisition
  • External scan clock I/O
  • External digital trigger input
  • Screw terminal connections
  • Product Compliance:
    • HTC: 8471809000
    • ECCN: EAR99



  • One MCC DAQ HAT (choose between MCC 118 and MCC 128)
  • 2x20 Header connector (plugs into the 40 pin GPIO connector on the Pi board)
  • Jumpers (3)
  • Standoffs (4)
  • Screws (4)
  • Nuts (4)
  • Printed insert: Getting Started with MCC DAQ HATs
  • MCC packaging assembly/foam, etc.
