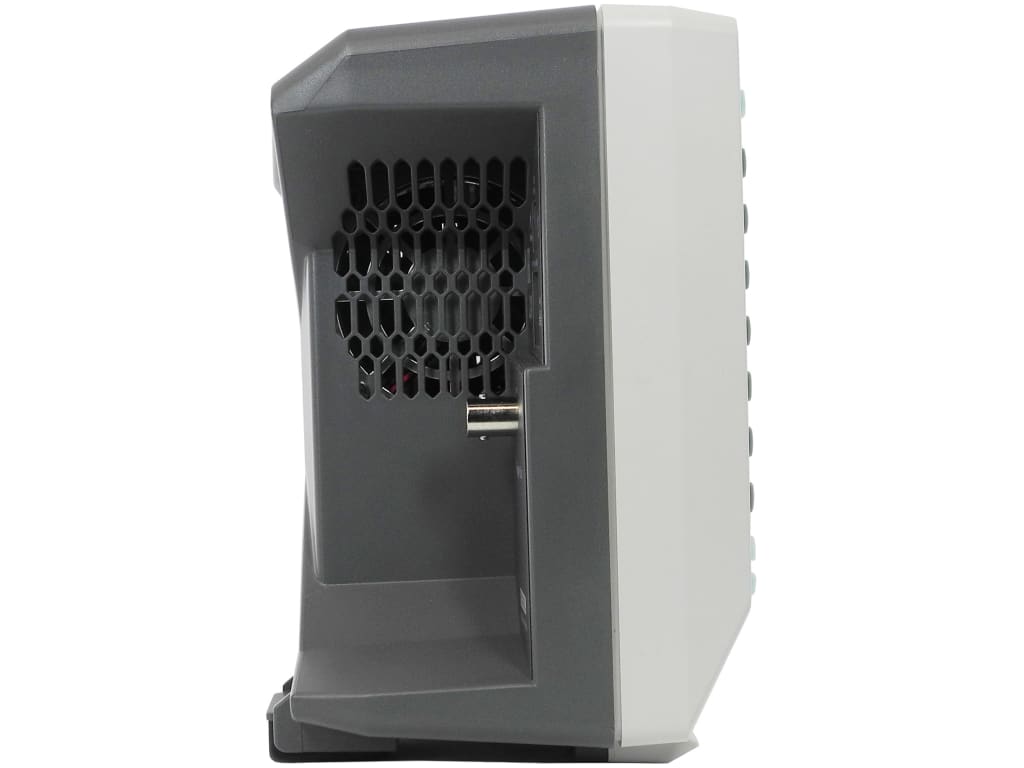

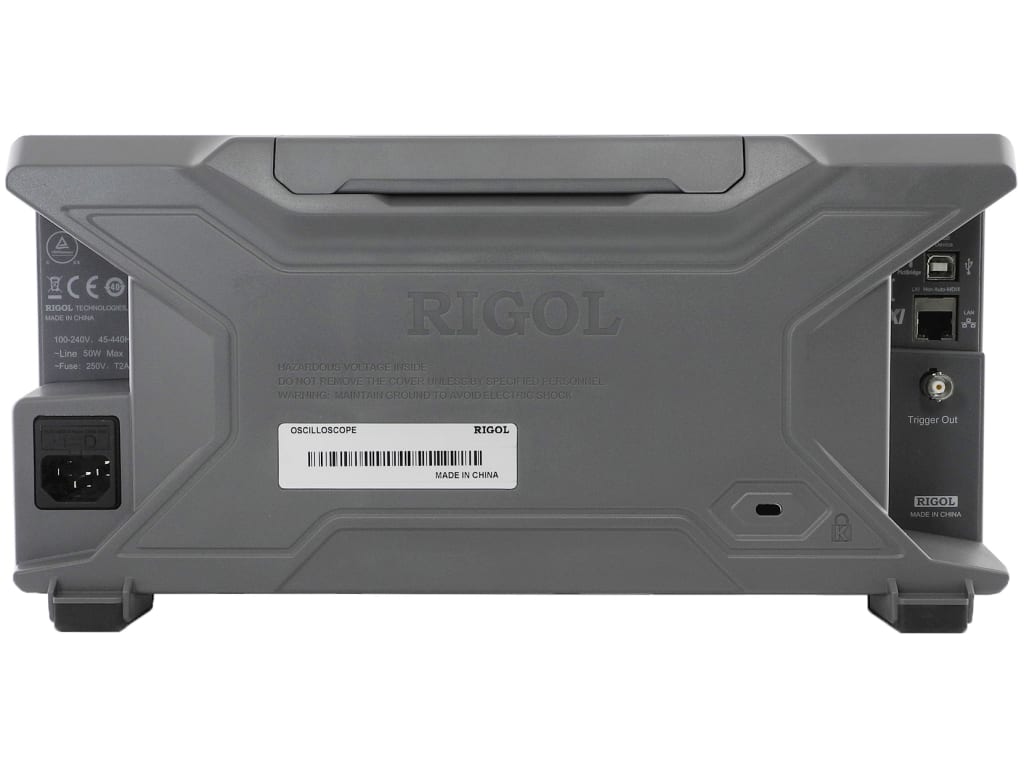

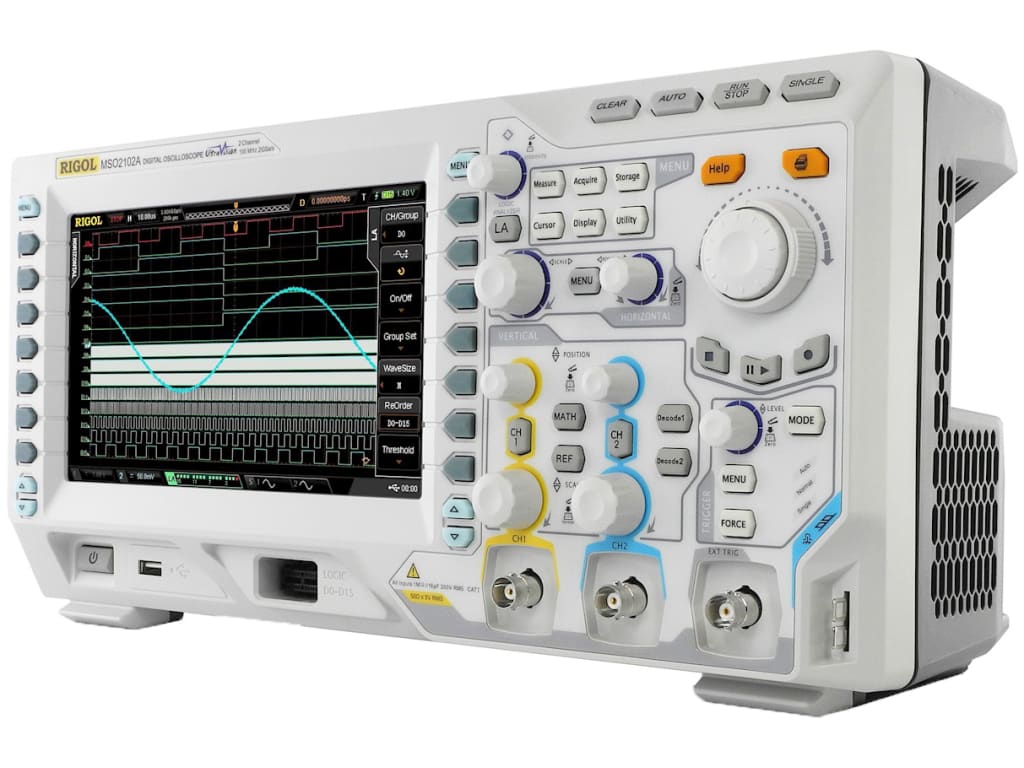

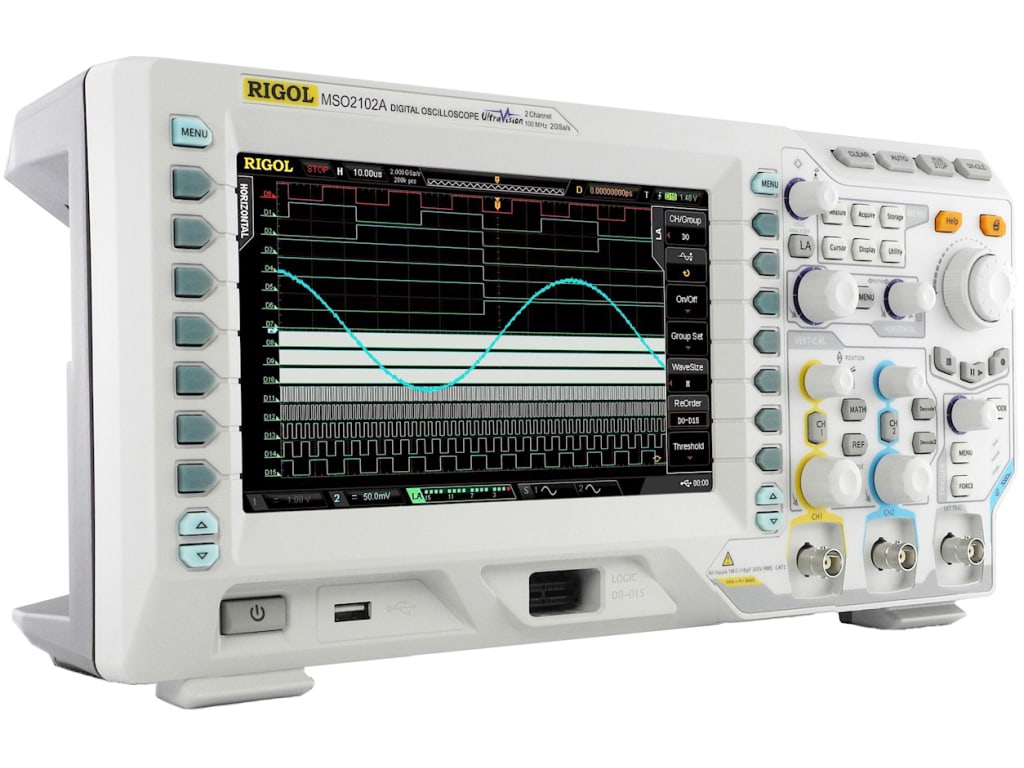

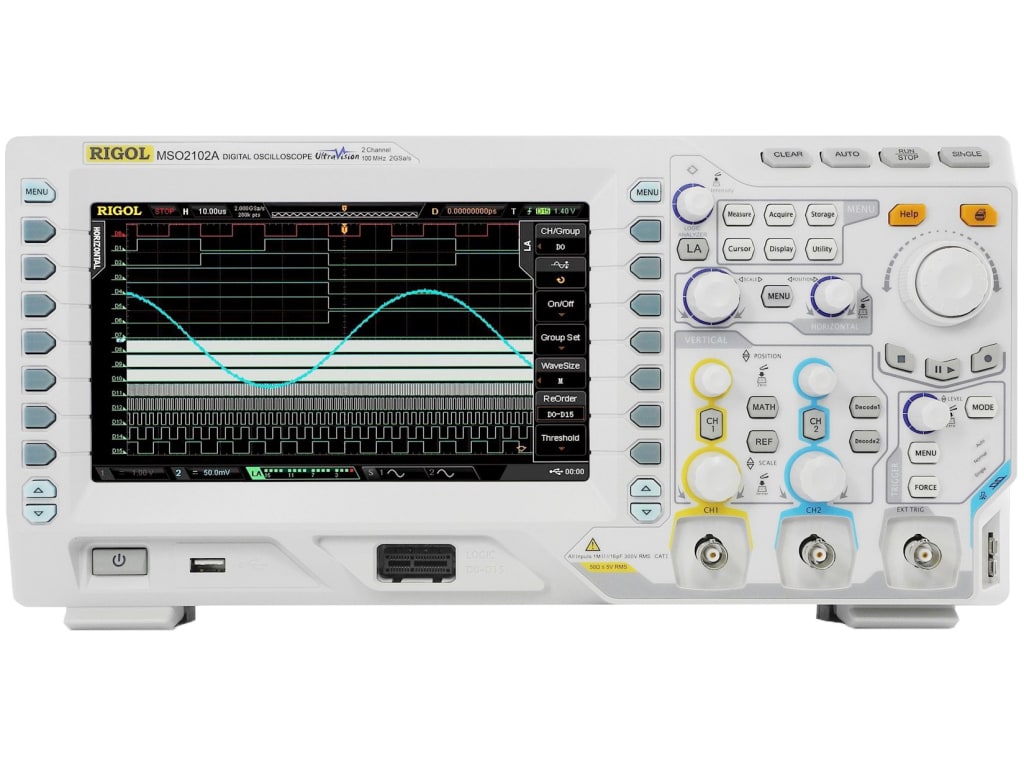

Rigol MSO2102A-S 100MHz Mixed Signal Oscilloscope with 2 Channel, 25 MHz Waveform Generator

SKU: 01MSO2102A-S

  • Sale
  • Regular price $1,259.00

MSO/DS2000A Series is the new mainstream digital scope to meet the customer's applications with its innovative technology. MSO2000A Series has 2+16 channels, target for the embedded design and test market with its industry leading specifications, powerful trigger functions and broad analysis capabilities.

  • 100MHz Bandwidth, 16 Digital Channel MSO with sources
  • 2 Analog Channels
  • Calculated Rise Time: 3.5ns
  • Lower noise floor, Wider vertical range: 500uV/div
  • 10V/div
  • Max. Sample Rate: Analog channel up to 2G Sa/s, Digital channel up to 1G Sa/s(MSO)
  • Memory Depth: Analog channel up to14Mpts /56Mpts(Opt.), Digital channel up to 14Mpts/28Mpts(Opt.)
  • Innovative "UltraVision" technology
  • Waveform capture rate up to 50,000 wfs/s
  • Up to 256 Levels intensity grading waveform display
  • Up to 65,000 frames Hardware based Real Time waveform, Record, Replay & Analysis functions(Std.)
  • A variety of trigger and serial bus decoding functions (RS232,I2C,SPI,CAN) - May require upgrade. See Data Sheet under Documents tab for details.
