Parallax P2 Edge Mini Breakout Board

SKU: 32PX64019

  • Sale
  • Regular price $29.95

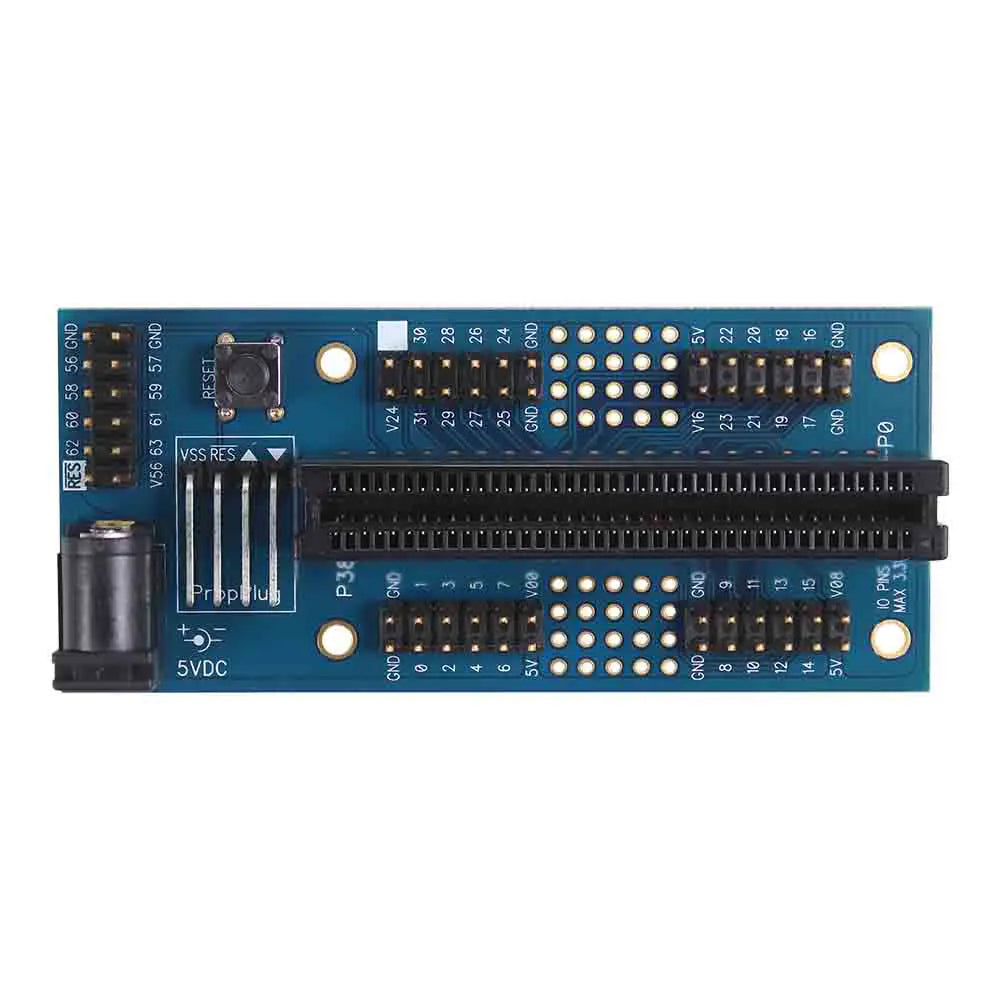

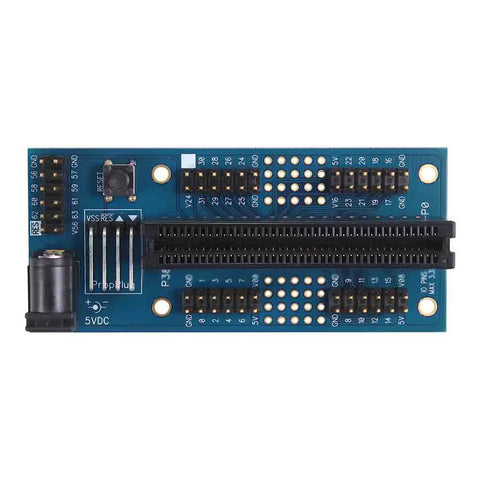

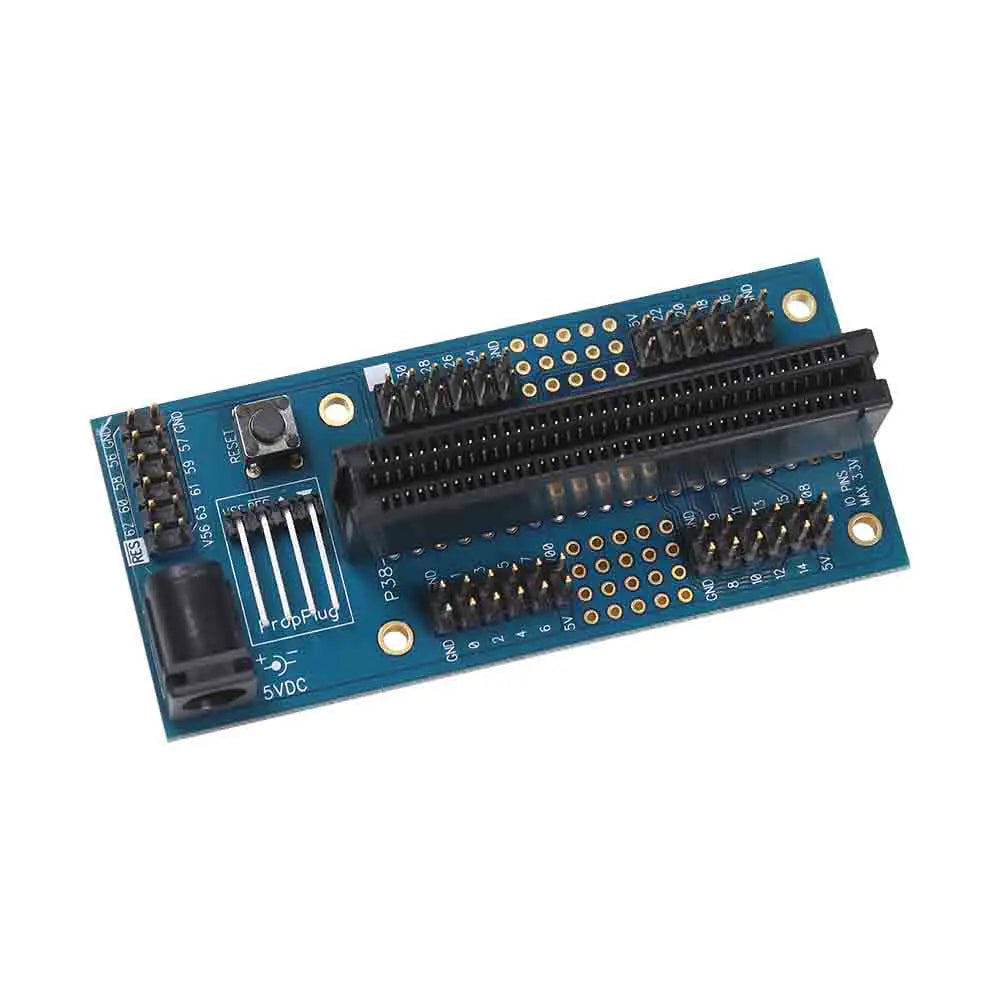

The P2 Edge Mini Breakout Board is a minimalist but fully functional programming system for the P2 Edge Module (#P2-EC) and P2 Edge Module with 32MB RAM (#P2-EC32MB). It features an 80-pin socket for the P2 Edge, a 2.1mm power jack, a Prop Plug programming port, reset button and four 2×6 headers for use with the Propeller 2 Accessory Set, P2 to Mickro BUS Click Adapter, or WX Adapter. This product ships fully assembled by Parallax.

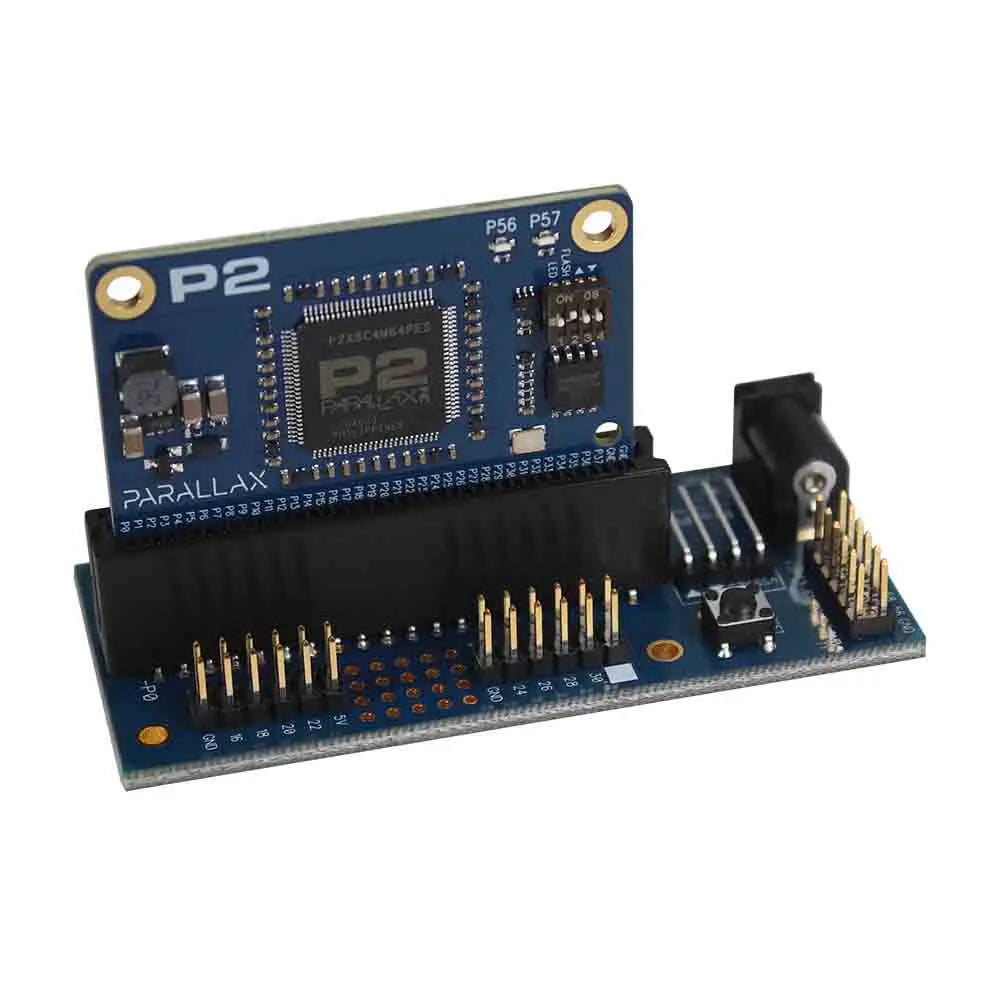

This product, paired with a P2 Edge Module, provides the best value for a compact Propeller 2 multicore microcontroller programming system.

  • 2.1 mm power jack compatible with USB A to DC 2.1mm Jack Cable and USB Mains Adapter for convenient power
  • 4-pin Prop Plug header eliminates in-system USB circuitry, minimizing project costs
  • Four 2×6 sockets for up to four P2 Accessory Set devices or two Click Adapters
  • Accepts P2 WX Adapter Add-on Board for wireless P2 programming
  • Convenient reset button and mounting holes
  • Portable Propeller 2 multicore microcontroller development system
  • Compact breadboard interface via jumper wires
  • Ready-made interface for custom embedded system integration

Note: the P2 Edge Module (#P2-EC) and P2 Edge Module with 32MB RAM (#P2-EC32MB), Prop Plug programming tool, power supply and accessory adapters not included, sold separately.

P2 Edge Mini Breakout Board Specifications:

  • Voltage input requirements: 5 VDC, absolute maximum 5.5 VDC
  • Input Current requirements: 100 mA minimum
  • VIO Power Supplies: 3.3 V up to 300 mA per 8 I/O pins; requires P2-EC Edge Module
  • USB programming: Serial up to 2 MBaud; requires Prop Plug and cable
  • Wireless programming: requires P2 WX Adapter Add-on and Parallax WX ESP8266 WiFi Module – SIP
  • Operating temperature: -40 to +185 °F (-40 to +85 °C)

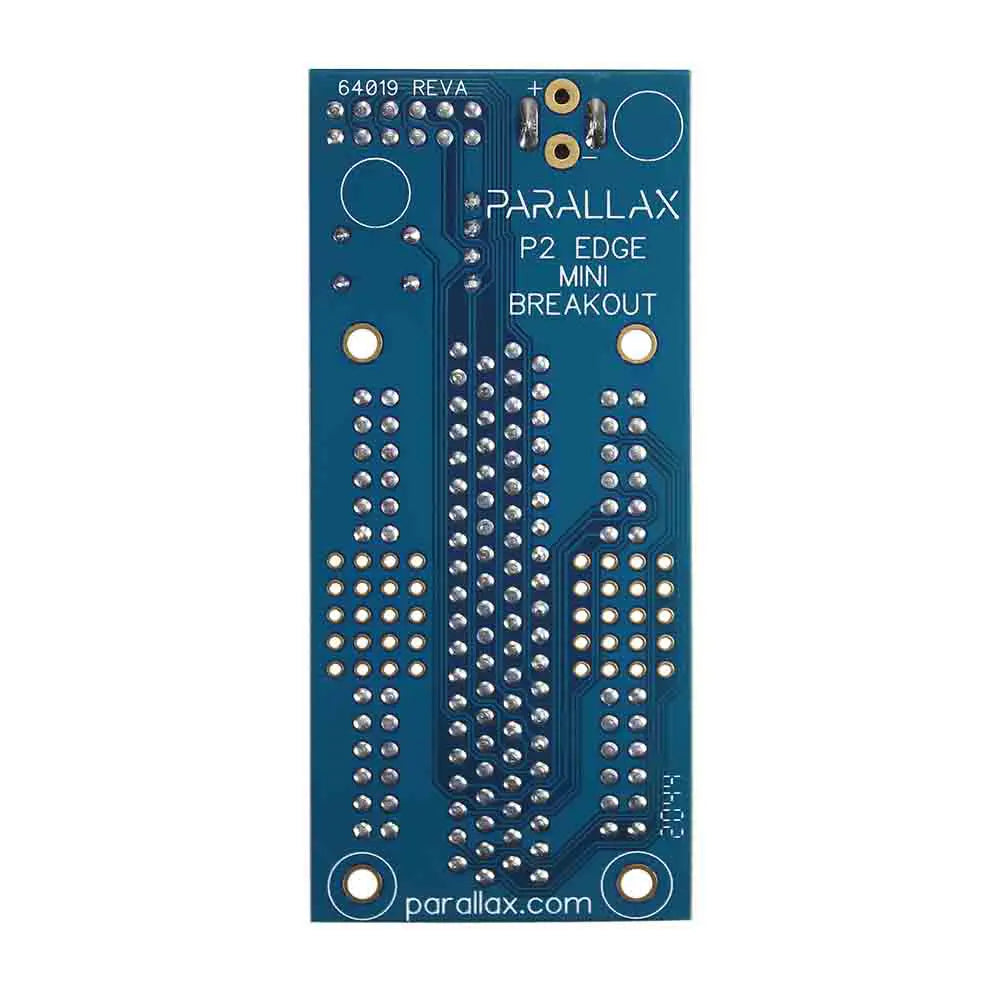

  • PCB Dimensions: 3.15 x 1.4 in (80 x 35.5 mm)
  • PCBs assembled, tested, and completed in Rocklin, California, USA
