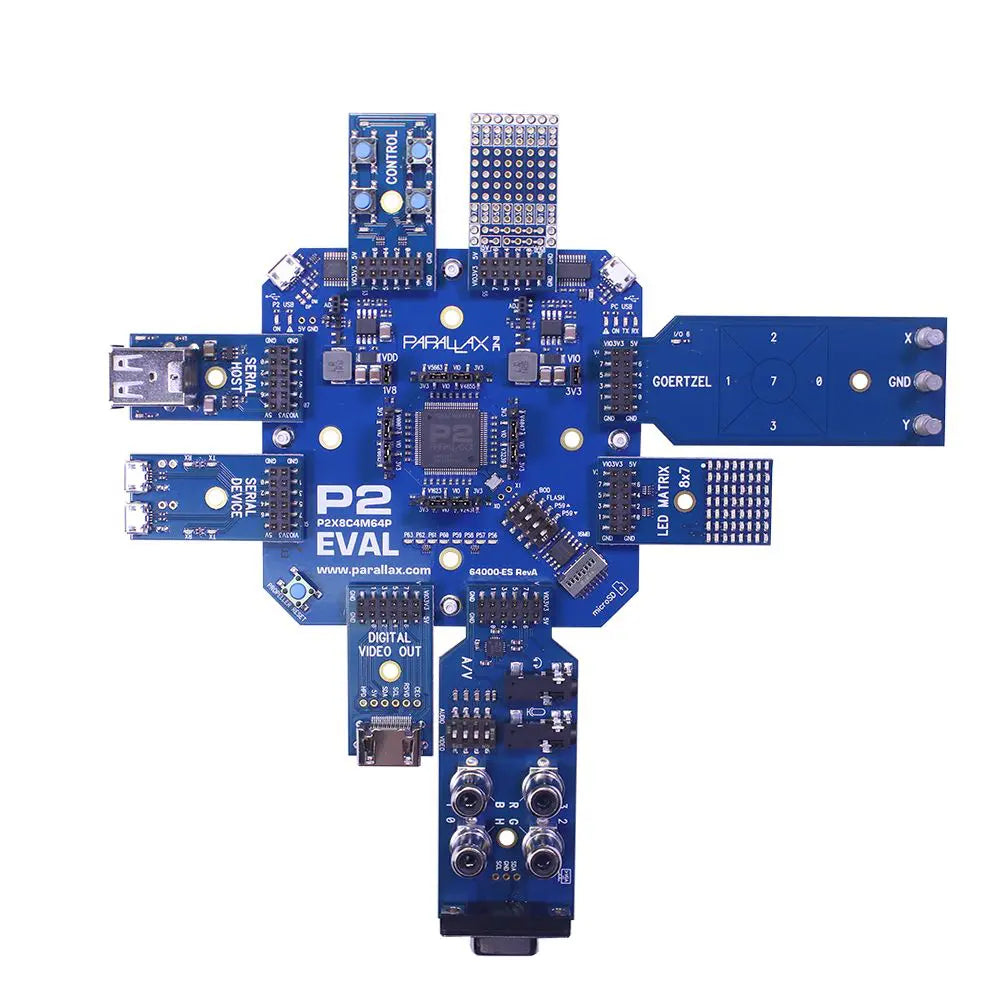

The P2-ES Eval Board Accessory Set is designed for use with Propeller 2 development board 2×6 accessory headers. Each board’s 2×6 pass-through sockets stack on top of accessory headers on the Propeller 2 Evaluation Board (#64000). It is also compatible with a P2 Edge Module Breadboard (#64020) or P2 Edge Mini Breakout Board (#64019) with a P2 Edge Module (#P2-EC) installed.
Multiple accessory boards may be connected at the same time, making it very convenient to fully explore the capabilities of the Propeller 2 multicore microcontroller. These boards are available individually, or in this Accessory Set with one of each.

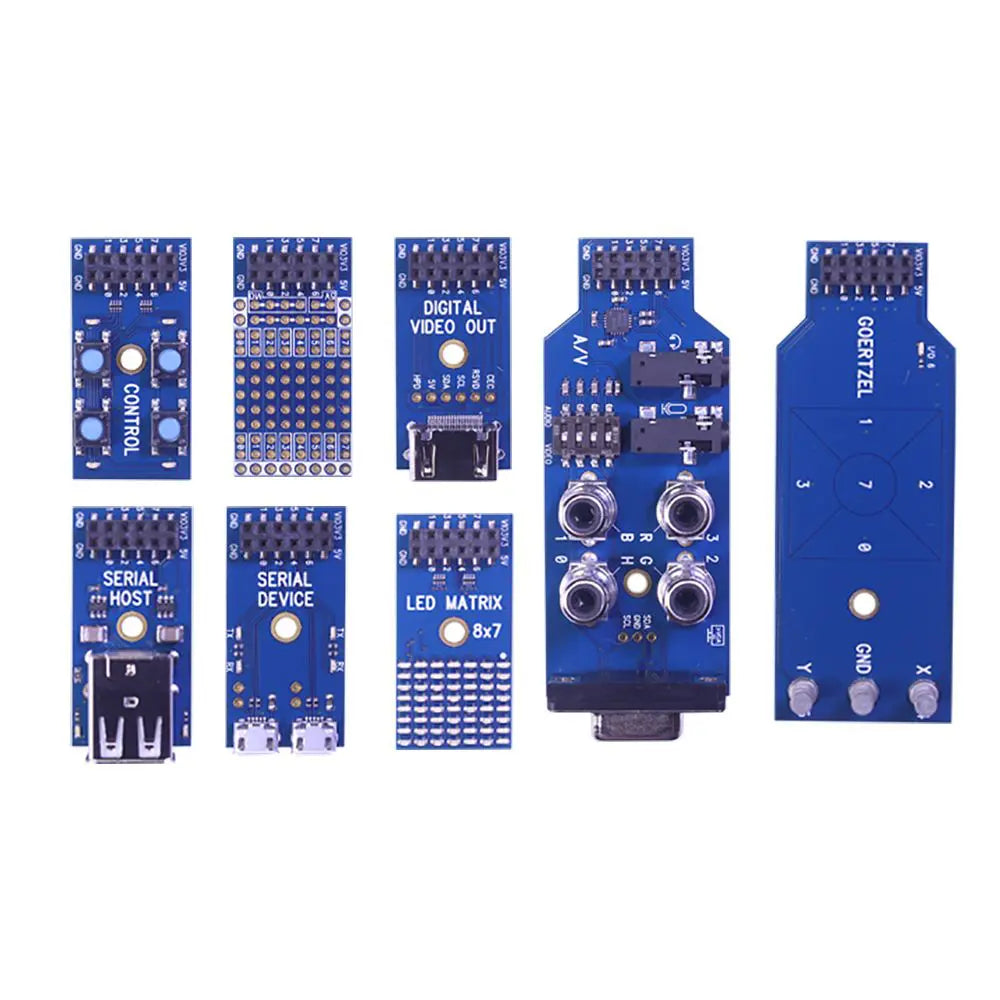

Accessory Boards Included:
- Control — four pushbuttons and four LEDs
- Serial Host — twin USB type A sockets
- LED Matrix — a 8×7 grid of green LEDs for Charlieplexing
- Digital Video Out — HDMI-type connector
- Mini Prototyping — 8×12 grid of plated thru-holes with labeled power and I/O
- Serial Device — two microUSB type sockets with individual activity LEDs
- Goertzel — a set of non-contact position sensing pads
- A/V Breakout — 3.5mm Audio in/out, four RCA audio/video, VGA
