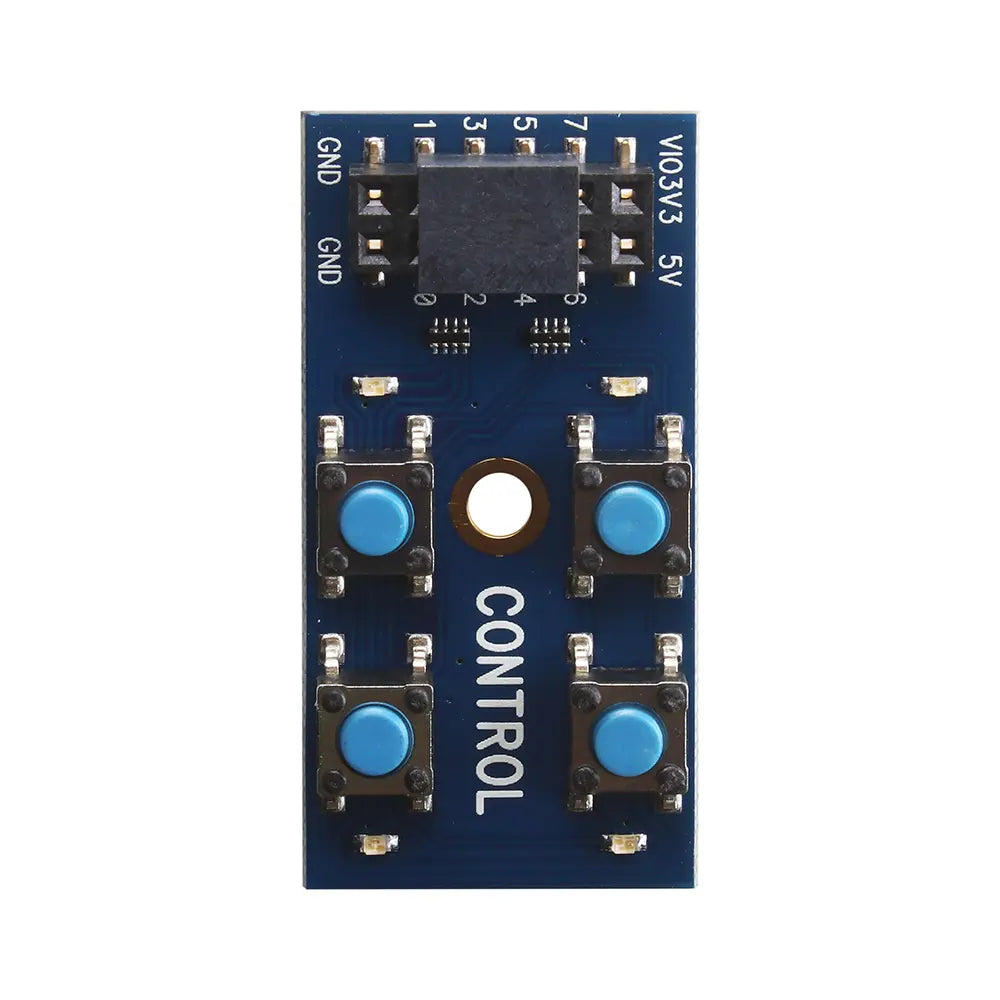

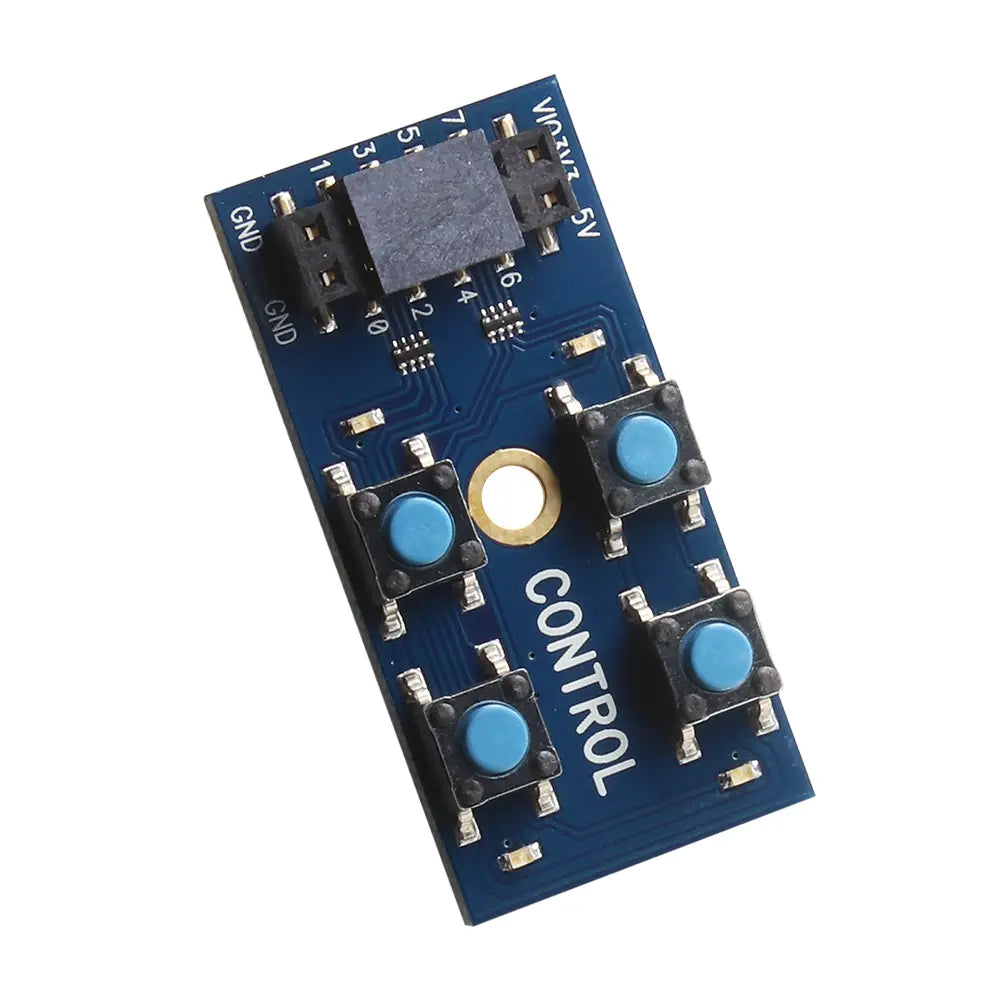

The P2 Eval Control Add-on Board board’s four push-buttons and four blue LEDs add convenient input and output for your Propeller 2 projects, speeding development. The pushbuttons allow simple digital input control of other circuits or processes, while the LEDs can provide visual indication of system states. Each active-high push-button has a 470 Ω series resistor to allow the I/O pin to be driven low while the button is asserted.

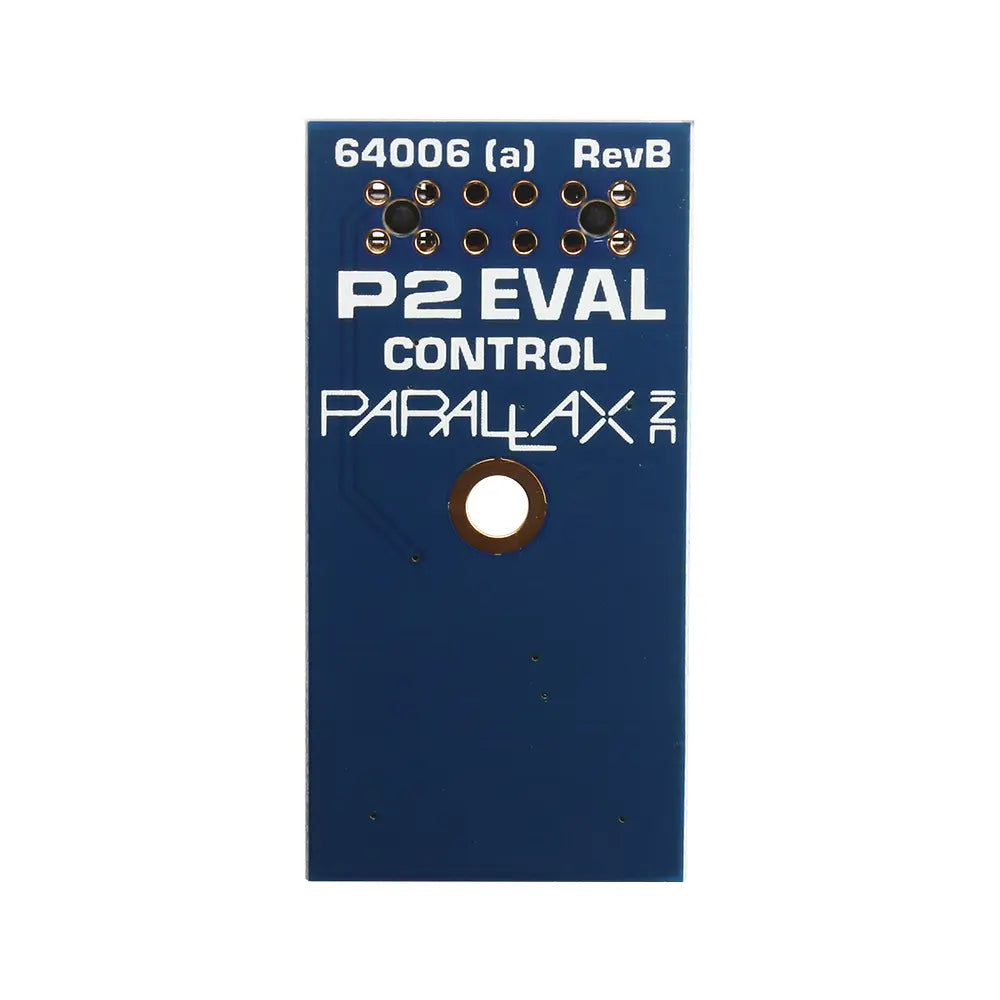

This board features a pass-through socket that stacks on top of a 2×6 accessory header on the Propeller 2 Evaluation Board. It is also compatible with a P2 Edge Module Breadboard or P2 Edge Mini Breakout Board with a P2 Edge Module (#P2-EC) installed.
P2 Eval Control Add-on Board Features:
- Four active-high pushbuttons with 470 ohm series resistor
- Four active-high LEDs with 470 ohm series resistor
- Independent I/O control of each LED
- PCB Dimensions: 1.6 x 0.8 in (4.1 x 2 cm)
