Parallax P2 Eval Digital Video Out Add-on Board

SKU: 32PX64006D

  • Sale
  • Regular price $12.95

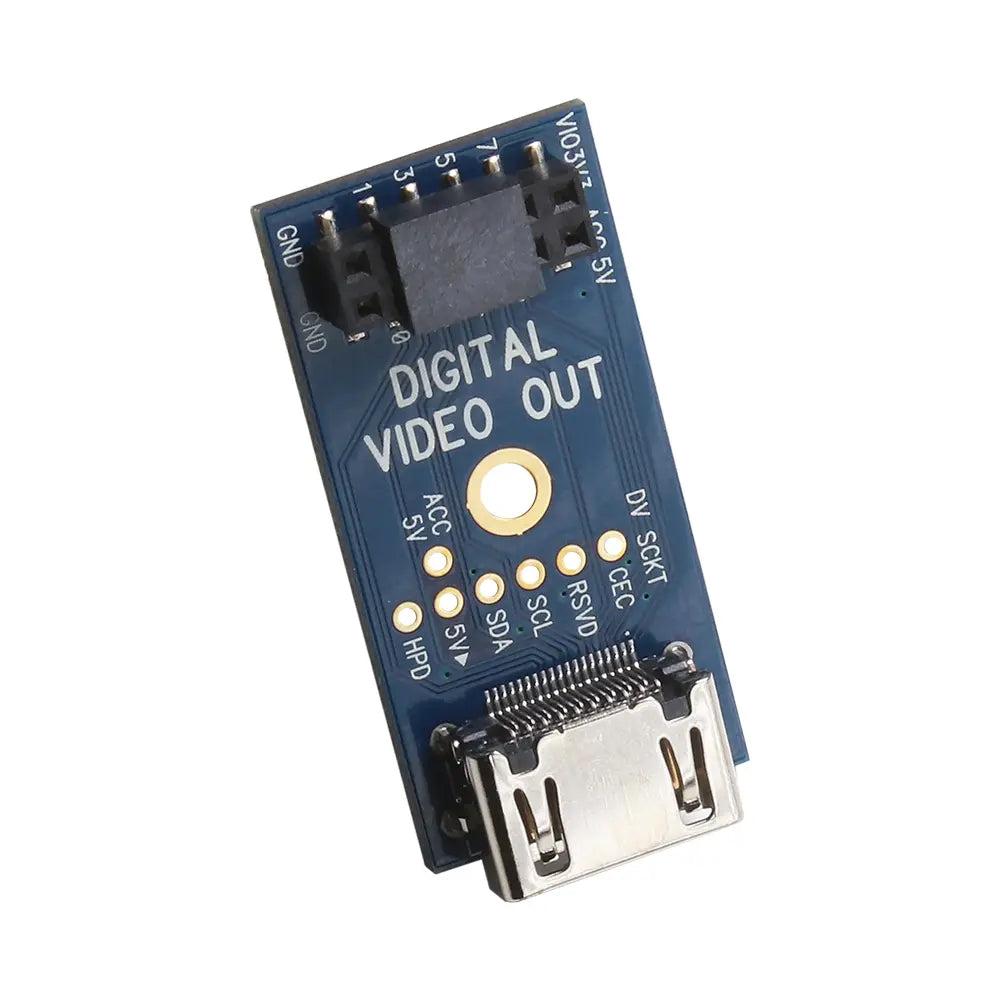

The P2 Eval Digital Video Out Add-on Board provides an HDMI-type connector which can be used for experimenting with various video standards in your Propeller 2 multicore microcontroller projects.

This board features a pass-through socket that stacks on top of a 2×6 accessory header on the Propeller 2 Evaluation Board (#64000). It is also compatible with a P2 Edge Module Breadboard (#64020) or P2 Edge Mini Breakout Board (#64019) with a P2 Edge Module (#P2-EC) installed.

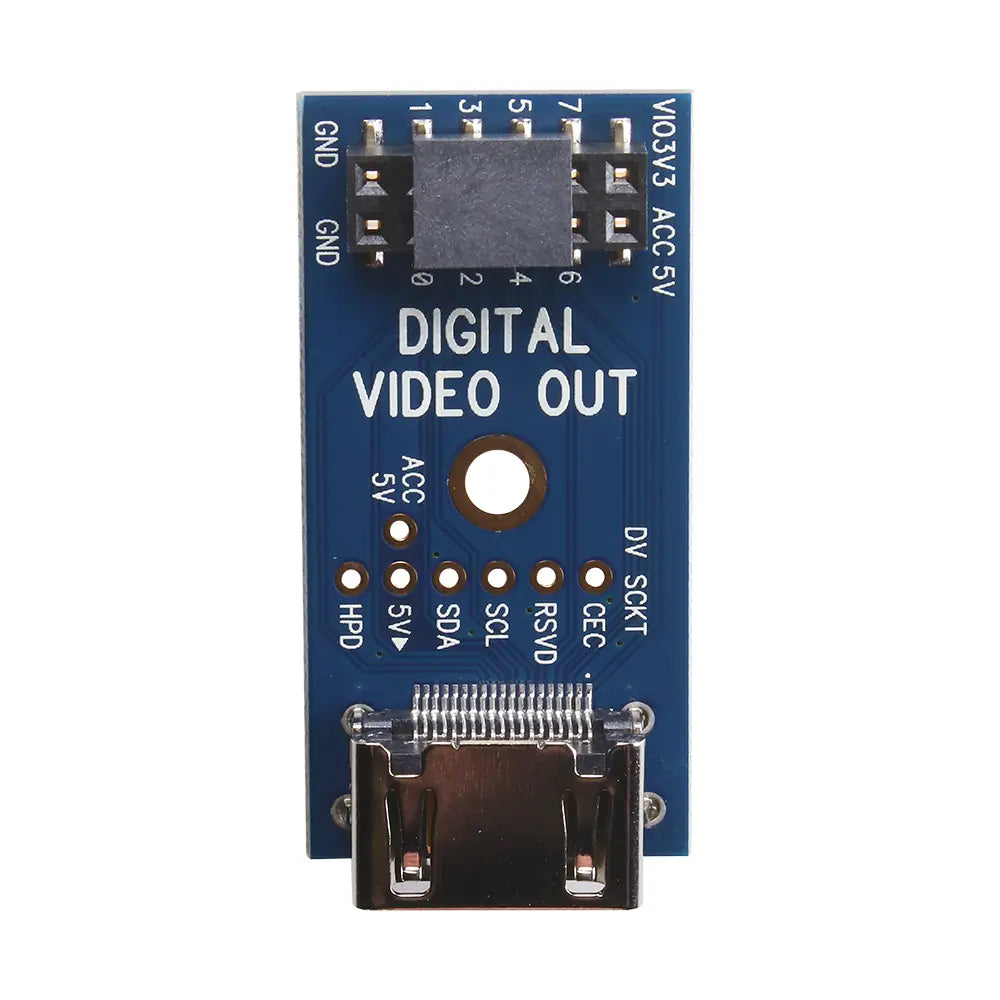

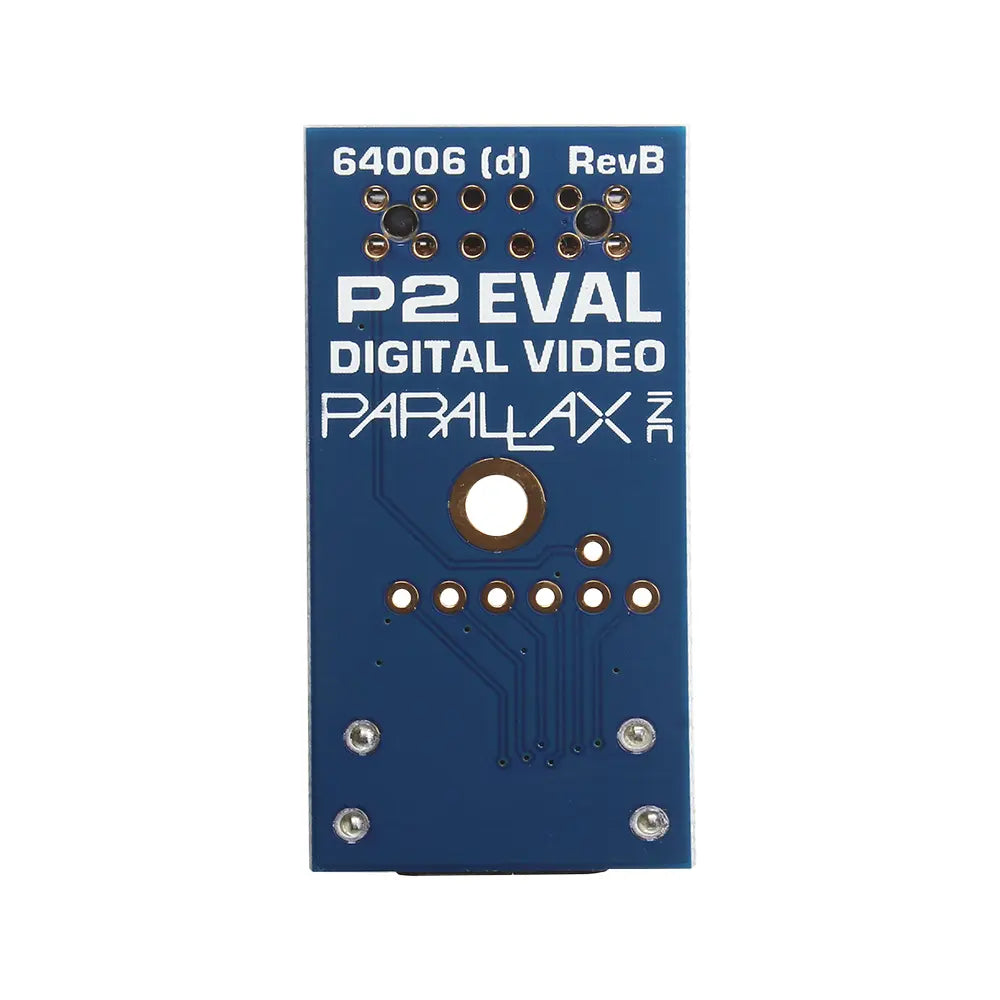

Unused signal pins from the video connector are labelled on the PCB next to an unpopulated 0.1” pitch row of 6 pads: CEC, RSVD, SCL, SDA, 5V▶, HPD.

Beside the 5V▶ output pad is another pad labelled “ACC 5V”. That is the 5V supply from the accessory socket. Some video monitors require a 5V signal connecting to the 5V▶ pin, so these two pads with 0.1” spacing make that convenient. For example, a 0.1” pitch header could be soldered here, and a shunt plug used when 5V is required to the monitor.

P2 Eval Digital Video Out Add-on Board Features:
  • HDMI connector
  • Direct connection to CLK-, CLK+, D0-, D0+, D1-, D1+, D2-, D2+
  • Plated thru-holes for accessing 6 unused video connector pins
  • Plated thru-hole for accessing the 5V supply from the accessory socket
  • Center mounting hole
  • PCB Dimensions: 1.6 x 0.8 in (4.1 x 2 cm)
