The P2 Eval Goertzel Add-on Board (Rev B) is a touch switch and non-contact position-sensing human input device for your Propeller 2 multicore microcontroller projects. Pads 0,1,2,3 and 7 are designed as a set of non-contact Goertzel input pads, while pads 4, 5 and 6 are typically used as on/off (switch style) inputs.
This board features a pass-through socket that stacks on top of a 2×6 accessory header on the Propeller 2 Evaluation Board (#64000). It is also compatible with a P2 Edge Module Breadboard (#64020) or P2 Edge Mini Breakout Board (#64019) with a P2 Edge Module (#P2-EC) installed.
P2 Eval Goertzel Add-on Board Features:

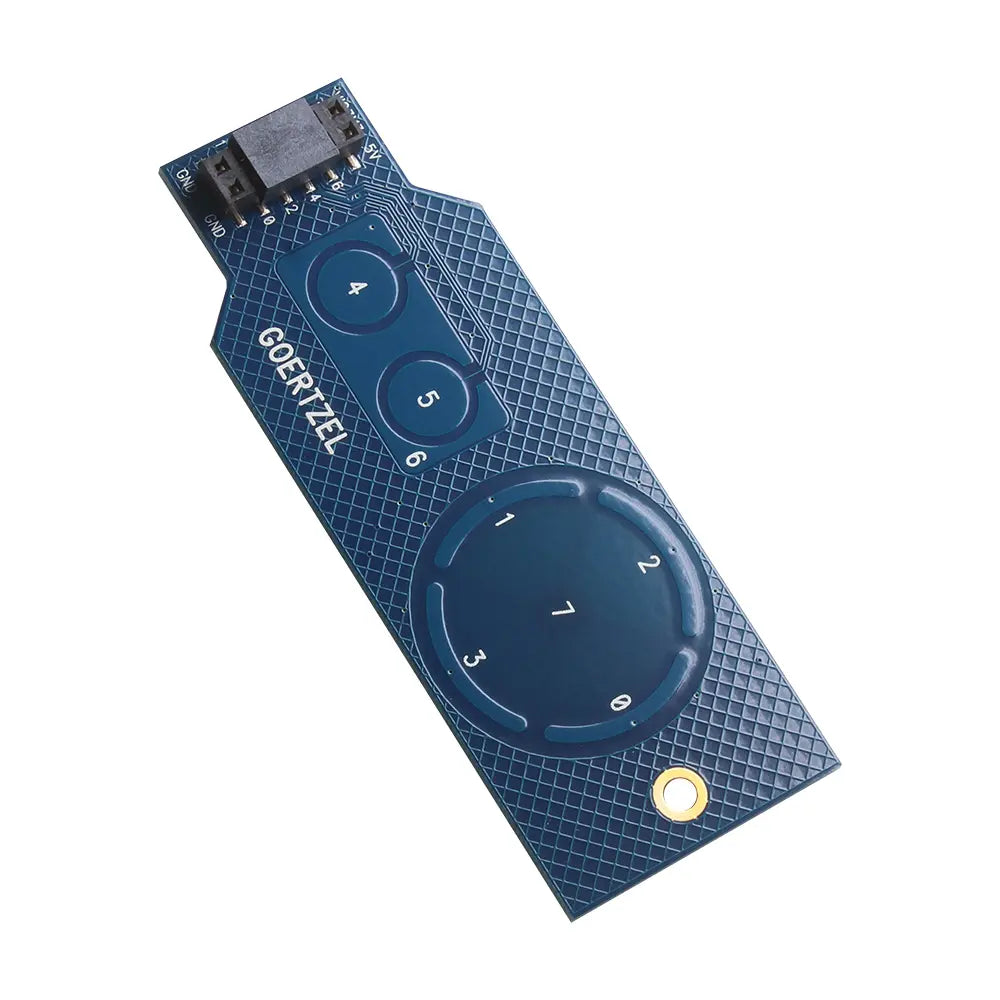

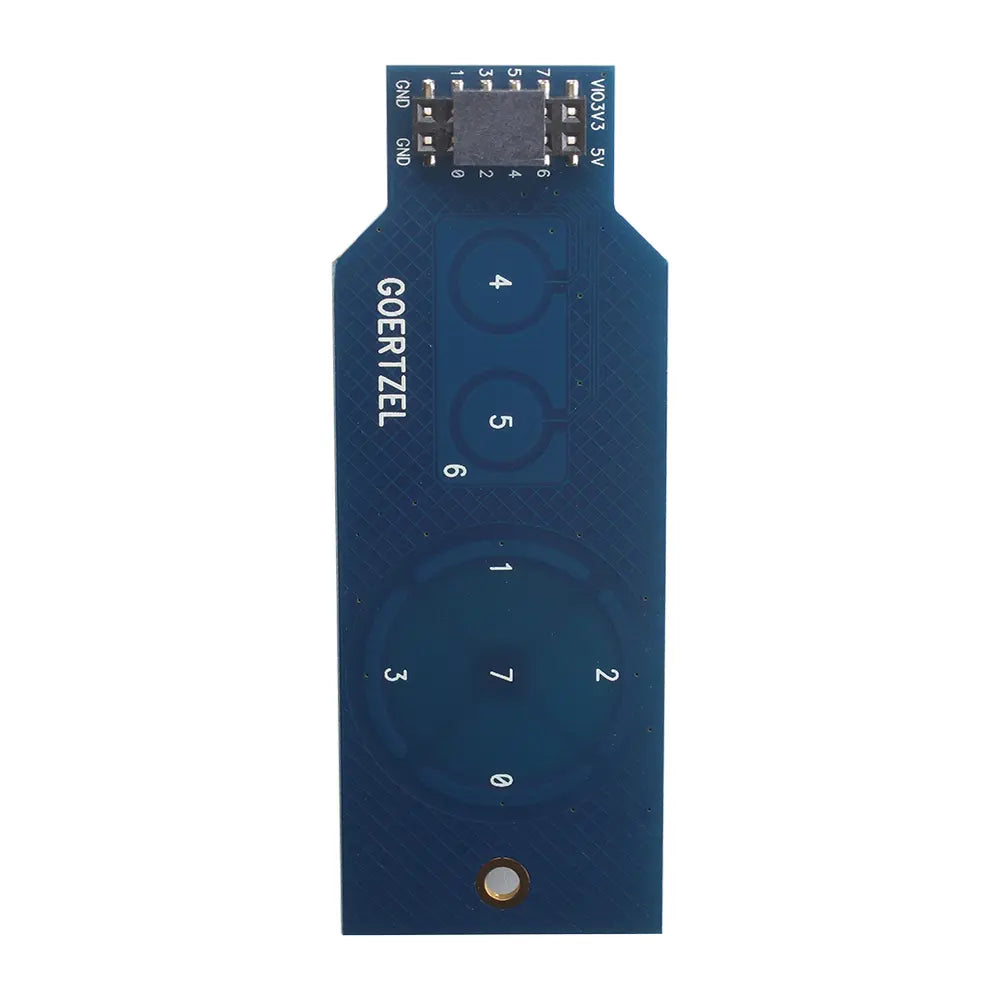

- Circular Goertzel non-contact pad array (four directions plus center)
- Three on-off touch switch pads
- PCB Dimensions: 3.2 x 1.2 in (8.13 x 3.01 in)
