Parallax P2 Eval Mini Prototyping Add-on Board

SKU: 32PX64006E

  • Sale
  • Regular price $9.95


The Mini Prototyping Add-on Board allows you to quickly solder together a custom peripheral for your Propeller 2 development system with a compatible accessory header.

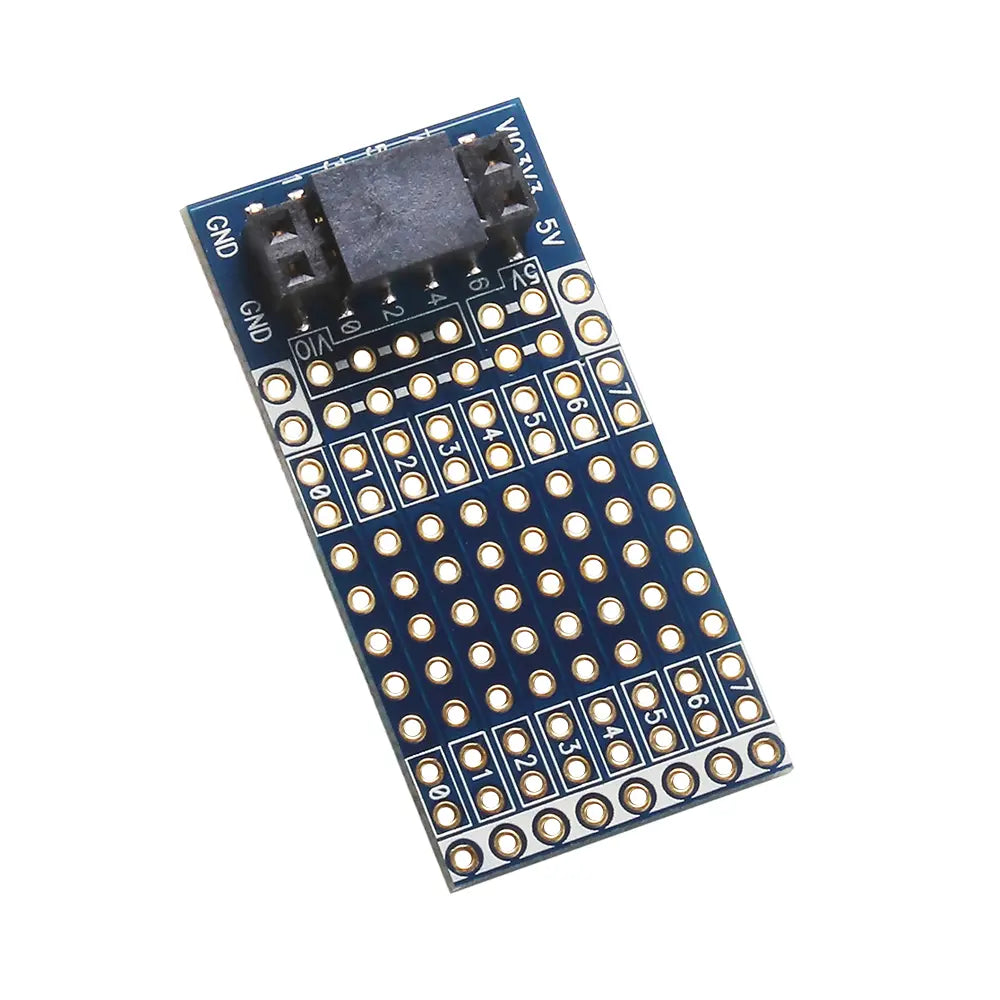

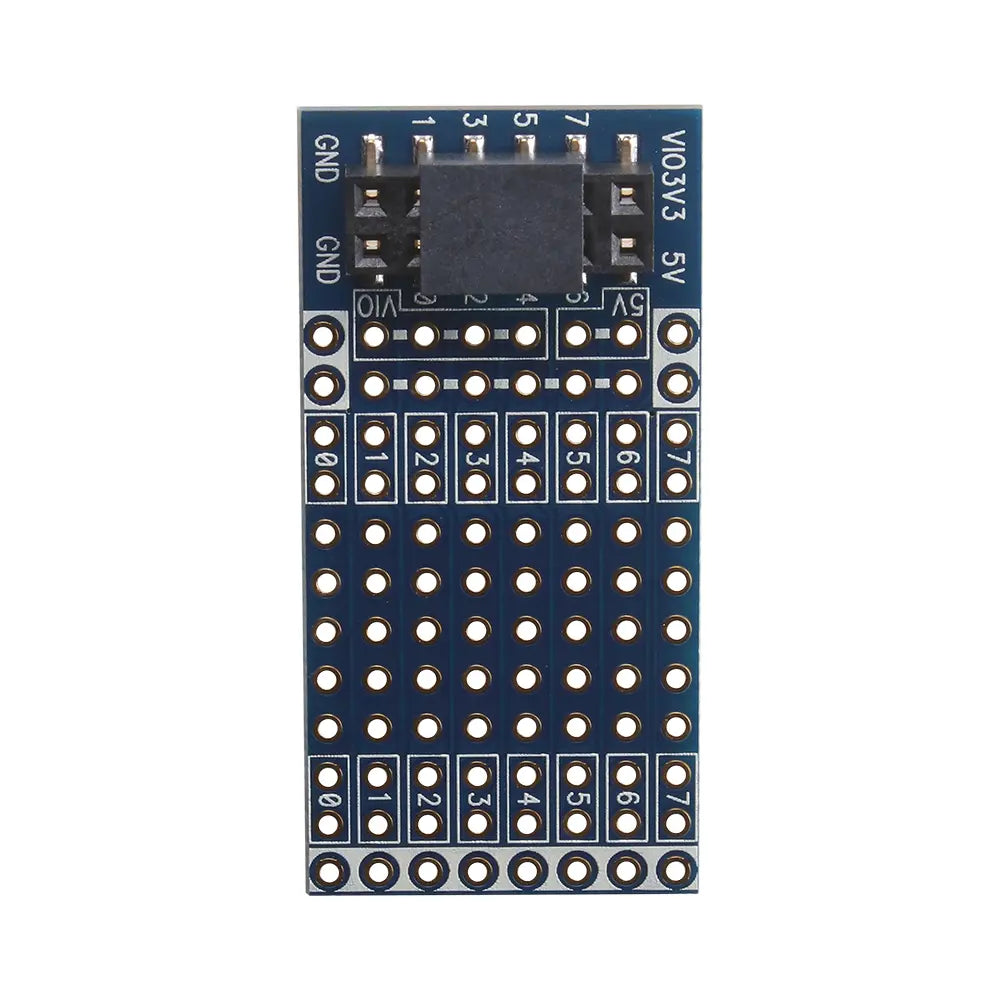

The Mini Prototyping Add-on Board provides an 8×12 grid of plated thru-holes. Ground holes are connected on both sides of the PCB, and marked on the top side by white silk blocks.

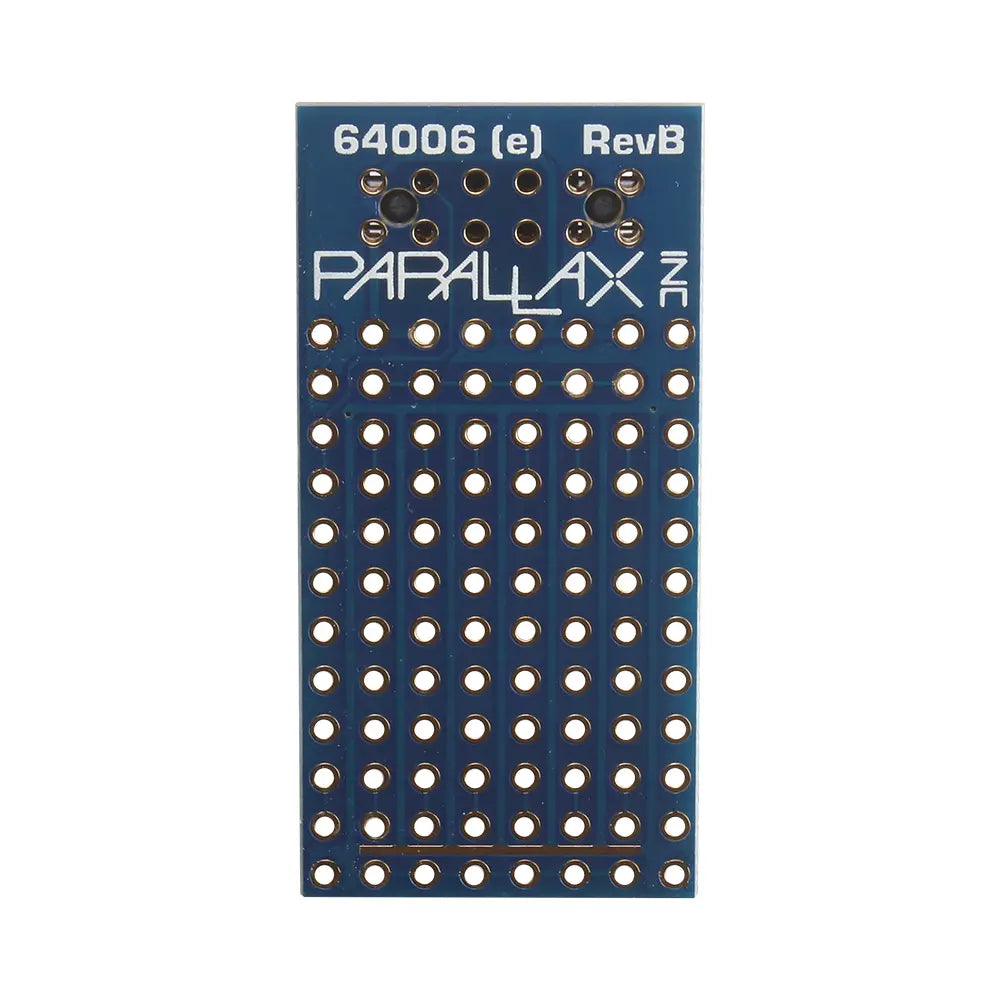

Other holes that are joined are marked on the top side of the PCB with silk dashes or boxes. And they are linked on the bottom of the PCB with copper traces that are isolated clearly to enable easy cutting as required. Holes inside a white box are joined to the signal or power marked. Holes joined by dashes are joined together, but are not joined to any signal.

This board features a pass-through socket that stacks on top of a 2×6 accessory header on the Propeller 2 Evaluation Board. It is also compatible with a P2 Edge Module Breadboard or P2 Edge Mini Breakout Board with a P2 Edge Module (#P2-EC) installed.

P2 Eval Mini Prototyping Add-on Board Features:
  • 8×12 grid of plated thru-holes
  • Power and I/O pin header access holes clearly marked
  • Silkscreen-marked common ground holes
  • Exposed ground strip on PCB back for easy bridging to ground
  • PCB Dimensions: 1.6 x 0.8 in (4.1 x 2 cm)
