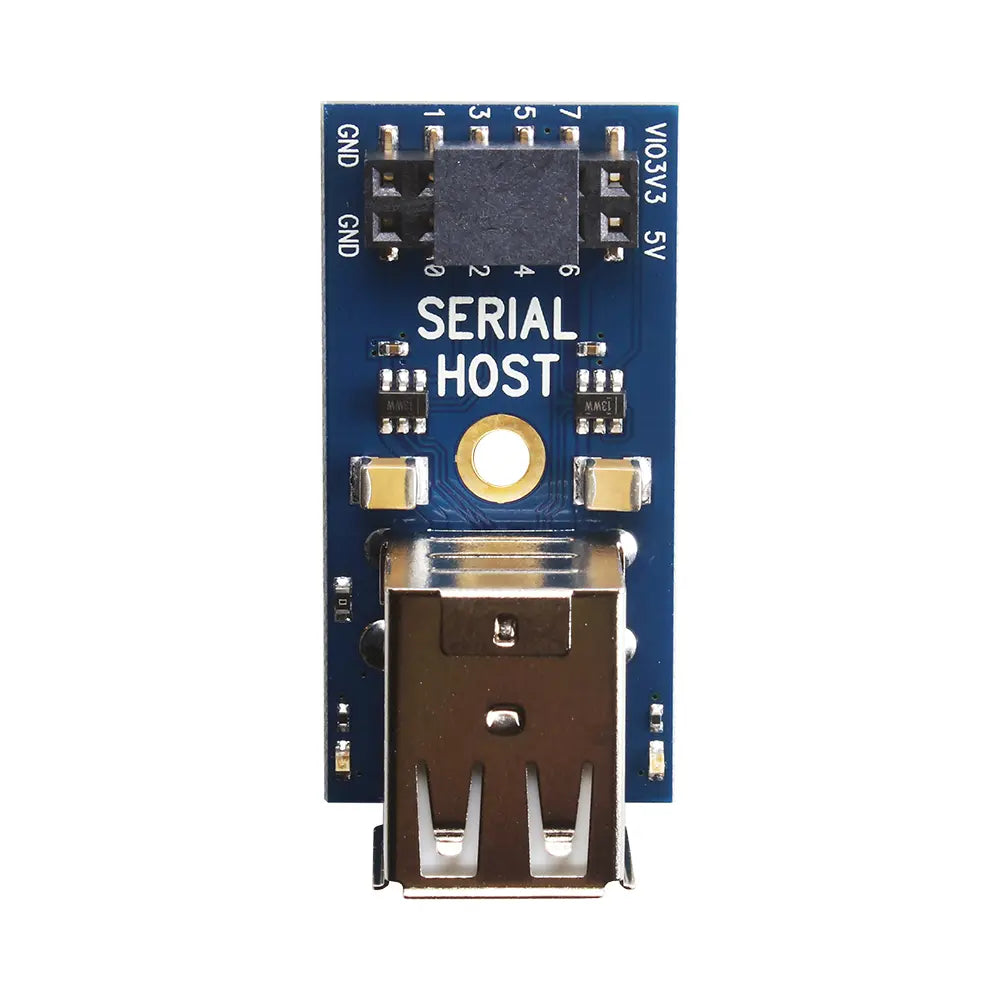

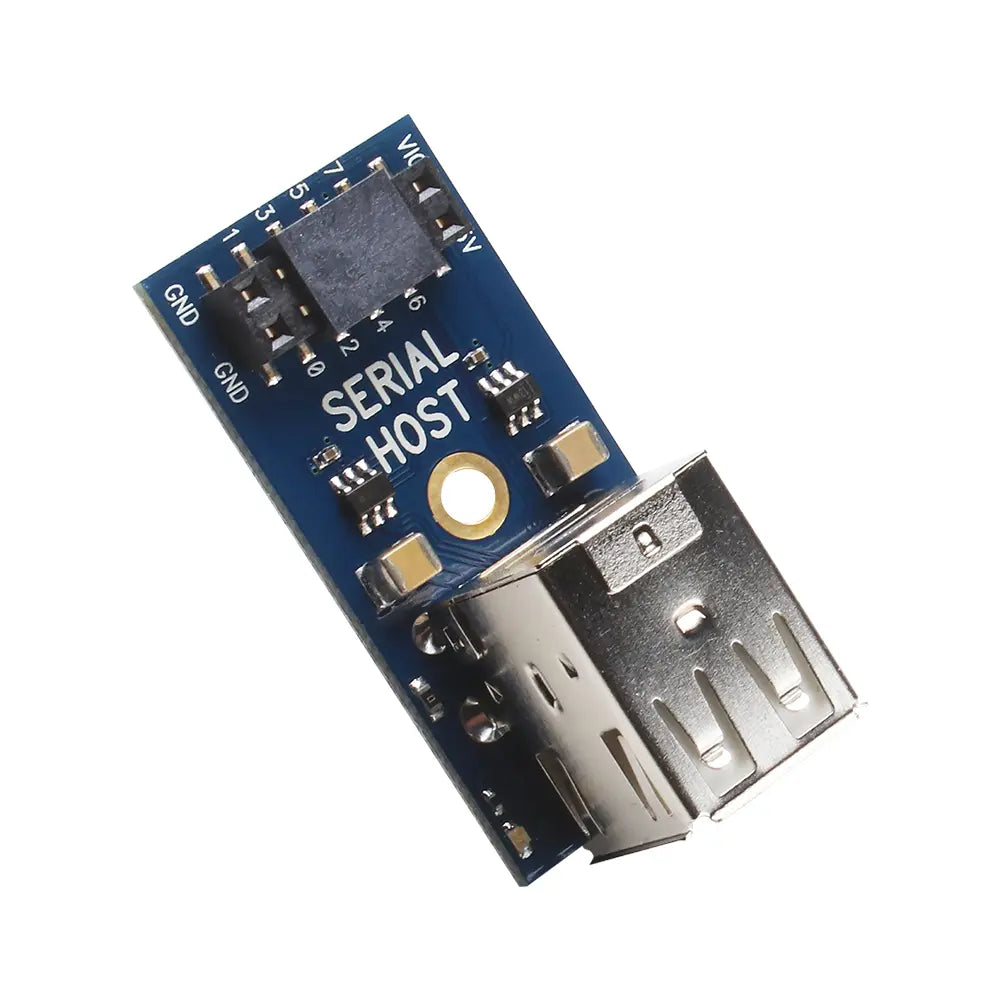

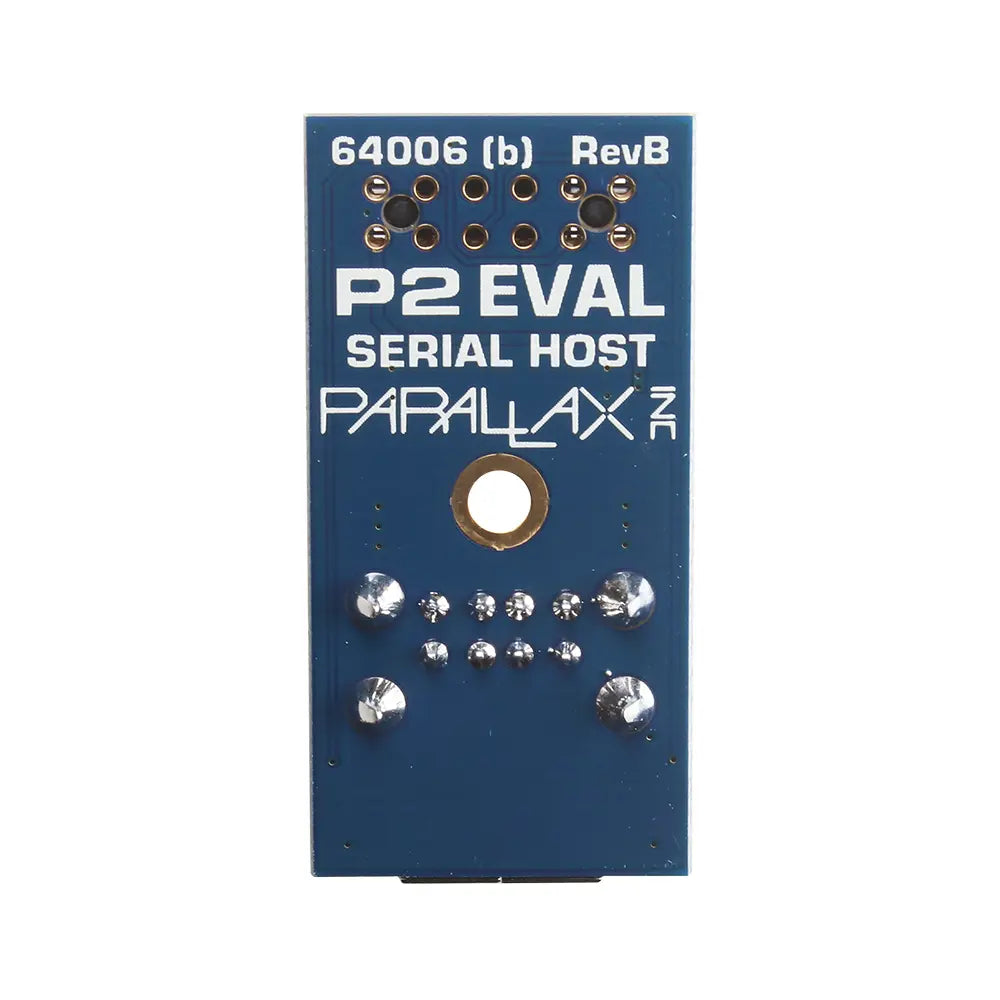

The P2 Eval Serial Host Add-on Board allows two USB-type devices to be connected simultaneously, such as a keyboard and mouse, to your Propeller 2 multicore microcontroller project. This .board has twin USB-type A sockets, each protected with a current-limited load switch that allows up to 500 mA continuous current, subject to overall available system power. Additional protection includes reverse current blocking, short-circuit protection, over temperature protection and VBUS soft start.
This board features a pass-through socket that stacks on top of a 2×6 accessory header on the Propeller 2 Evaluation Board. It is also compatible with a P2 Edge Module Breadboard or P2 Edge Mini Breakout Boardwith a P2 Edge Module (#P2-EC) installed.
P2 Eval Serial Host Add-on Board Features:
- Twin USB A sockets
- Each socket provides up to 500 mA continuous current
- Reverse-current, short-circuit, and over-temperature protection
- VBUS soft start support
- PCB Dimensions: 1.6 x 0.8 in (4.1 x 2 cm)
