Parallax

Parallax Vibration Motor Flat Coin

SKU: 32PX28821

  • Sale
  • Regular price $4.95

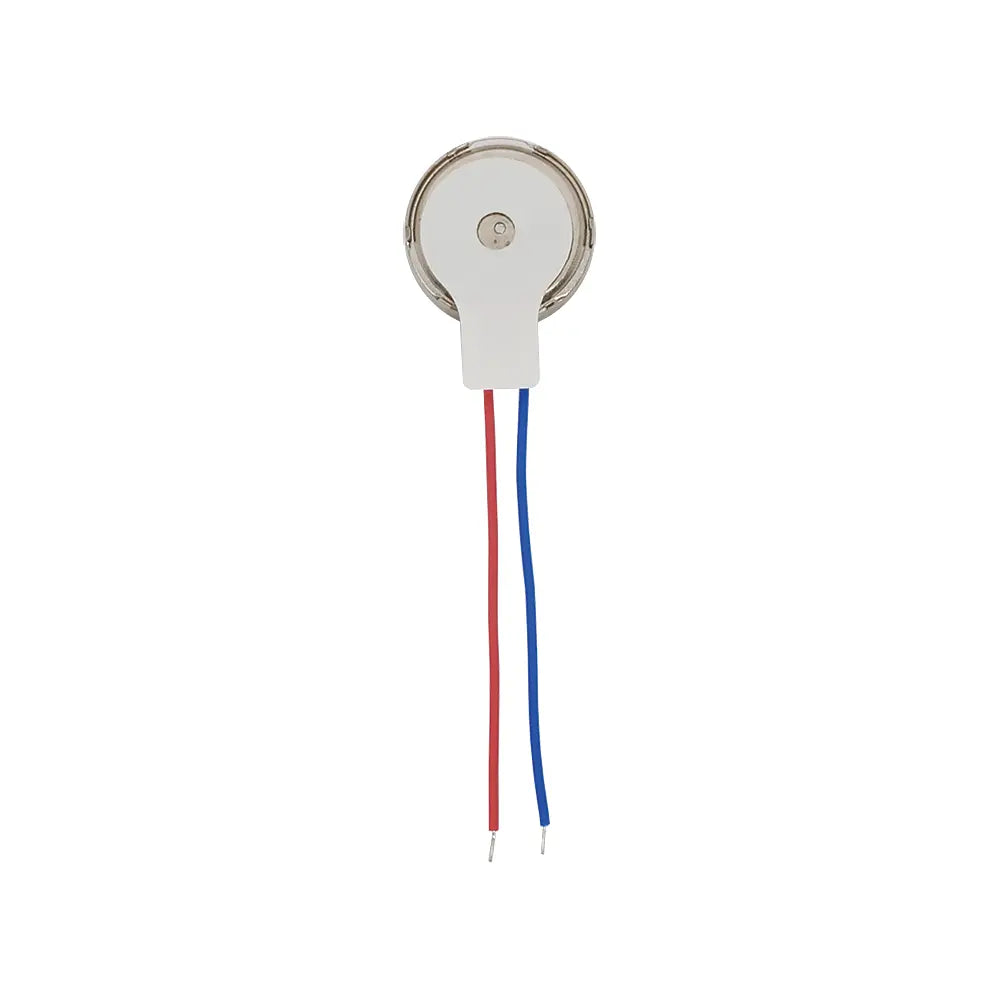

This is a small flat coin vibration motor with adhesive backing. Vibration motors are used today in an endless number of applications; these are quality motors used in medical, automotive, consumer, and industrial products.

Specific applications in which our vibrating motors could be used are in feedback of handheld devices, touch screen feedback, emergency alerting, simulations, video gaming, and other operator feedback applications.

Features:
  • Small size makes it easy to mount in or on your project
  • Low noise level enables feedback without unwanted distractions
  • Rotates both CW and CCW for ease of use and installation
Application Ideas:
  • Video game controller
  • User input feedback
  • Touch Sensory
Details:
  • Rated Voltage: 3.0 VDC
  • Operating Voltage: 2.7 ~ 3.3 VDC
  • Rated Current: 90 mA @ Rated Voltage
  • Operating Temp Range: -20 °C ~ +60 °C
  • Mechanical Noise: 50 dB(A) Max
  • Rated Speed: 9,000 RPM @ Rated Voltage
  • Rotation: CW and CCW
  • Dimensions: 1 cm (diameter) x .27 cm (thickness)
  • Wire Length: 2.54 cm
