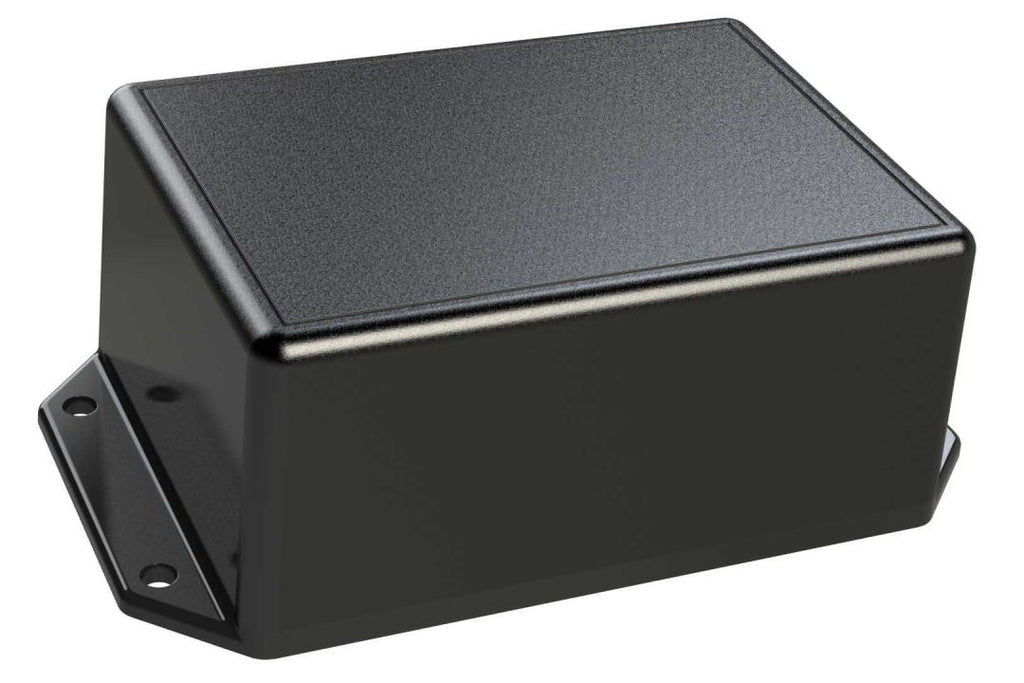

The TF-3420TX is a potting case molded from flame-retardant black ABS plastic with flanges located at the opening of the housing. Designed for indoor use, the enclosure is best suited for electronic applications.
- External Dimensions (in): 4.38 x 3.13 x 2.00 in
- External Dimensions (mm): 111 x 80 x 51 mm
- Internal Dimensions (in): 4.17 x 2.91 x 1.90 in
- Internal Dimensions (mm): 106 x 74 x 48 mm
- Wall Thickness: 0.07 in
- Weight: 0.19 lbs
- Product Material: ABS
- Application: Indoor use
- UV Resistant: No
- Waterproof: No
- External Mounting Style: Molded-on flange
- Internal Mounting Option: No PCB mounting bosses
- Flame Rating: UL94 5VA
