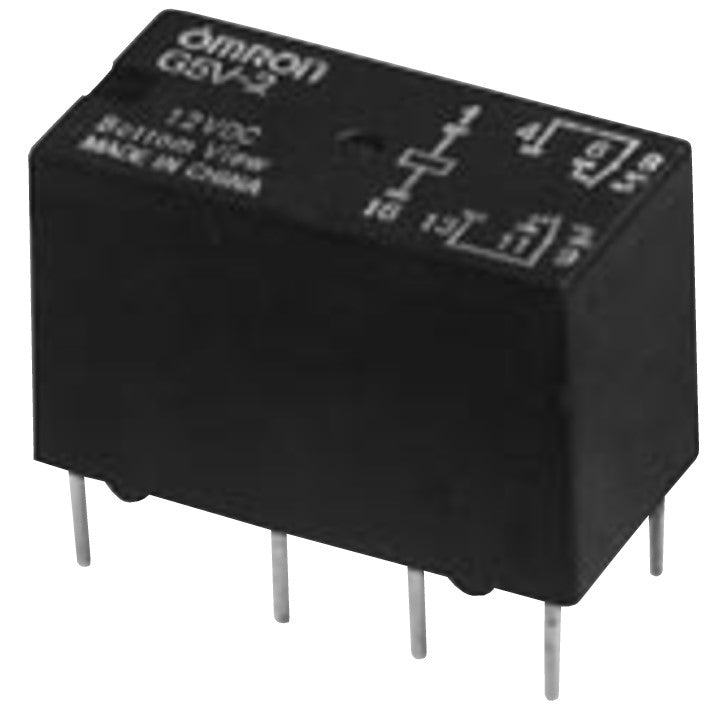

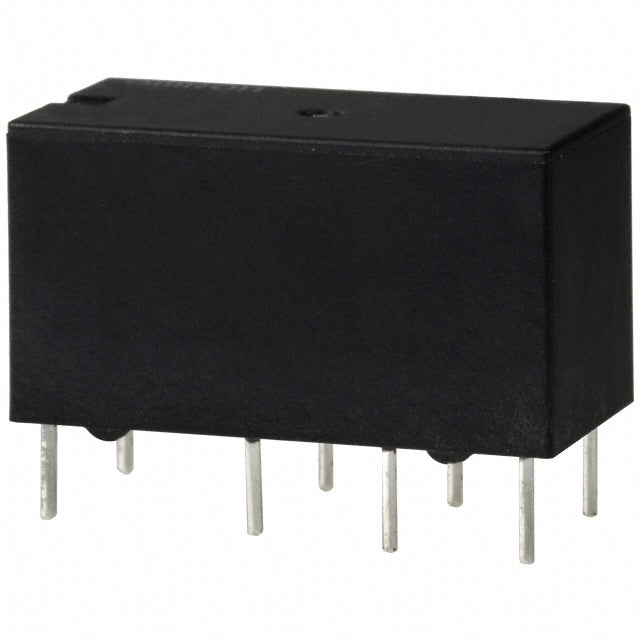

Relay General Purpose, G5V-2-H1-9DC, 1A 9V DC

SKU: 22Z3673ND

  • Sale
  • Regular price $3.25
Shipping calculated at checkout.


Features:

  • Suitable for handling low signals in computer peripherals, telecommunications and security equipment
  • Capable of switching loads up to 2 A
  • Conforms to FCC part 68 1500 V surge withstand
  • Reliable bifurcated crossbar contacts
  • Fully-sealed construction

Specifications:

  • Load: Resistive load (p.f. = 1)
  • Rated load: 0.50A at 125VAC, 2A at 30 VDC
  • Contact material: Ag (Au clad)
  • Carry current: 2A
  • Max. operating voltage: 125VAC 125VDC
  • Max. operating current: 2A
  • Max. switching capacity: 62.50VA, 60W
  • Min. permissible load: 10 µA, 10 mVDC
