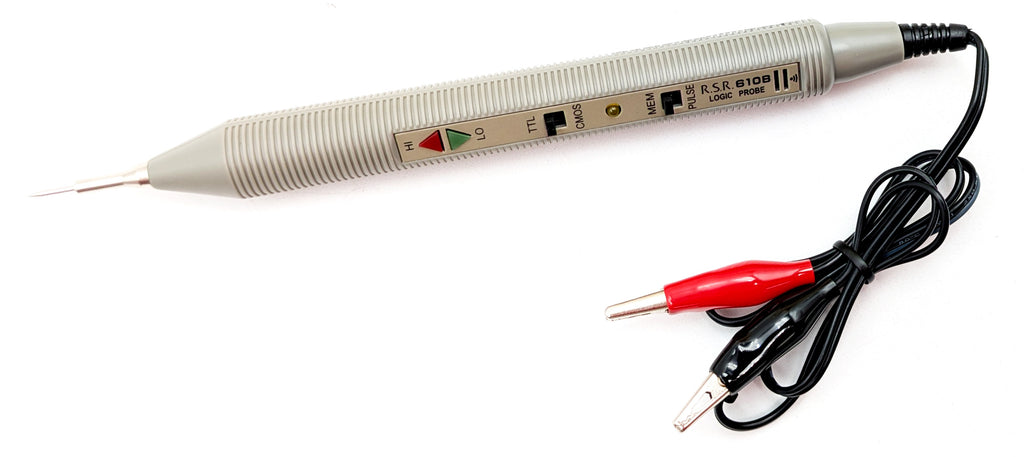

RSR Circuit Powered Logic Probe Model 610B with Audio Beeper, 20 MHz Frequency with TTL & CMOS

SKU: 01LP610B

  • Sale
  • $19.50

Features:

  • The Logic Probe is ideal for troubleshooting and analysis of logic circuits. It works as a level detector, a pulse detector, a pulse stretcher, and a pulse memory.

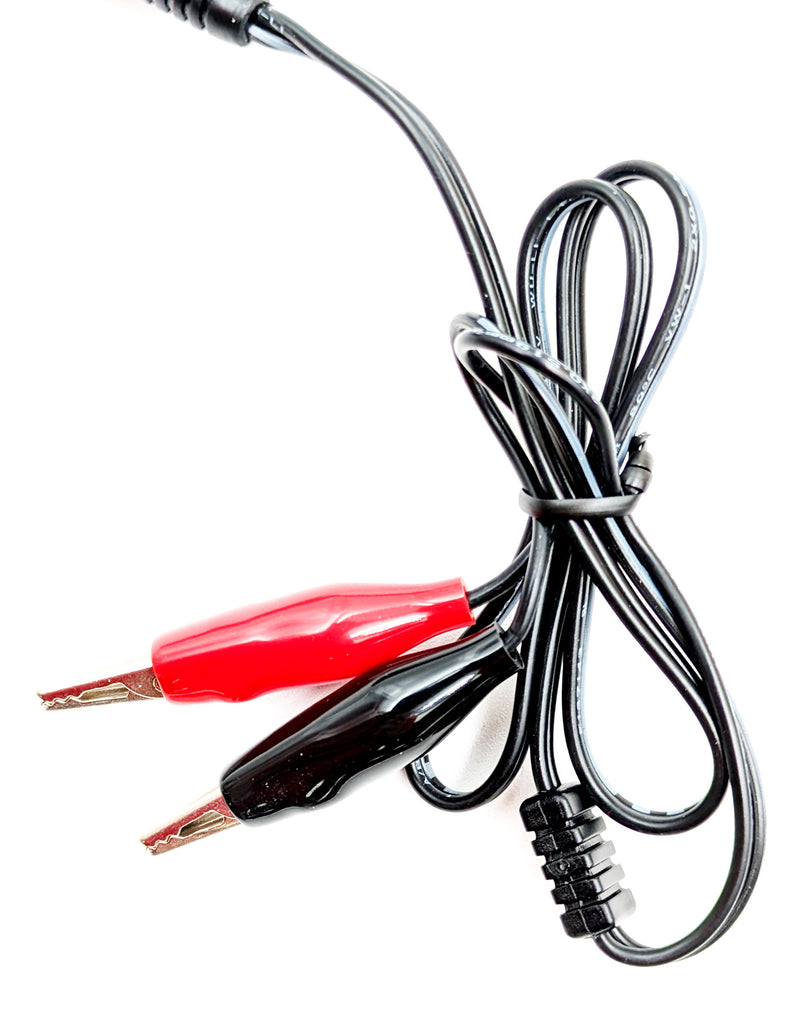

  • Circuit powered

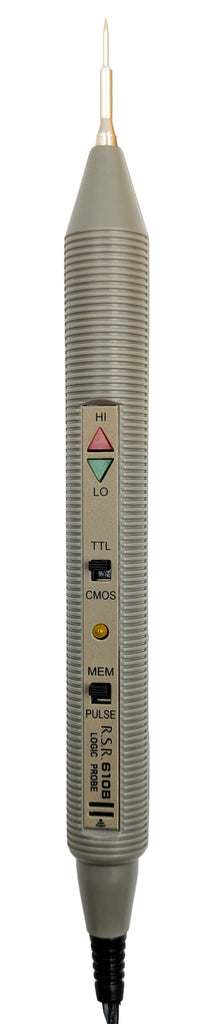

  • LED indicators: HI (red LED), LO (green LED) and PULSE/MEMORY (yellow LED)
  • Logic HI; LO; PULSER with different beeper tone

General Specifications:

  • Operating Temperature: 0°C to 50°C, 80% Relative Humidity
  • Storage Temperature: –20C to 65°C, 75% Relative Humidity
  • Weight: 610B 1.6 Ounces (45g) approx.
  • Dimensions: 8.2 Inches (21 cm) Long x 0.7 Inch (1.8cm) Wide x 0.7 Inch (1.8cm) Deep

Electrical Specifications:

  • Maximum Input Signal Frequency: 20MHz
  • Input Impedance: 1MΩ
  • Operating Supply Range: 4V DC to 18V DC
  • TTL Logic Levels: Logic "1" > 2.3 ± 0.2V DC, Logic "0" < 0.8 ± 0.2V DC
  • CMOS Logic Levels: Logic "1" > 70% Vcc ± 10%, Logic "0" < 30% Vcc ± 10%
  • Minimum Detectable Pulse Width: 30 Nanoseconds
  • Maximum Signal Input Protection: ± 220V AC/DC (15 seconds)
  • Power Supply Protection: ± 20V DC
  • Pulse Indicator Flash Time: 500ms
