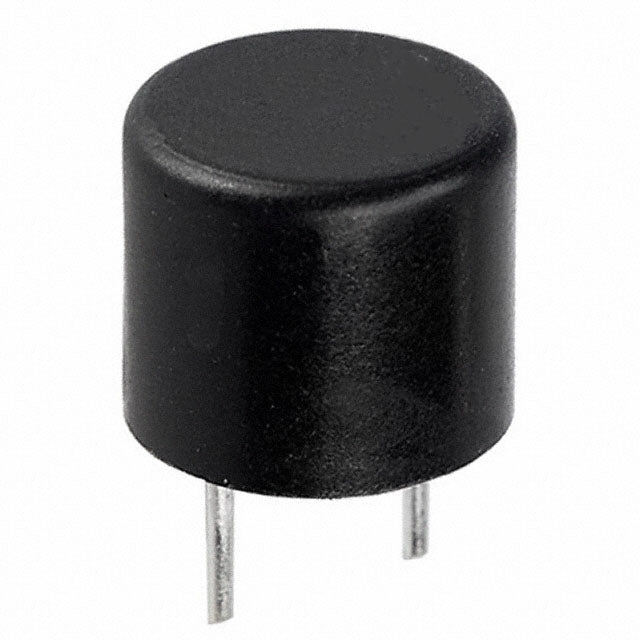

Slow Blow Fuse, 1A, 250V AC, DC Fuse Breadboardable/Board Mount, Through Hole Radial, Can, Vertical

SKU: 2000MRT1

  • Sale
  • Regular price $0.50


Features:

  • Time lag (250V AC)
  • Meet IEC standard 60127-3
  • Wide operating temperature range
  • Halogen Free
  • Lead Free
  • AEC-Q Compliant

Specifications:

  • Mounting Type: Through Hole
  • Fuse Type: Board Mount (Cartridge Style Excluded)
  • Current Rating (Amps): 1A
  • Voltage Rating - AC: 250 V
  • Response Time: Slow Blow
  • Package / Case: Radial, Can, Vertical
  • Breaking Capacity @ Rated Voltage: 50A
  • Melting I²t: 7
  • Operating Temperature: -55°C ~ 125°C

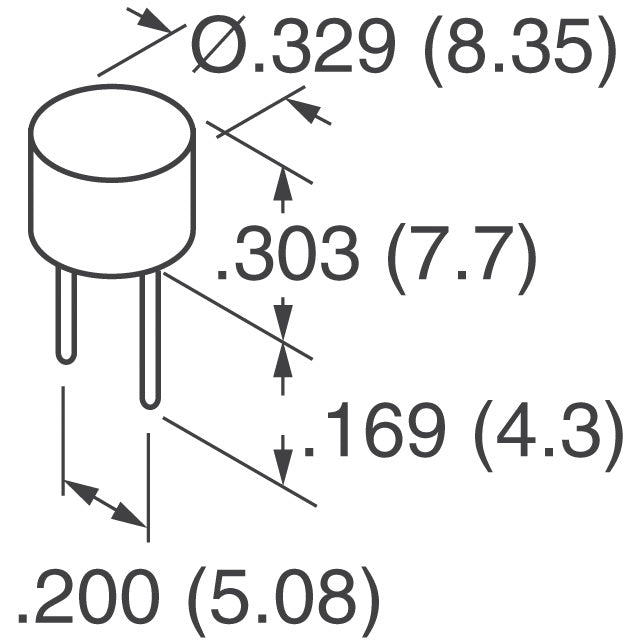

  • Size / Dimension: 0.329" Dia x 0.303" H (8.35mm x 7.70mm)
  • DC Cold Resistance: 0.07 Ohms

Applications:

  • Provide individual protection for components or internal circuits
  • Power supplies
  • Battery chargers
  • Consumer electronics
  • Adapter
  • Industrial controllers
