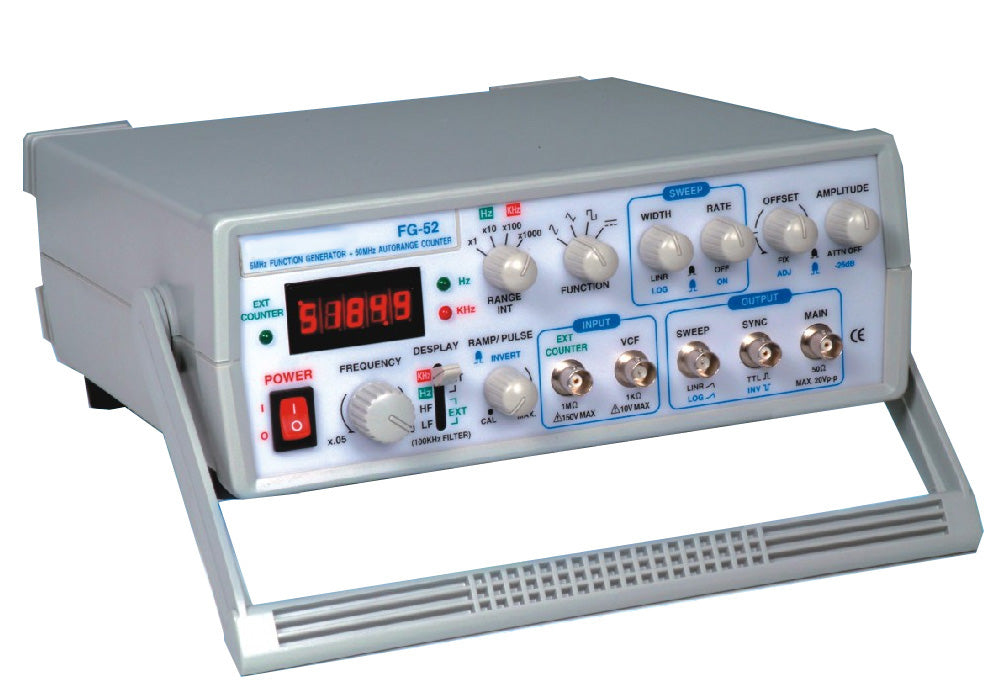

Sweep Function Generator, 5MHz, 4 Waveforms (Sins, Square, Triangle, DC)

MAIN OUTPUT

• Frequency Range: 0.5Hz to 5MHz in 8 Range
• Waveforms: 4 Waveforms (Sins, Square, Triangle, DC)
• Amplitude: 20Vp-p / Open, 10Vp-p / 50Ω Load
• Attenuator: X20 (-26dB) ±2%, X1 (0dB)
• Output Impedance: 50Ω (±2%)
• DC Offset: ±10V With Pull ADJ Switch
• Freq Accuracy: ±0.02% + 1D
• Distortion: <1%, 1Hz to 100KHz
• Rise / Fall Time: <90ns
• V.C.F Input: 0 to ±10V control frequency to 1000:1

SYNC OUTPUT

• Rise time: <60ns
• Level: >3Vp-p (open)
• Waveform: Square, pulse

SWEEP

• MODE: Linear / Log Sweep
• Width: >100:1 continuously variable
• Rate: From 10mS to 5S continuously variable
• Sweep Output: 10Vp-p (open)
• Output Impedance: 1KΩ ±2%

COUNTER

• Display: 5 digits 0.36" Red LED display with Autorange
• Gate time: Auto Select (0.25S~10S)
• Resolution: 0.001Hz
• MODE: INT / EXT HF / EXT LF (100KHz Filter)
• Accuracy: ±Time Base Accuracy ±1count
• Time Base: 20MHz ±20PPM (23±5°C)
• Frequency Range: 0.2Hz~60MHz
• Sensitivity: 25m Vrms at 1MHz
• Max Input: 150Vrms
• Input Impedance: 1MΩ ±2%
• Sensitivity: AC115V/230V ±10%, 50/60Hz, 25watt
• Max Input: 275(W) X 90(H) X 300(D) mm
• Input Impedance: 5.5 lbs (2.5kg)
