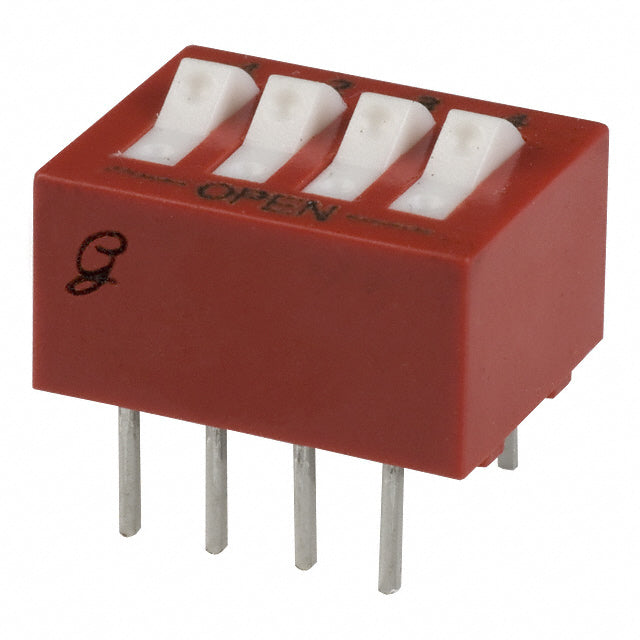

DIP Switch, SPS Rocker Style, 4 Positions, 150mA 30VDC

Electronix Express

DIP Switch, SPS Rocker Style, 4 Positions, 150mA 30VDC

SKU: 17DIP4SSGRE

  • Sale
  • $3.70
  • Number of Positions: 4
  • Switch Type: DIP
  • Actuator: Raised
  • Terminal Pitch: 2.5 mm
  • Contact Form: SPST
  • Termination Style: Solder Pin
  • Current Rating: 150 mA
  • Voltage Rating DC: 30 VDC
  • Contact Material: Copper Alloy
  • Contact Plating: Tin over Nickel
  • Life: 2000 Cycle
  • Maximum Operating Temperature: + 85 C
  • Minimum Operating Temperature: - 40 C
  • Mounting Angle: Straight
  • Mounting Style: PCB Mount
