Momentary Tactile Switch SPST-NO Top Actuated Through Hole (MJTP1141)

SKU: 17MOMMJTP1141

  • Sale
  • $0.35
  • Tactile Feedback
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Contact Rating @ Voltage: 0.05A @ 12VDC
  • Actuator Type: Standard
  • Mounting Type: Through Hole

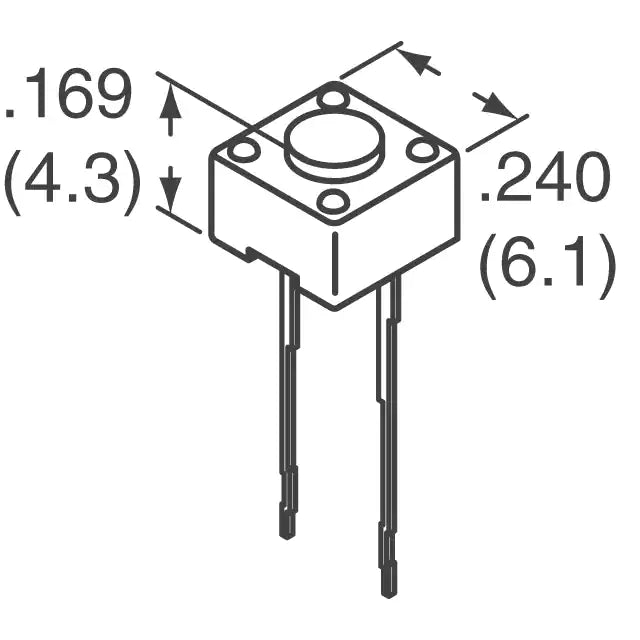

  • Actuator Height off PCB, Vertical: 4.30mm
  • Actuator Orientation: Top Actuated
  • Termination Style: PC Pin
  • Outline: 6.10mm x 6.10mm
  • Illumination: Non-Illuminated
  • Operating Force: 160gf
  • Operating Temperature: -20°C ~ 70°C
  • Actuator Material: Thermoplastic
  • Switch Travel: 0.25mm
  • Mechanical Life: 100,000 Cycles
