Weller

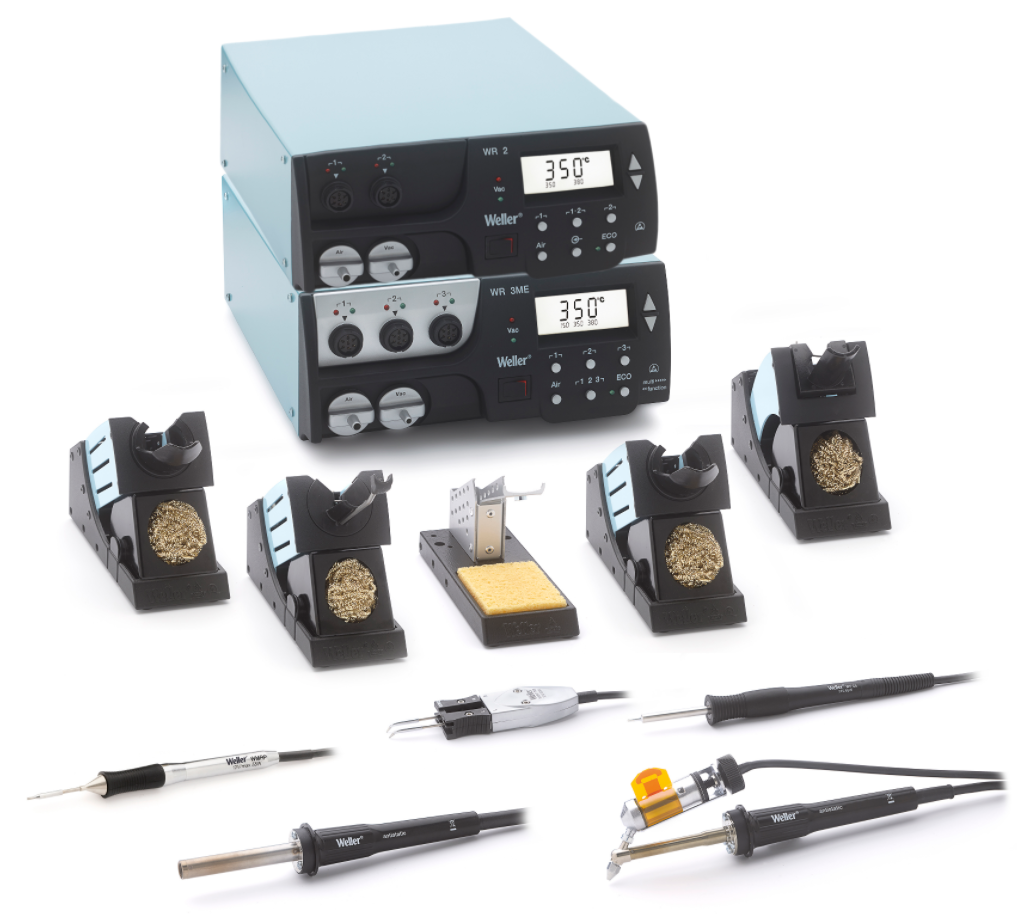

Weller WR5000M Hot Air Rework

SKU: 0603WR5000M

  • Sale
  • Regular price $3,910.00


5-channel, hot air, desoldering, soldering rework system (700 W)
The WR5000M is a 120V 700W five channel digital conductive / connective rework system is self-contained multi-channel rework stations. Independent tool channels with automatic tool recognition. Simultaneous use of multiple tools. Self contained vacuum and air. Programmable process control through special function menus. Continuous productivity with no end of cycle hot air cool down time. ECO button for sleep mode. Weller micro-tools, WMRP and WMRT are not compatible.

  • Application flexibility with up to 19 tool options (WR3ME only)
  • 700 watts of power over 5 independently-controlled channels
  • Note: Not applicable with WRK kit or WVP vacuum
  • Specified tips included
  • ECO button for "Sleep Mode"
  • PC Connectivity and data logging software included (WR3ME only)

Technical Specs

  • Max. Hot air flow rate l / min (depends on tool): 15 l / min
  • Channels: 3
  • Max. Vacuum: .7 bar; 20.7 inHg
  • Voltage: 120 V
  • Power: 700 W
  • Temperature range (depends on tool) ° C: 93-500
  • Temperature range (depends on tool) ° F: 200-850
  • Temperature stability ° C: ± 2 ° C
  • Temperature stability ° F: ± 4 ° F
  • Temperature accuracy ° F: ± 17 ° F
  • Temperature accuracy ° C: ± 9 ° C
  • WT compatible: on
  • ESD safe: on
  • Equipotential bonding: on
  • Vacuum: 0.7 bar, max
  • Weight (approx.) In kg: 7.3
  • Dimensions L x W x H (inches): 11.02 x 9.45 x 4.06
  • Capacity l / min: 18th
  • Overcurrent release: 2 A
  • Dimensions L x W x H (mm): 280 x 240 x 103
